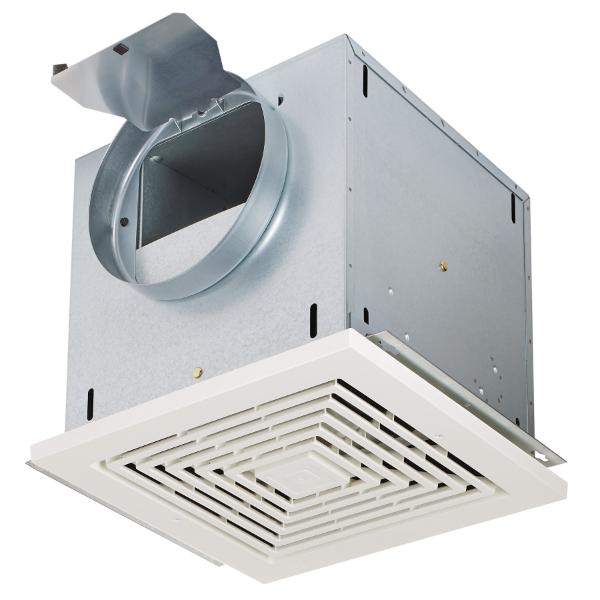

BROAN NUTONE L200E High Capacity Ceiling Mount Ventilation Fan, 230 CFM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€275.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Fan |
| Discharge Direction | Horizontal And Vertical |
| Duct Diameter | 8" |
| Duct Shape | Round |
| Exhaust Airflow @ 0.000 In Sp | 253/267 CFM |
| Exhaust Airflow @ 0.100 In Sp | 233/246 CFM |
| Exhaust Airflow @ 0.250 In Sp | 202/214 CFM |
| For Cut-out Length | 12 1/4" |
| For Cut-out Width | 12 1/4" |
| Grille Color | White |
| Grille Length | 14" |
| Grille Material | Plastic |
| Grille Width | 14" |
| Housing Material | Galvanized Steel |
| Includes | 8-Way Adjustable Mounting Brackets |
| Maximum Airflow | 230 CFM |
| Maximum Noise Level | 1.3 sones |
| Motor Speed | 1031/1063 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Voltage | 120V AC |
| Noise Level @ 0.100 In Sp @ 5 Ft | 1.3 sones |
| Number Of Speeds | Variable |
| Overall Depth | 12 1/4" |
| Overall Height | 11 3/4" |
| Overall Width | 12 1/4" |
| Product Datasheet | broan-nutone-l200e.pdf |
| Profile Height Family | Low |
Shipping Info:
| Ship weight (kg) | 8.6 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 31.12 |
| Country of Origin | US |
