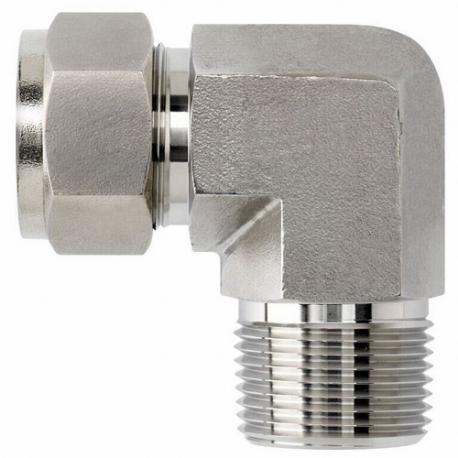

BRENNAN INDUSTRIES N2501-04-02-SS Male NPT 90 Deg. Elbow, 316 Stainless Steel, Compression x MNPT, 1/4 Inch Size Tube OD
Item: CP2MYXModel: N2501-04-02-SSCross Ref: 798CC8
7 In Stock
Ships within 2 days via
10.00% off
€37.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | 90 Degree Elbow |
| Application | Gases, Hydraulic, Pneumatic |
| Compatible Fitting Brands | Parker A Lok, Swagelok |
| Compatible Tube Hardness | RB 75 To 80 |
| Compatible Tube Wall Thickness | 0.028" |
| Fits Brand | Parker A-Lok, Swagelok |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Pipe Size | 1/8" |
| Hex Size | 14 mm |
| Length | 1" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 4020 psi |
| Max. Operating Temp. | 1200°F |
| Mfr. Series | Brennan Instrumentation Series |
| Min. Operating Temp. | -20°F |
| Overall Length | 1" |
| Resistance Properties | Corrosion Resistant, Thermal Resistant, Vibration Resistant |
| Series | BRENNAN INSTRUMENTATION Series |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | 90° Elbow |
| System Of Measurement | Imperial/Metric |
| Thread Size B | 1/8"-27 |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Max. Operating Pressure | Max. Operating Temp. | Hex Size | Specific Fitting Shape | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Thread Size B | Compatible Tube Wall Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| N6801-06-08-NWO-SS | 3326 psi | 400°F | 17 mm, 22 mm | 90° Elbow | 3/8" | 1/2" | 3/4"-16 | 0.035" | €125.21 | |
| N6801-16-16-NWO-SS | 3146 psi | 400°F | 35 mm, 38 mm | 90° Elbow | 1" | 1" | 1 5/16"-12 | 0.083" | €485.10 | |
| N6802-16-16-NWO-SS | 3146 psi | 400°F | 1.5 mm | 90° Elbow | 1" | - | 1 5/16"-12 | 0.083" | €415.47 | |
| N6801-06-04-NWO-SS | 3326 psi | 400°F | - | Elbow | 3/8" | 1/4" | 7/16"-20 | - | €95.47 | |
| N6801-12-12-NWO-SS | 2436 psi | 400°F | 28 1/2 mm, 32 mm | 90° Elbow | 3/4" | 3/4" | 1 1/16"-12 | 0.062" | €256.97 | |
| N6801-10-10-NWO-SS | 2951 psi | 400°F | 24 mm, 25 mm | 90° Elbow | 5/8" | 5/8" | 7/8"-14 | 0.052" | €219.35 | |
| N6802-08-08-NWO-SS | 2611 psi | 400°F | 0.87 mm | 90° Elbow | 1/2" | - | 3/4"-16 | 0.041" | €98.63 |
