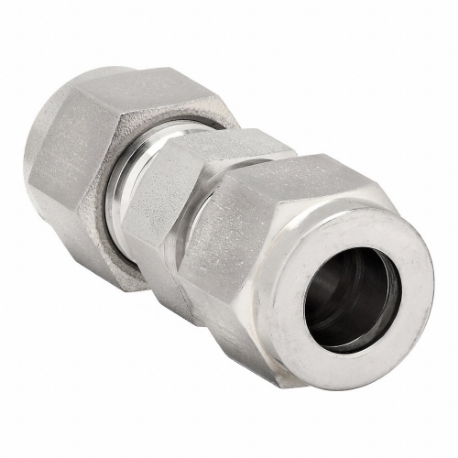

BRENNAN INDUSTRIES N2403-06-06-SS Instrumentation Fittings, 316 Stainless Steel, Compression x Compression
Item: CP2NCYModel: N2403-06-06-SSCross Ref: 782KC2
7 In Stock
Ships within 2 days via
13.00% off
€43.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Gases, Hydraulic Fluid |
| Compatible Fitting Brands | Parker A-Lok, Swagelok |
| Compatible Tube Wall Thickness | 0.035" |
| Fits Brand | Parker A-Lok, Swagelok |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side B Connection Type | Compression |
| Hex Size | 43/64" |
| Length | 1.781" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 3326 psi |
| Max. Operating Temp. | 1200°F |
| Mfr. Series | Brennan Instrumentation Series |
| Overall Length | 1 25/32" |
| Resistance Properties | Vibration Resistant |
| Series | BRENNAN INSTRUMENTATION Series |
| Specific Fitting Shape | Straight |
| System Of Measurement | Imperial |
| Thread Size A | 9/16"-18 |
| Thread Size B | 9/16"-18 |
| Tube Fitting Material | Stainless Steel |
| Tube Size | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Material | Hex Size | Max. Operating Pressure | Fitting Side A Tube Outside Dia. | Fitting Side B Tube Outside Dia. | Compatible Fitting Brands | Compatible Tube Wall Thickness | Thread Size B | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| N2403-04-04-SS | Stainless Steel | 9/16" | 4037 psi | 1/4" | 1/4" | Parker A-Lok, Swagelok | 0.028" | 7/16"-20 | €35.75 | |
| N2403-10-10-SS | Stainless Steel | 63/64" | 2951 psi | 5/8" | 5/8" | Parker A-Lok, Swagelok | 0.052" | 7/8"-20 | €103.07 | |
| N2403-12-12-SS | Stainless Steel | 1 1/8" | 2436 psi | 3/4" | 3/4" | Parker A-Lok, Swagelok | 0.062" | 1"-20 | €137.41 | |
| N2403-16-16-SS | Stainless Steel | 1 1/2" | 3146 psi | 1" | 1" | Parker A-Lok, Swagelok | 0.083" | 1 5/16"-20 | €202.97 | |
| N2403-08-08-SS | Stainless Steel | 7/8" | 2611 psi | 1/2" | 1/2" | Parker A-Lok, Swagelok | 0.041" | 3/4"-16 | €73.54 | |
| N2403-02-02-SS | Stainless Steel | 7/16" | 8565 psi | 1/8" | 1/8" | Parker A-Lok, Swagelok | 0.028" | 5/16"-20 | €34.23 | |
| N2403-05-02-SS | Stainless Steel | 14 mm, 16 mm | 4037 psi | 5/16" | 1/8" | Parker A Lok, Swagelok | 0.035" | - | €42.02 |
