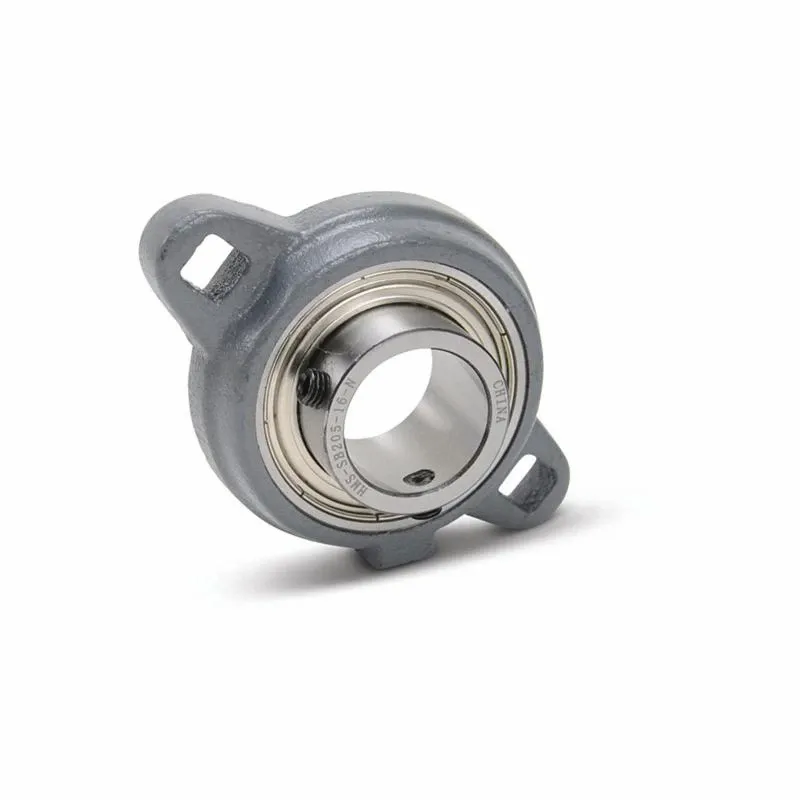

BOSTON GEAR XL2-1 Flange-Mount Ball Bearing Unit
Get it by Tuesday, Sep 1
€121.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Bore Dia. | 1" |
| Duty Type | Intermediate Duty |
| Finish, Coating | Uncoated |
| Length Through Bore | 1 1/8" |
| Max. Speed | 5000 RPM |
| Operating Temp. | 225°F |
| Replacement Bearing | NBG15-1 |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Country of Origin | US |
Product Variants
| Model | Bore Dia. | Housing Material | Overall Width | Replacement Bearing | Duty Type | Length Through Bore | Bolt Circle Dia. | Housing Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SF-5/8 | 5/8" | Cast Iron | 1.26562" | NBG25-5/8 | - | 1 17/64" | 3" | 1 1/16" | €125.99 | |
| PS2-15/16 | 15/16" | Pressed Steel | 1.0938" | NBG15-15/16 | Intermediate Duty | 1 1/16" , 1.0625" | 3" | 0.6719" | €66.65 | |
| XL2-7/8 | 7/8" | Cast Ductile | 1 1/8" | NBG15-7/8 | Intermediate Duty | 1 1/16" , 1.0625" | 3" | 3/4" | €123.26 | |
| PS3-1/2 | 1/2" | Pressed Steel | 0.9061" | NBG15-1/2 | Intermediate Duty | - | 2 1/2" | 0.563" | €55.00 | |
| XL3-1 | - | Cast Ductile | 1 1/8" | NBG15-1 | Intermediate Duty | 1 1/16" , 1.0625" | 3" | 3/4" | €123.41 | |
| PS3-1 | - | Pressed Steel | 1 3/32" | NBG15-1 | Intermediate Duty | 1 1/16" , 1.0625" | 3" | 0.6719" | €68.96 | |
| SF-1 | 1" | - | - | NBG25-1 | Standard Duty | 1 9/16" | - | - | €160.52 |
