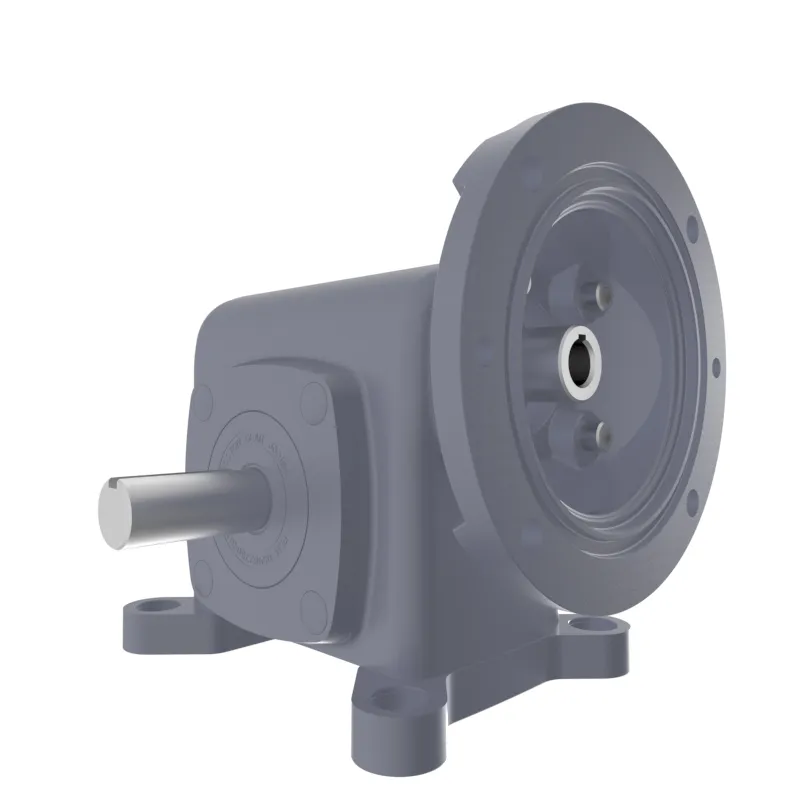

BOSTON GEAR SSF721B-20K-B5-GS1 Reducer, Quill Input Solid Output Shaft Left Worm Gear
Get it by Tuesday, Mar 3
€2,545.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | B Horizontal Base-Bottom Mount |
| Fan Cooled | No |
| Input Power | 1.4 hp |
| Input Style | F Standard Quill Flange |
| Motor Frame Size | B5-56C |
| Motor Hp | 1 hp |
| Output Bore/shaft Diameter | 1" |
| Output Shaft | G Solid Left Output |
| Output Shaft Projecting | G Left |
| Output Speed | 87.5 RPM |
| Output Torque | 892 lbs.-in. |
| Pre-lubricated | Yes |
| Rated Efficiency | 88% |
| Ratio | 20:1 |
| Recommended Lubrication | Klubersynth UH1 6-460 |
| Reducer Material/paint | Stainless Steel |
| Reduction Type | Single Reduction Right Angle |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Overhung Load | Max. Input Hp | Motor Frame Designation | Base To Shaft Center | Gear Ratio | Worm Center Distance | Output Shaft Dia. | Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SSF718-10K-B5-GS1 | 600 lbs. | 1 hp | 56C | 2.06" | 101 | 1 3/4" | 7/8" | CW/CCW | €3,078.99 | |
| SSF718-20K-B5-GS1 | 600 lbs. | 3/4 hp | - | - | - | 1 3/4" | 7/8" | Forward, Reversible | €3,052.03 | |
| SSF718-30K-B5-GS1 | 600 lbs. | 1/2 hp | 56C | 2.06" | 30:1 | 1 3/4" | 7/8" | CW/CCW | €3,263.84 | |
| SSF718-40K-B5-GS1 | 600 lbs. | 3/10 hp | 56C | 2.06" | 40:1 | 1 3/4" | 7/8" | CW/CCW | €3,263.84 | |
| SSF718-50K-B5-GS1 | 600 lbs. | 3/10 hp | 56C | 2.06" | 501 | - | 7/8" | CW/CCW | €3,419.10 | |
| SSF718-60K-B5-GS1 | 600 lbs. | 3/10 hp | - | - | - | 1 3/4" | 7/8" | Forward, Reversible | €3,246.94 | |
| SSF721-10K-B7-GS1 | 700 lbs. | 1 hp | - | - | - | 2.06" | 1" | Forward, Reversible | €3,917.35 |
