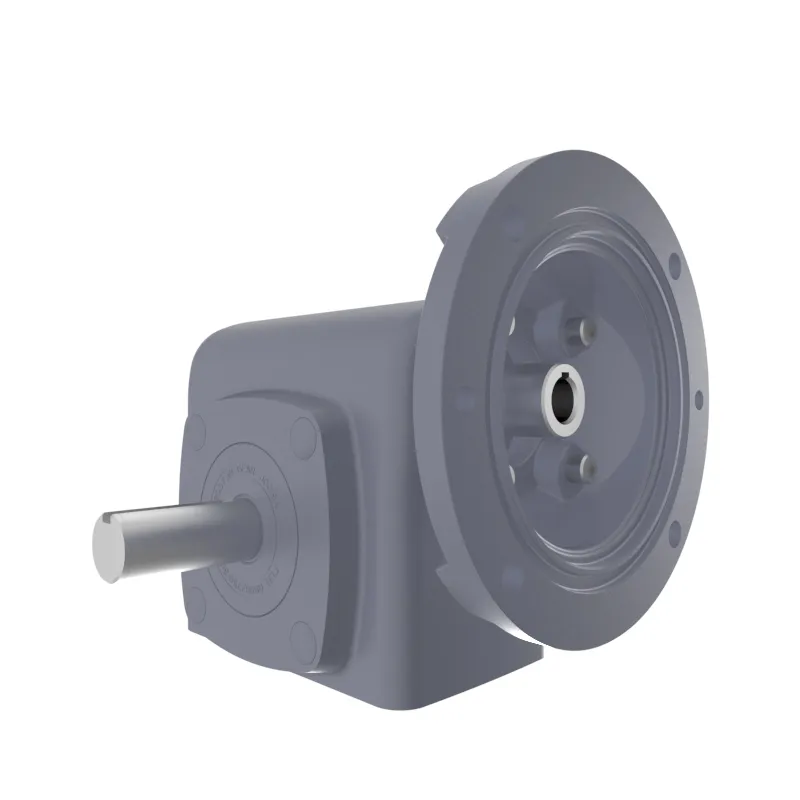

BOSTON GEAR SSF718-5K-B5-GS1 Reducer, Quill Input Solid Output Shaft Left Worm Gear
Get it by Monday, Dec 22
€1,939.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | No Base |
| Center Distance | 1 3/4" |
| Fan Cooled | No |
| Input Style | F Standard Quill Flange |
| Lubrication | Klubersynth UH1 6-460 |
| Mounting Position | M1 |
| Output Shaft Dia. | 7/8" |
| Output Type | Solid |
| Pre-lubricated | Yes |
| Reducer Material | Stainless Steel |
| Reduction Type | Single Reduction Right Angle |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Overhung Load | Max. Input Hp | Motor Frame Designation | Base To Shaft Center | Gear Ratio | Worm Center Distance | Output Shaft Dia. | Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SSF718-10K-B5-GS1 | 600 lbs. | 1 hp | 56C | 2.06" | 101 | 1 3/4" | 7/8" | CW/CCW | €3,078.99 | |
| SSF718-20K-B5-GS1 | 600 lbs. | 3/4 hp | - | - | - | 1 3/4" | 7/8" | Forward, Reversible | €3,052.03 | |
| SSF718-30K-B5-GS1 | 600 lbs. | 1/2 hp | 56C | 2.06" | 30:1 | 1 3/4" | 7/8" | CW/CCW | €3,263.84 | |
| SSF718-40K-B5-GS1 | 600 lbs. | 3/10 hp | 56C | 2.06" | 40:1 | 1 3/4" | 7/8" | CW/CCW | €3,263.84 | |
| SSF718-50K-B5-GS1 | 600 lbs. | 3/10 hp | 56C | 2.06" | 501 | - | 7/8" | CW/CCW | €3,419.10 | |
| SSF718-60K-B5-GS1 | 600 lbs. | 3/10 hp | - | - | - | 1 3/4" | 7/8" | Forward, Reversible | €3,246.94 | |
| SSF721-10K-B7-GS1 | 700 lbs. | 1 hp | - | - | - | 2.06" | 1" | Forward, Reversible | €3,917.35 |
