BOSTON GEAR NF20 B Gear Spur 10 Pitch
Item: AB2CMCModel: NF20 BCross Ref: 1L977
7 In Stock
Ships within 2 days via
10.00% off
€124.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 3/4" |
| Diametral Pitch | 10 |
| Face Width | 1" |
| For Use With | 1L903, 1L904 |
| Function | Transmitting Motion And Power Between Parallel Shafts, Minimizes Backlash To Perform Smooth And Quiet Operation, Close Concentricity Between Bore, Pitch Diameter And Outside Diameter Facilitates Reboring Modifications |
| Hub Design | Hub Without Set Screw |
| Hub Dia. | 1.61" |
| Hub Diameter | 1.62" |
| Hub Projection | 0.63" |
| Hub Projection (in.) | 0.63 |
| Keyway | No |
| Material | Steel |
| Number Of Teeth | 20 |
| Outside Dia. | 2 1/5" |
| Outside Diameter | 2.2" |
| Overall Length | 1.63" |
| Pitch | 10 |
| Pitch Dia. | 2" |
| Pressure Angle | 14.5° |
| Pressure Angle (deg.) | 14 1/2 |
| Setscrew | Not Included |
| Standards | Agma |
| System Of Measurement | Inch |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 4.14 |
| Ship width (cm) | 10.41 |
| HS code | 8483409000 |
| Country of Origin | US |
Product Variants
| Model | Diametral Pitch | Bore Dia. | Pitch Dia. | Hub Dia. | Hub Projection | Number Of Teeth | Outside Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NF12 B | 10 | 5/8" | 1 1/5" | 23/25" | 0.63" | 12 | 1 2/5" | 1.63" | €96.26 | |
| NF14 B | 10 | 5/8" | 1 2/5" | 1.02" | 0.63" | 14 | 1 3/5" | 1.63" | €42.01 | |
| NF16 B | 10 | 3/4" | 1 3/5" | 1 1/5" | 0.63" | 16 | 1 4/5" | 1.63" | €121.90 | |
| NF18 B | 10 | 3/4" | 1 4/5" | 1.41" | 0.63" | 18 | 2" | 1.63" | €130.24 | |
| NF24 B | 10 | 3/4" | 2 2/5" | 2.02" | 0.63" | 24 | 2 3/5" | 1.63" | €162.82 | |
| NF30A | 10 | 3/4" | 3" | 2.02" | 0.88" | 30 | 3 1/5" | 1 22/25" | €219.87 | |

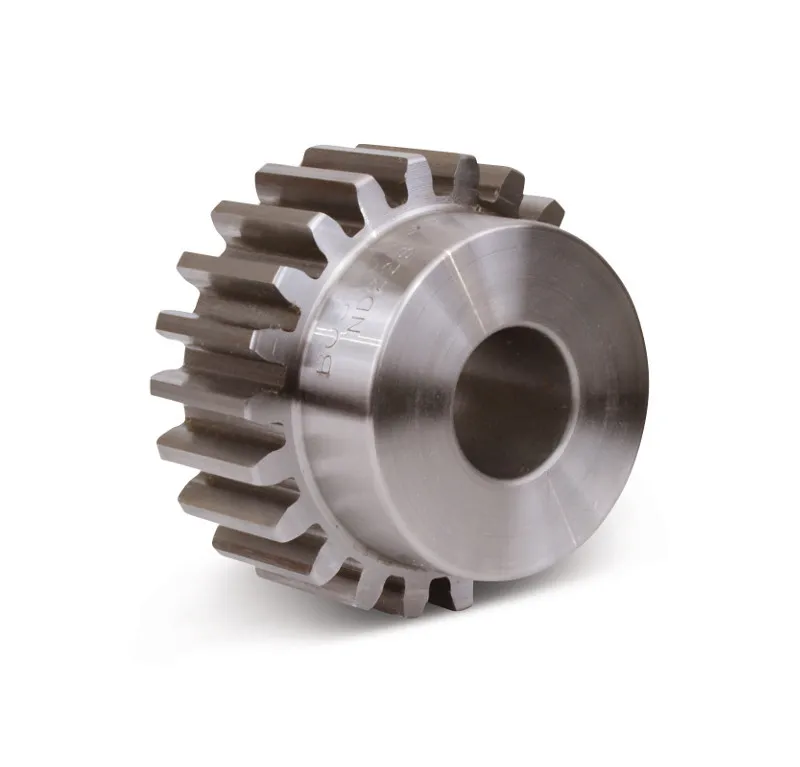

| NF11B | 10" | 5/8" | 1 1/5" | 23/25" | 0.62" | - | - | 1.62" | €85.78 |
