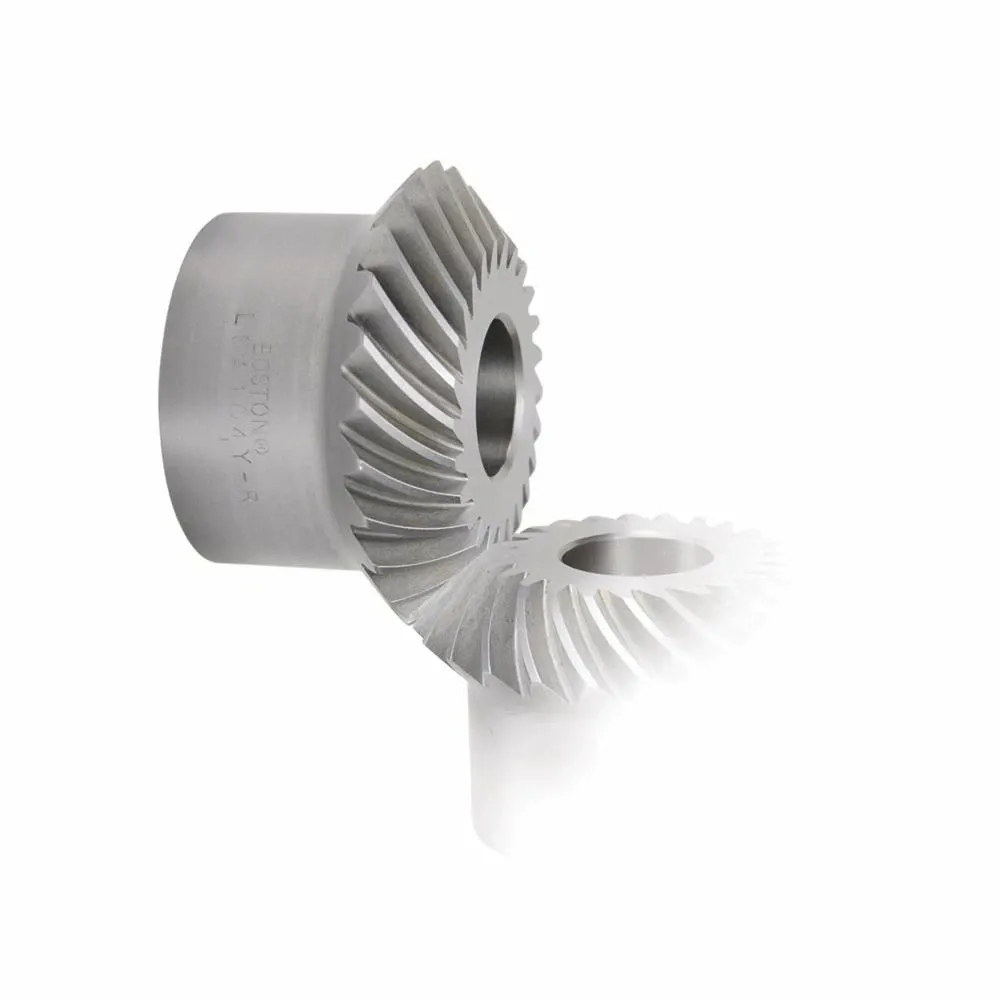

BOSTON GEAR LSA118Y L Finished Bore Right Hand Spiral Miter Gear
Get it by Tuesday, Sep 1
€578.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Bore Size | 1 1/4" , 1.25" |
| Diametral Pitch | 6 |
| Hardened Teeth | Without Hardened Teeth |
| Hub Dia. | 3" |
| Keyway | Without Keyway, Without Setscrew |
| Length Through Bore | 2.317" |
| Material | Steel |
| Mounting Distance | 3 5/8" |
| No. Of Teeth | 24 |
| Outside Dia. | 4.22" |
| Pitch Dia. | 4" |
| Pressure Angle | 20° |
| Spiral Direction | Left Hand |
| Torque @ 1200 Rpm | 388 lbs.-in. |
| Torque @ 1800 Rpm | 350 Lbs.-In. , 350 Lbs./In. |
| Torque @ 200 Rpm | 535 lbs.-in. |
| Torque @ 300 Rpm | 504 lbs.-in. |
| Torque @ 600 Rpm | 451 lbs.-in. |
| Torque @ 900 Rpm | 413 Lbs.-In. , 413 Lbs./In. |
Shipping Info:
| Ship weight (kg) | 2.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Spiral Direction | Pitch Dia. | Material | Pressure Angle | No. Of Teeth | Hub Dia. | Diametral Pitch | Length Through Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LSA118Y R | Right Hand | 4" | Steel | 20° | 24 | 3" | 6 | 2.317" | €578.14 |
