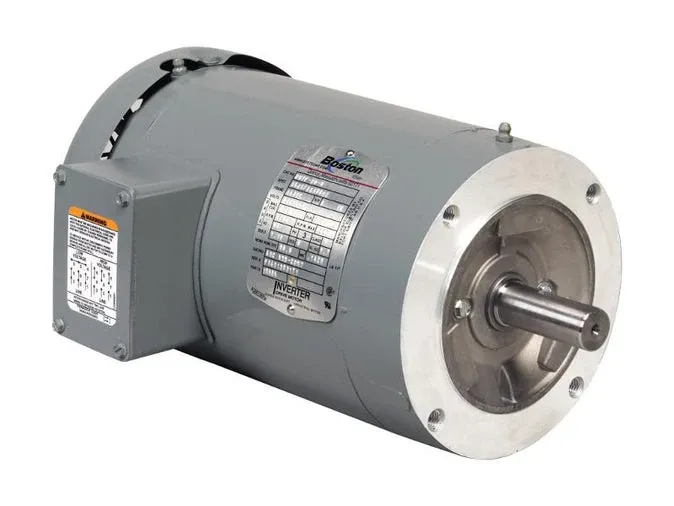

BOSTON GEAR KUTF-B C-Face AC Electric Motor, 230/460V3
Get it by Tuesday, Aug 18
€868.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Application | Speed Reducers |
| Brake Feature | No |
| Dimensions C | 13.38" |
| Efficiency Group | Standard Efficient |
| Electrical Phase | Three Phase |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 145TC |
| Frame Size | 140tc |
| Frequency | 60 Hz |
| Full Load Amps | 3.1A |
| Full Load Efficiency | 82.5% |
| Full Load Speed | 1725 RPM |
| Hp | 2 hp |
| Insulation Class | Class B |
| Motor Application | General Purpose |
| Mounting | C Face Less Base , C-Face-Less Base |
| Mounting Type | C Face/Footless |
| Nema Design Class | B Class |
| Phase | Three Phase |
| Pole | 4 |
| Shaft Dia. | 5/8" |
| Speed | 1800 RPM |
| Voltage | 208-230/460V, 460/230/208V |
| Voltage Rating | 208-230/460V , 460/230/208V |
| Washdown Duty | No |
Shipping Info:
| Ship weight (kg) | 17.55 |
Product Variants
| Product | Model | Full Load Amps | Phase | Hp | Voltage | Mounting Type | Frame | Insulation Class | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DUTF-W | - | - | - | - | - | - | - | - | €510.56 | RFQ
|
 |
ADRTF-B | 2.3A | 1 , Single Phase | 1/4 hp | 115/230V | - | - | - | - | €684.07 | |
 |
AERTF-B | 3.1A | 1 , Single Phase | 1/3 hp | 115/230V | - | 56C | - | - | €757.59 | |
 |
ADUTF-B | 0.6A | 3 , Three Phase | 1/4 hp | 208-230/460V, 460/230/208V | - | - | - | - | €723.18 | |
 |
ACRTF-B | 1.9A | 1 , Single Phase | 1/6 hp | 115/230V | - | - | - | - | €666.13 | |
 |
ACUT-B | 0.55A | 3 , Three Phase | 1/6 hp | 208-230/460V, 460/230/208V | - | - | - | - | €735.29 | |
 |
AEUTF-B | 0.7A | 3 , Three Phase | 1/3 hp | 208-230/460V, 460/230/208V | - | - | - | - | €822.25 |
