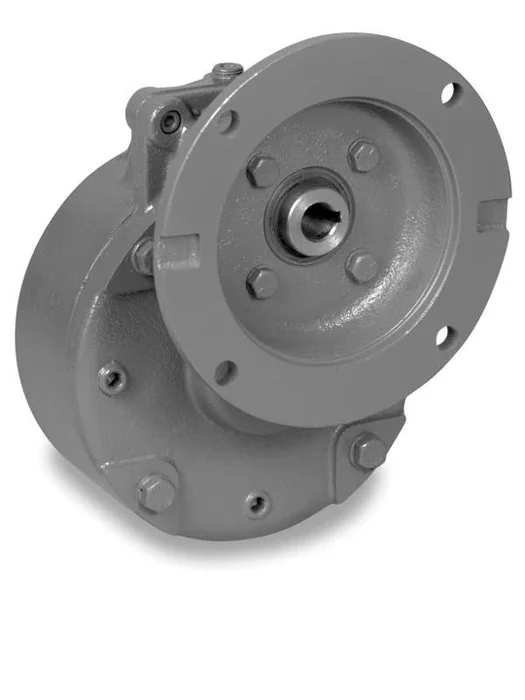

BOSTON GEAR HMF1-5K-B5-B5 Right Angle Helical/Spiral Bevel Speed Reducer
Get it by Tuesday, Apr 14
€1,073.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Fan Cooled | No |
| Fan Cooled Rating | No |
| Input Motor Hp | 1 hp |
| Input Power Rating | 1 1/20 hp |
| Input Style | F Standard Quill Flange |
| Input Type | F Standard Quill Flange |
| Lubrication | Klubersynth UH1 6-460 |
| Motor Frame Size | B556C |
| Output Shaft | Projecting Op |
| Output Speed | 350 RPM |
| Output Torque | 183 lbs.-in. |
| Output Torque Rating Range Min | 100 lbs.-in. |
| Output Torque Rating Range [max] | 349 lbs.-in. |
| Output Type | F Standard Quill Flange |
| Ratio | 5:1 |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
Product Variants
| Product | Model | output torque | ratio | reduction type | motor frame size | input style | output shaft | output type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
HMF3-4K-B9-B9 | 1258 lbs.-in. | 4:1 | - | B9180TC210C | F Standard Quill Flange | Projecting Op | F Standard Quill Flange | €1,557.53 | |
 |
HMF2-4K-B7-B7 | 962 lbs.-in. | 4:1 | - | B7140TC180C | F Standard Quill Flange | Projecting Op | F Standard Quill Flange | €1,288.40 | |
 |
HMF2-3K-B7-B7 | 944 lbs.-in. | 3:1 | - | B7140TC180C | F Standard Quill Flange | Projecting Op | F Standard Quill Flange | €1,288.40 | |
 |
HMF1-1.5K-B5-B5 | 172 lbs.-in. | 1.5:1 | - | B556C | F Standard Quill Flange | Projecting Op | F Standard Quill Flange | €1,073.57 | |
 |
HMF2-5K-B7-B5 | 884 lbs.-in. | 5:1 | - | B7140TC180C | F Standard Quill Flange | Projecting Op | F Standard Quill Flange | €1,288.40 | |
 |
HMF3-2K-B9-B9 | 1075 lbs.-in. | 2:1 | - | B9180TC210C | F Standard Quill Flange | Projecting Op | F Standard Quill Flange | €1,557.53 | |
 |
HMF3-3K-B9-B9 | 1299 lbs.-in. | 3:1 | - | B9180TC210C | F Standard Quill Flange | Projecting Op | F Standard Quill Flange | €1,557.53 |
