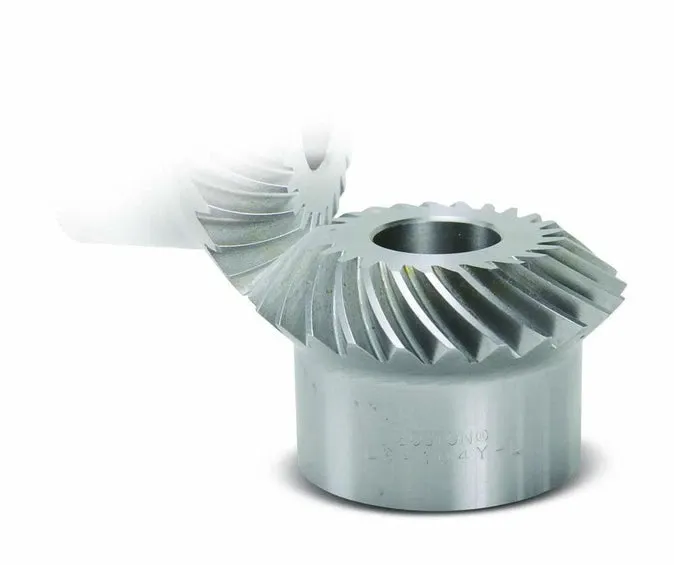

BOSTON GEAR HLSK122Y L Teeth Left Hand Hardened Steel Spiral Tooth Bevel Gear
Get it by Wednesday, Jul 15
€1,293.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Bore Size | 1 3/8" , 1.375" |
| Diametral Pitch | 5 |
| Finish | Hardened |
| Hardened Teeth | With Hardened Teeth |
| Hub Dia. | 3 1/2" |
| Keyway | With Keyway, Setscrew |
| Kwy/setscrew/other | With KWY, Setscrew |
| Length Through Bore | 3.005" |
| Material | Steel |
| Mounting Distance | 4 5/8" |
| No. Of Teeth | 25 |
| Outside Dia. | 5.26" |
| Pitch Dia. | 5" |
| Pressure Angle | 20° |
| Ratio | 1:1 |
| Spiral Angle | 20° |
| Spiral Direction | Left Hand |
| Spiral Tooth | Pressure Angle |
| Straight/spiral Tooth | With KWY, Setscrew |
| Torque @ 1200 Rpm | 1995 lbs.-in. |
| Torque @ 1800 Rpm | 1785 Lbs.-In. , 1785 Lbs./In. |
| Torque @ 200 Rpm | 2866 lbs.-in. |
| Torque @ 300 Rpm | 2751 lbs.-in. |
| Torque @ 600 Rpm | 2425 lbs.-in. |
| Torque @ 900 Rpm | 2100 Lbs.-In. , 2100 Lbs./In. |
Shipping Info:
| Ship weight (kg) | 3.83 |
| Country of Origin | US |
