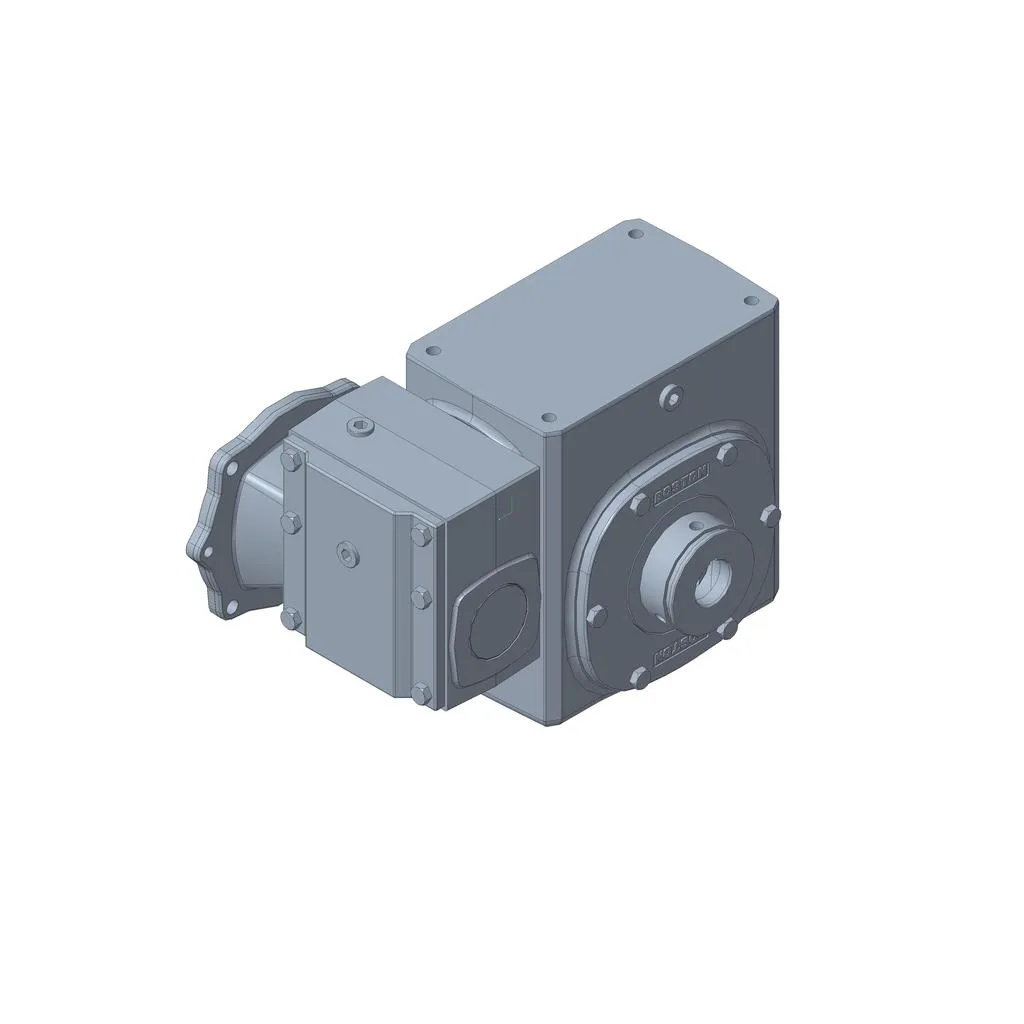

BOSTON GEAR HFWA730-150-B5-H-P20 Worm Gear Reducer, Input Flange
Get it by Tuesday, Dec 23
€4,256.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Mounting Attachment | No Base |
| Fan Cooled | No |
| Input Motor Hp | 0.75 hp At AGMA Service Class II |
| Input Power | 0.98 hp |
| Input Style | F Standard Quill Flange |
| Motor Frame Size | B5-56C |
| Motor Hp | 3/4 hp |
| Output Bore/shaft Diameter | 1.25" |
| Output Shaft | Hollow Output |
| Output Speed | 11.7 RPM |
| Output Torque | 3523 lbs.-in. |
| Pre-lubricated | No |
| Rated Efficiency | 66% |
| Ratio | 150:1 |
| Recommended Lubrication | Klubersynth UH1 6-460 |
| Reducer Material/paint | Cast Iron, Standard Paint |
| Reduction Type | Double Reduction Parallel Shaft (Wa/Wb) |
| Style | Parallel |
Shipping Info:
| Ship weight (kg) | 37.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
