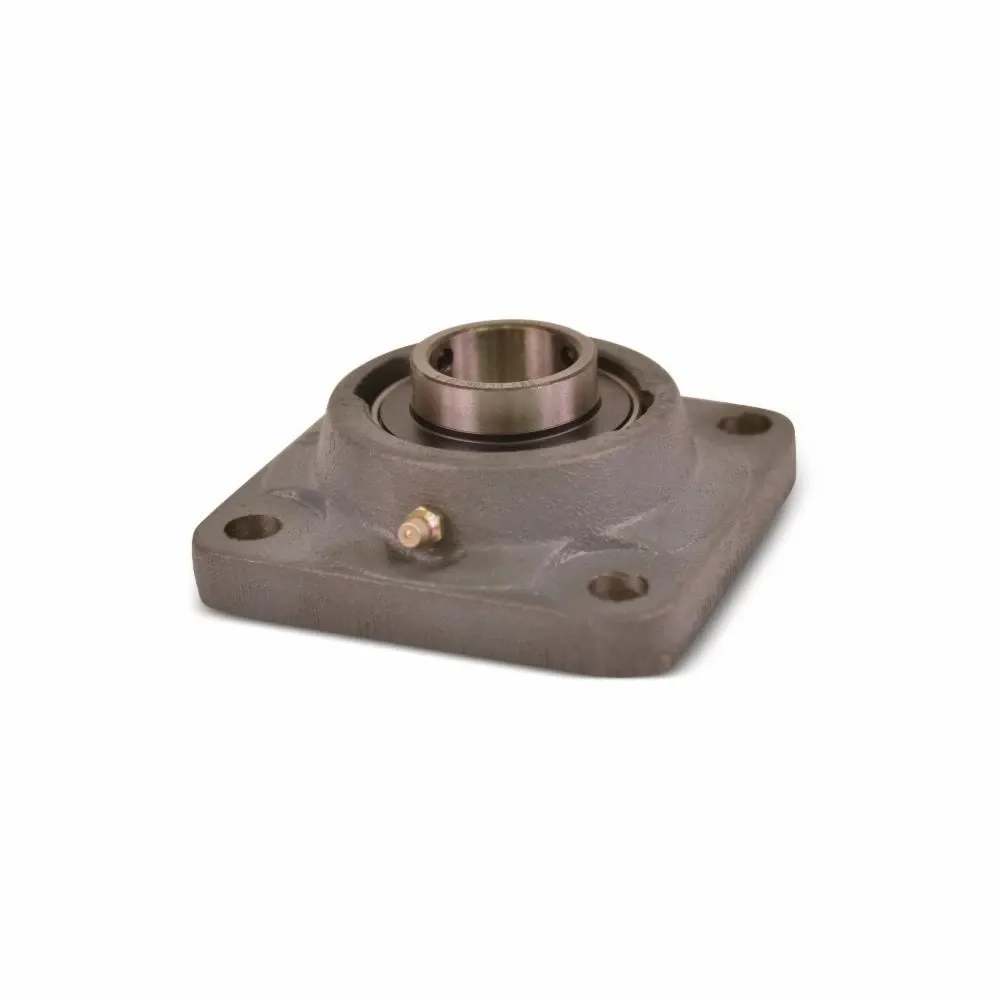

BOSTON GEAR 5F 1 Flanged Units, Standard Duty, Eccentric Locking Collar
Get it by Thursday, Dec 25
€153.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | 4-Bolt Flange Bearing |
| Bolt Center To Center Length | 2 3/4" |
| Bore Dia. | 1" |
| Capacity | 455 lbs. |
| Duty Type | Standard Duty |
| Finish | Uncoated |
| Finish Coating | Uncoated |
| Flange Mounting Type | 4 Bolt |
| Locking Device | Eccentric Collar |
| Material | Cast Iron |
| Max. Speed | 5000 RPM |
| Overall Depth | 1 27/32" |
| Overall Dia. | 3 3/4" |
| Overall Height | 3 3/4" |
| Overall Length | 3 3/4" |
| Product Datasheet | boston-gear-10f-1-15-16.pdf |
| Product Type | Standard Duty |
| Seal Material | Synthetic |
| Series | F Series |
| Temp. Rating | 225°F |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Bore Dia. | Overall Length | Overall Height | Duty Type | Locking Device | Max. Speed | Bolt Center To Center Length | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 11F 2 | - | - | - | Standard | Eccentric Locking Collar | - | - | - | €386.00 | |
| 9F 1-5/8 | 1 5/8" | 5 3/8" | 5 3/8" | Standard Duty | Eccentric Collar | 3000 RPM | 4 1/8" | - | €291.89 | |
| 10F 1-15/16 | - | - | - | Standard | Eccentric Locking Collar | - | - | - | €345.79 | |
| 11F 2-3/16 | - | - | - | Standard | Eccentric Locking Collar | - | - | - | €389.15 | |
| 6F 1-1/4S | - | - | - | Standard | Eccentric Locking Collar | - | - | - | €186.56 | |
| 6F 1-1/8 | - | - | - | Standard Duty | - | - | - | - | €191.23 | |
| 7F 1-7/16 | 1 7/16" | 4 5/8" | 4 5/8" | Standard Duty | Eccentric Collar | 4000 RPM | 3 5/8" | - | €237.58 |
