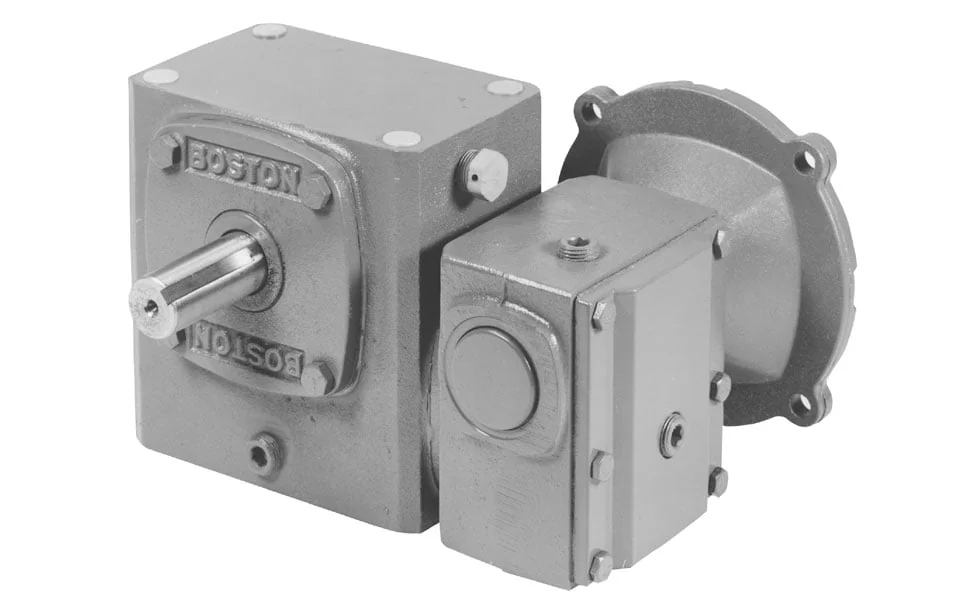

BOSTON GEAR 309B-10K-G Reducer, Solid Input Shaft Solid Output Shaft Double Worm
Item: AK7GVJModel: 309B-10K-G
7 In Stock
Ships within 2 days via
€1,230.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reducer |
| Base To Centerline Of Input Shaft | 2 1/2" |
| Base To Centerline Of Output Shaft | 1 9/16" |
| Bolt Center Length | 2 3/4" |
| Bolt Center Width | 2 3/4" |
| Box Height | 3 15/32" |
| Box Length | 2 3/4" |
| Box Width | 2 3/4" |
| Center Distance | 0.94" |
| Family Name | Std Unit |
| Fan Cooled | No |
| Housing Material | Cast Iron |
| Hp @ Rpm | 1/8 hp @ 1800 RPM |
| Input (shaft Or Bore) Size | 5/16" |
| Input Configuration | Shaft Input |
| Input Hp @ Rpm | 0.13 hp @ 1750 RPM |
| Lubrication | Mobil Shc634 Synthetic |
| Max. Overhung Load @ 1750 Rpm | 25 lbs.-in. |
| Max. Thrust Load @ 1150 Rpm | 25 lbs.-in. |
| Motor Application | General Purpose |
| Output (shaft Or Bore) Size | 1/2" |
| Output Configuration | Right Output |
| Output Rpm @ 1750 Rpm Input | 175 RPM |
| Ratio | 10:1 |
| Reduction Type | Single Reduction |
| Shaft Assembly Code | G |
| Torque Out @ 1750 Rpm | 25 lbs.-in. |
| Use With | 309 |
| Washdown Duty | No |
| Worm Position | Top |
Shipping Info:
| Ship weight (kg) | 4.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
