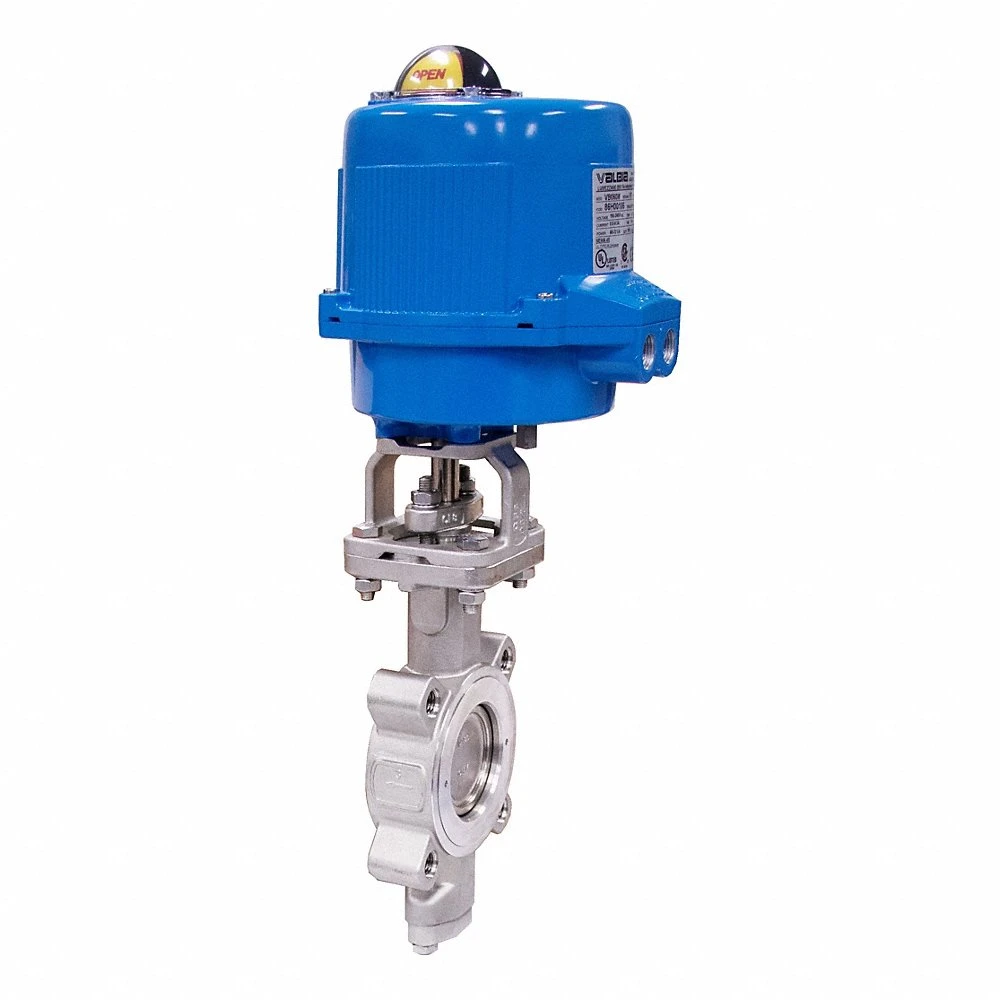

BONOMI ME910100312 Electrically Actuated Butterfly Valve, Stainless Steel, 100 to 240V AC, Standards CSA UL
Get it by Tuesday, Aug 25
13.00% off
€8,255.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Butterfly Valve |
| 3 A Certified | Not Rated |
| Actuator Feature | Auxiliary Limit Switch, Torque Limiter |
| Actuator Input Control Signal | Manual |
| Connection Type | Lug |
| Disc Material | Stainless Steel |
| Fail Safe Position | Fail Closed |
| For Media | Gas, Oil, Steam, Water |
| Liner Material | RPTFE |
| Max. Operating Pressure | 275 psi |
| Max. Pressure Steam | 150 psi |
| Media Temp. | -20°F to +475°F |
| Nema Enclosure Rating | NEMA 4 |
| No. Of Flange Bolt Holes | 12 |
| Nominal Valve Size | 12" |
| Seal Material | FKM |
| Valve Deactivated State | Normally Closed |
| Voltage | 100-240V AC |
Shipping Info:
| Ship weight (kg) | 87.57 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 81.28 |
