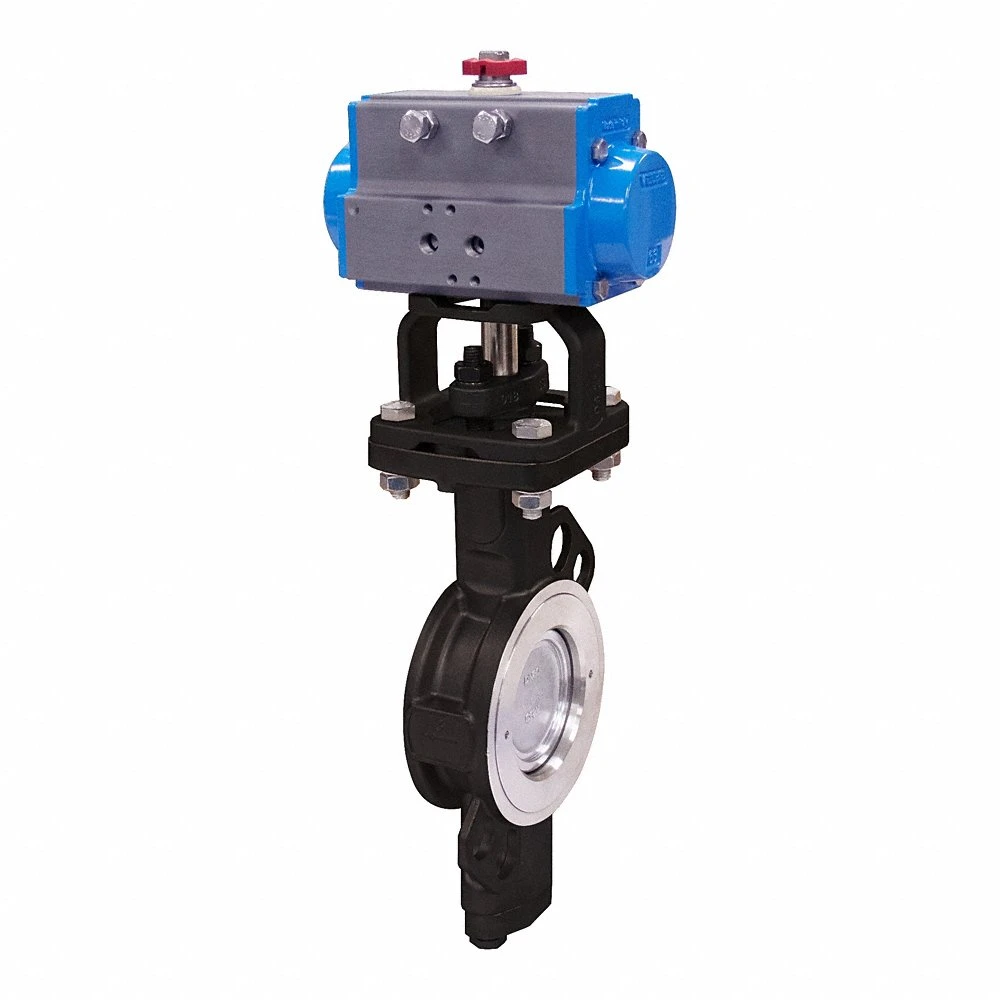

BONOMI DA81004C2 Pneumatically Actuated Butterfly Valve, 116 PSI Actuator Air Pressure-Max, Air to Air
Get it by Monday, Aug 24
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€1,093.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Butterfly Valve |
| 3 A Certified | Not Rated |
| Actuator Operation | Air To Air |
| Body Material | Carbon Steel |
| Connection Type | Wafer |
| Disc Material | Stainless Steel |
| Fail Safe Position | Fail Closed |
| For Media | Gas, Oil, Water |
| Liner Material | PTFE |
| Max. Operating Pressure | 285 psi |
| Max. Pressure Steam | 150 psi |
| Media Temp. | -20°F to +475°F |
| Nominal Valve Size | 4" |
| Pilot Solenoid Voltage | 24V DC |
| Seal Material | FKM |
| Vacuum Service Rating | Not Rated |
| Valve Deactivated State | Normally Closed |
Shipping Info:
| Ship weight (kg) | 9.71 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 30.48 |
