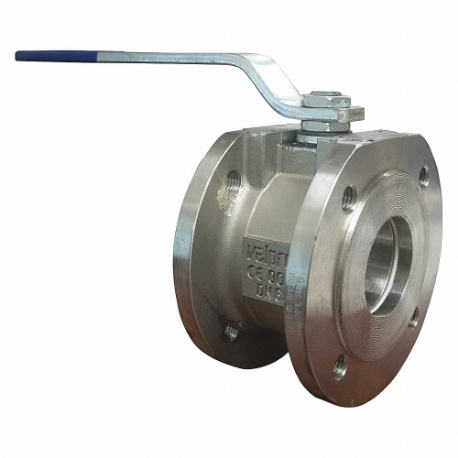

BONOMI 720016-3 Ball Valve, 3 Inch Pipe, 3 Inch Tube, 280 PSI CWP, -4-366 Deg F, Flanged | CN9VHF 483M25

BONOMI 720016-3 Ball Valve, 3 Inch Pipe, 3 Inch Tube, 280 PSI CWP, -4-366 Deg F, Flanged

Item: CN9VHFModel: 720016-3 Cross Ref: 483M25
Check Availability
In Stock

Get it by Monday, Dec 22

€1,868.03
10.00% off
€1,681.23 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Ball Valve
3-a Compliance Not Rated
Ansi Flange Class Class 150
Ball Material Stainless Steel
Ball Material Grade Grade 316
Ball Port Style Full Port
Body Material Stainless Steel
Body Seal Material FKM
Body Style Two Way
Coefficient Of Volume (cv) 1009.48
Connection Size - Side 1 3"
Connection Size - Side 2 3"
Connection Type Flanged
Connection Type - Side 1 Flange
Connection Type - Side 2 Flange
For Media Water
Handle Locking Lever
Handle - Locking Locking
Handle Color Blue
Handle Height 5.45"
Handle Length 12.65"
Handle Material Cast Iron, Steel
Handle Material Grade Grade 351
Handle Type Lever
Hose I.d. 3"
Included Mounting Iso 5211 Actuator Mounting Pad
Max. Media Temperature 366°F
Max. Pressure 280 psi
Max. Pressure (combustible Gas) Not Rated
Max. Pressure (cwp) 280 psi
Max. Pressure (steam) 100 psi
Max. Steam Pressure 100 psi WSP
Media Temperature Range -4°F to +366°F
Min. Media Temperature -4°F
Nominal Valve Size 3"
Overall Length 4.8"
Pipe Size 3"
Port Full
Seal Material FKM
Seat Material RPTFE
Stem Grade Grade 316
Stem Material Stainless Steel
Stem Type Blowout Resistant
Temp. Range -4°F to +366°F
Tube Size 3"
Vacuum Service Rating 29 in. hg
Valve Body Style Straight
Valve Construction One-Piece
Valve Series 720016 Series
Valve Structure One Piece
Vented Ball Valve Non Vented

Shipping Info:

Ship weight (kg) 14.04
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelBody MaterialConnection TypeMax. PressureMax. Steam PressureBall MaterialStem MaterialHandle MaterialSeat MaterialPrice
BONOMI 365N-11/2" Ball Valve, 1 1/2 Inch Pipe L, 400 PSI CWP, -4-366 Deg F, Female NPT | CN9VGA 46CE36 365N-11/2 BrassFNPT x FNPT400 psi100 psi WSPBrassBrassSteelPTFE€466.70
BONOMI 966N-11/2" Ball Valve, 1 1/2 Inch Pipe L, 800 PSI CWP, -20-450 Deg F | CN9VGB 46CE52 966N-11/2 Stainless SteelFNPT x FNPT x FNPT800 psi150 psi WSPStainless SteelStainless SteelStainless SteelRPTFE€936.22
BONOMI 355N-11/2" Ball Valve, 1 1/2 Inch Pipe T, 400 PSI CWP, -4-366 Deg F, Female NPT | CN9VGC 46CE44 355N-11/2 BrassFNPT x FNPT400 psi100 psi WSPBrassBrassSteelPTFE€466.70
BONOMI 956N-11/2" Ball Valve, 1 1/2 Inch Pipe T, 800 PSI CWP, -20-450 Deg F | CN9VGD 46CE60 956N-11/2 Stainless SteelFNPT x FNPT x FNPT800 psi150 psi WSPStainless SteelStainless SteelStainless SteelRPTFE€877.71
BONOMI 720017-11/2" Ball Valve, 1 1/2 Inch Pipe, 1 1/2 Inch Tube, 287 PSI | CN9VGE 483M29 720017-11/2 Carbon SteelFlanged287 psi100 psi WSPStainless SteelStainless SteelCast Iron, SteelRPTFE€521.89
BONOMI 966N-11/4" Ball Valve, 1 1/4 Inch Pipe L, 800 PSI CWP, -20-450 Deg F | CN9VGF 46CE51 966N-11/4 Stainless SteelFNPT x FNPT x FNPT800 psi150 psi WSPStainless SteelStainless SteelStainless SteelRPTFE€704.57
BONOMI 355N-11/4" Ball Valve, 1 1/4 Inch Pipe T, 400 PSI CWP, -4-366 Deg F, Female NPT | CN9VGG 46CE43 355N-11/4 BrassFNPT x FNPT400 psi100 psi WSPBrassBrassSteel, VinylPTFE€297.88
