BLACKBURN (T&B) L400-BB Wire Connector, 4/0 AWG - 500 kcmil Wire Sizes, 9/16 Inch Stud Size, Hex Head
Item: AH9KBYModel: L400-BBCross Ref: 3LR07
7 In Stock
Ships within 2 days via
5.00% off
€83.52 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical Connector |
| Connection Orientation | Compact |
| Connector Type | Compact |
| For Conductor Material | Copper |
| Head Style | Hex |
| Head Type | Hex |
| Hole Dia. | 0.56" |
| Length | 3" |
| Material | Copper |
| Max. Conductor Size | 500 kcmil |
| Max. For Stranded Copper Wire Size | 500 kcmil |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 1000V |
| Min. Conductor Size | 4/0 AWG |
| Min. For Stranded Copper Wire Size | 4/0 AWG |
| No. Of Conductors | 1 |
| No. Of Holes | 1 |
| No. Of Terminations | 1 |
| Overall Depth | 1 1/2" |
| Overall Length | 3" |
| Overall Width | 1.41" |
| Screw Finish | Zinc Plated |
| Screw Material | Steel |
| Stud Size | 9/16" |
| Tongue Length | 1.63" |
| Tongue Thickness | 0.28" |
| Tongue Width | 1.41" |
| Width | 1.41" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3.05 |
| Country of Origin | US |
Product Details:
- No. of Conductors : 1
- No. of Holes : 1
Product Variants
| Model | Min. Conductor Size | Overall Width | Max. Conductor Size | Min. For Stranded Copper Wire Size | Max. For Stranded Copper Wire Size | Stud Size | Overall Depth | Hole Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| L250 | 6 AWG | 0.94" | 250 kcmil | 6 AWG | 250 kcmil | 13/32" | 1 1/16" | 0.41" | €37.91 | |
| L35 | 14 AWG | 0.38" | 8 AWG | 14 AWG | 8 AWG | 13/64" | 3/8" | 0.2" | €5.02 | |

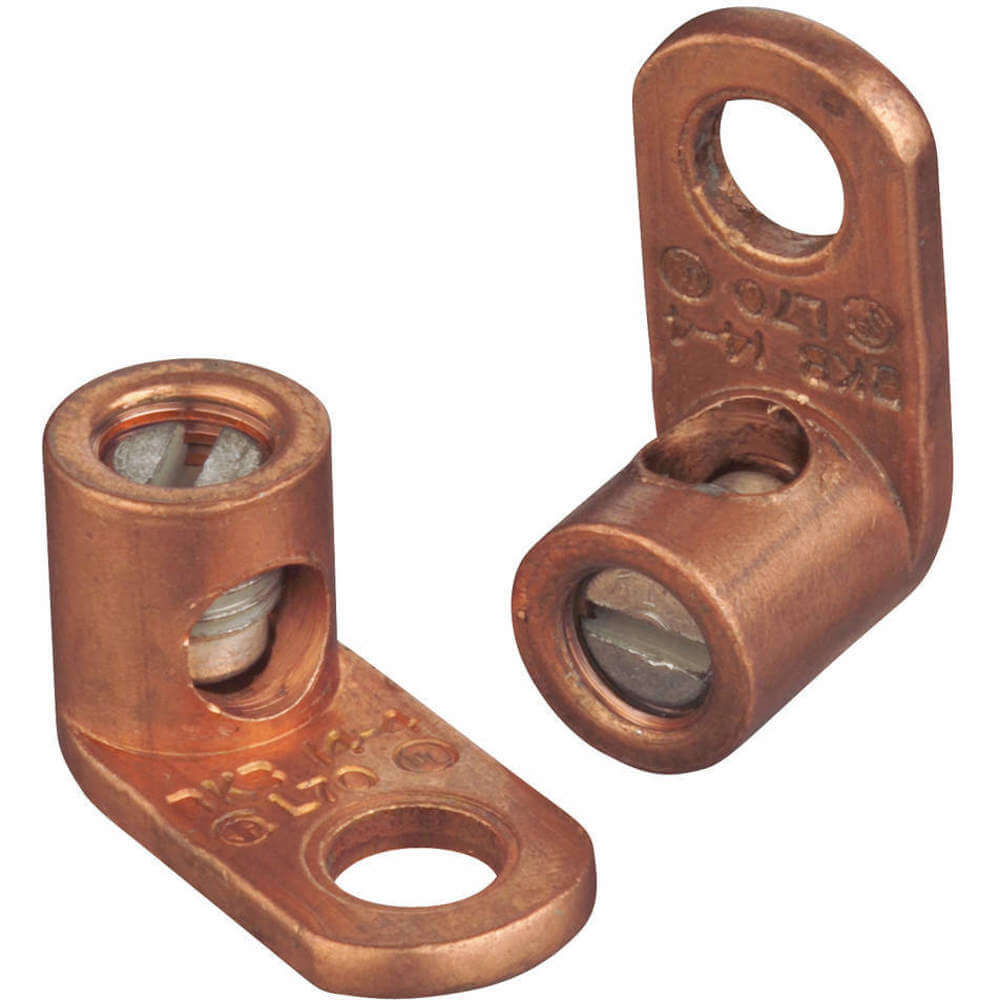

| L70 | 14 AWG | 0.53" | 4 AWG | 14 AWG | 4 AWG | 9/32" | 9/16" | 0.28" | €8.47 |
