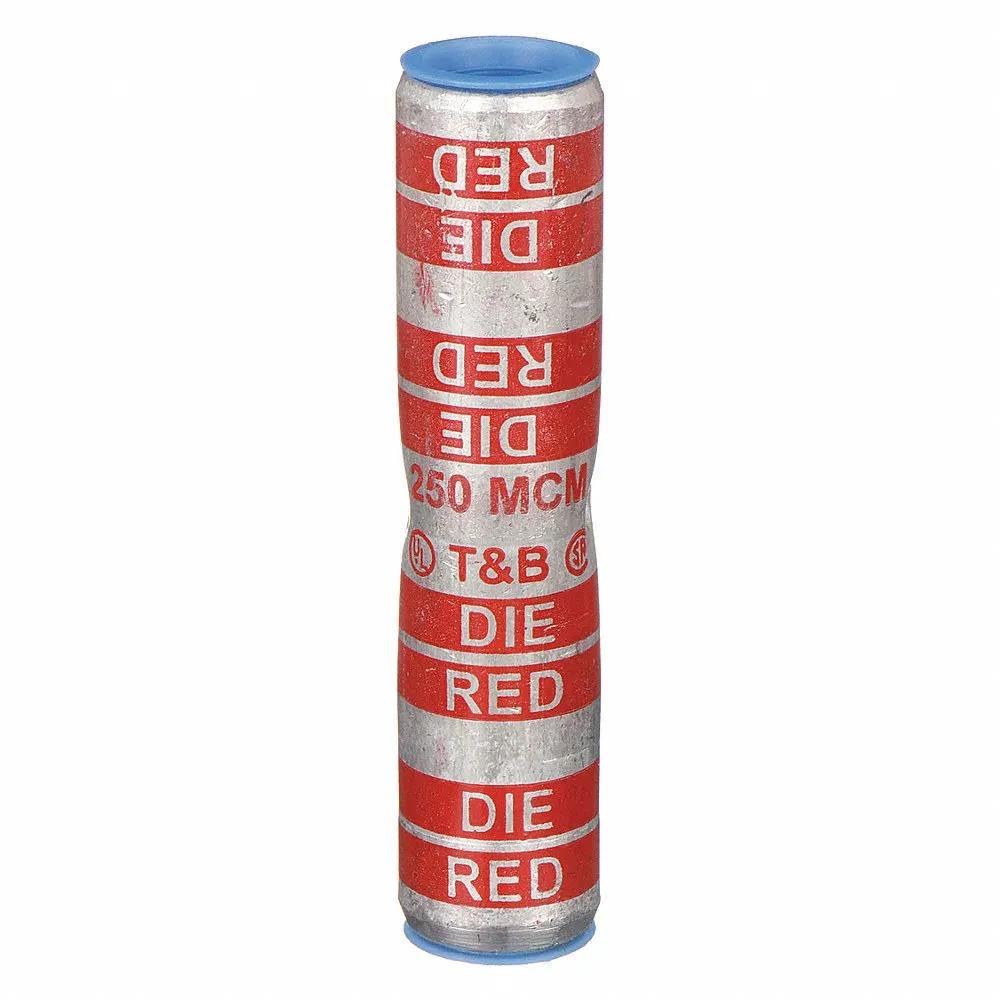

BLACKBURN (T&B) 60554 Two Way Aluminum Splice Connector, Wire Size 250 kcmil
Item: BK9AQKModel: 60554Cross Ref: 3LN13
7 In Stock
Ships within 2 days via
5.00% off
€72.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Long Barrel Splice |
| Barrel Finish | Tin Plated |
| Barrel Outside Dia. | 23/25" |
| Barrel Size | Long |
| Color | Red |
| Color Code | Red |
| Compatible With Product Type | Copper Conductor |
| Contact Finish | Tin |
| Contact Material | Aluminum |
| Die Code | 71 |
| Finish | TiN Plated |
| For Conductor Material | Aluminum |
| For Wire Type | Stranded |
| Material | Aluminum |
| Max. Conductors | 1 |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 35 kV |
| Max. Wire Insulation Dia. | 0.92" |
| Max. Wire Size | 250 kcmil |
| Min. Wire Size | 250 kcmil |
| No. Of Crimps | 4 |
| Overall Length | 3.91" |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Temp. | 90°C |
| Termination Style | Crimp |
| Voltage | 35 kV |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
