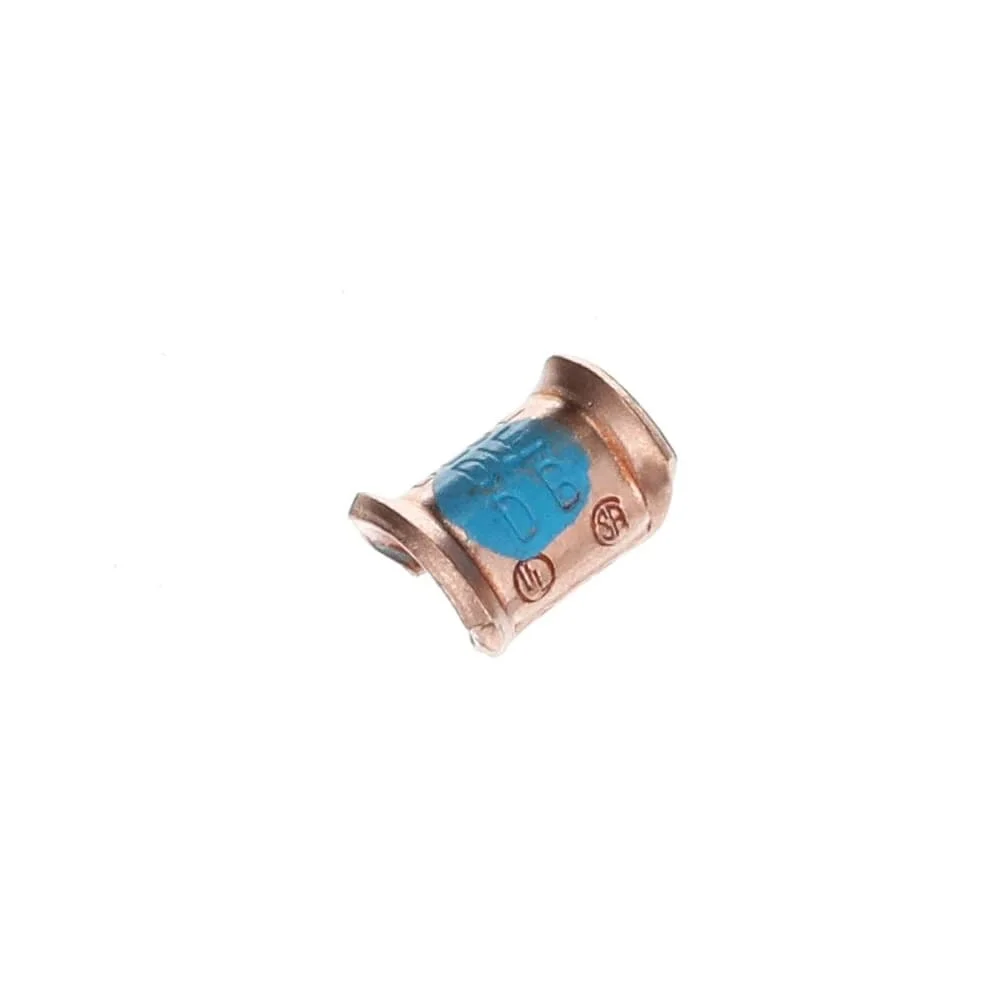

BLACKBURN (T&B) 54710 C Tap, Blue, 24 Die Code, Branch 10 to 12 AWG, Main 10 to 8 AWG Wire Range
Item: CH9UBEModel: 54710Cross Ref: 3LM28
7 In Stock
Ships within 2 days via
5.00% off
€9.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Connector |
| Color Code | Blue |
| Compatible Grainger Part No | 3LJ70, 3LJ75, 3LJ86, 3LJ88 |
| Compatible Installation Tool Model No. | 13454, 13461, 13475, 13477, 6TON24, TBM6224 |
| Compatible With Product Type | Crimping Die |
| Conductor Size | 10 AWG to 8 AWG |
| Die Code | 24 |
| Finish | Plain |
| For Conductor Material | Copper |
| For Max. Equal Wire Size | 10 AWG (Branch), 8 AWG (Main) |
| For Max. Run Wire Size | 8 AWG |
| For Max. Tap Wire Size | 10 Awg |
| For Min. Equal Wire Size | 10 AWG (Main), 12 AWG (Branch) |
| For Min. Run Wire Size | 10 AWG |
| For Min. Tap Wire Size | 12 AWG |
| Material | Copper |
| Max. Voltage | 600V |
| Overall Height | 7/16" |
| Overall Length | 9/16" |
| Tap Size | 10 AWG to 12 AWG |
| Termination Style | Crimp |
| Voltage | 600V |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.43 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
