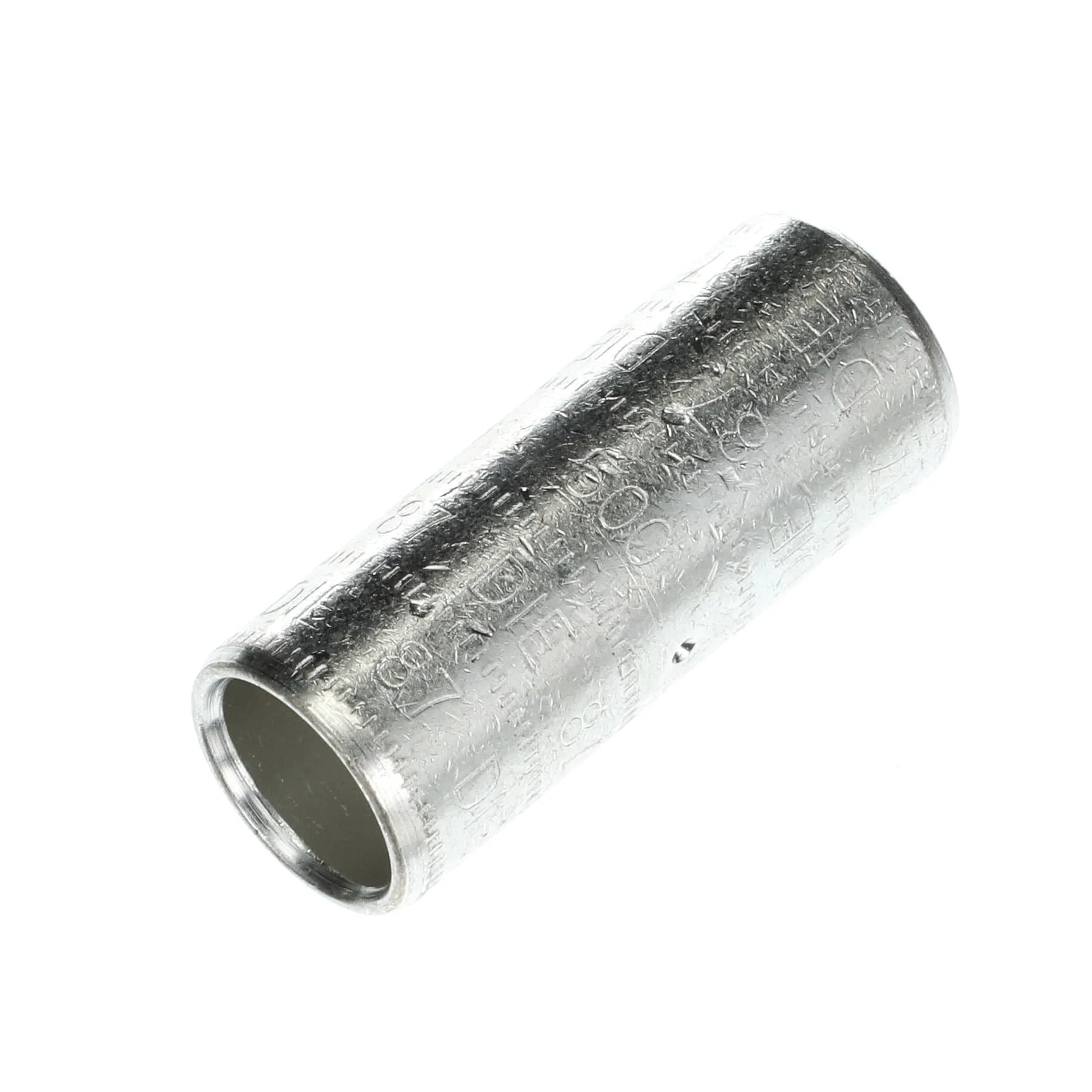

BLACKBURN (T&B) 54518 Copper Two Way Splice Connector, Wire Size 500 kcmil
Item: BK8ZBLModel: 54518Cross Ref: 3LM26
7 In Stock
Ships within 2 days via
5.00% off
€77.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Short Barrel Splice |
| Application | Applications Certified To 600V And Recommended Up To 35 Kv |
| Barrel Finish | Tin Plated |
| Barrel Outside Dia. | 1.11" |
| Barrel Size | Standard |
| Color | Brown |
| Color Code | Brown |
| Compatible With Product Type | Copper Conductor |
| Contact Finish | Tin |
| Contact Material | Copper |
| Die Code | 87 |
| Finish | TiN Plated |
| For Conductor Material | Copper |
| For Wire Type | Class G, H, I, K, M |
| Material | Copper |
| Max. Conductors | 1 |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 35 kV |
| Max. Wire Insulation Dia. | 1.11" |
| Max. Wire Size | 500 kcmil |
| Min. Wire Size | 500 kcmil |
| No. Of Crimps | 2 |
| Overall Length | 2.75" |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Easy To Insulate And Provide A Low-Resistance Connection Of High Quality And Low Installed Cost, Two-Way Connectors Provide High Pullout Values |
| Termination Style | Crimp |
| Voltage | 600V |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 7.62 |
| Country of Origin | MX |
Product Variants
| Model | Overall Length | Color | Termination Style | Max. Operating Temp. | Max. Voltage | Finish | Contact Finish | Seam Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 54507 | 1.25" | Brown | Crimp | 194°F | 35 kV | TiN Plated | Tin | Seamless | €20.39 | |
| 54505 | 1" | Blue | Crimp | 194°F | 35 kV | TiN Plated | Tin | Seamless | €13.18 | |
| 54506 | 1" | Gray | Crimp | 194°F | 35 kV | TiN Plated | Tin | Seamless | €14.98 | |
| 54504 | 1" | Red | Crimp | 194°F | 35 kV | TiN Plated | Tin | Seamless | €7.48 | |
| 54509 | 1.63" | Pink | Crimp | 194°F | 35 kV | TiN Plated | Tin | Seamless | €31.72 | |
| 54508 | 1.5" | Green | Crimp | 194°F | 35 kV | TiN Plated | Tin | Seamless | €21.23 | |
| 54511 | 1.75" | Orange | Crimp | 194°F | 35 kV | TiN Plated | Tin | Seamless | €33.17 |
