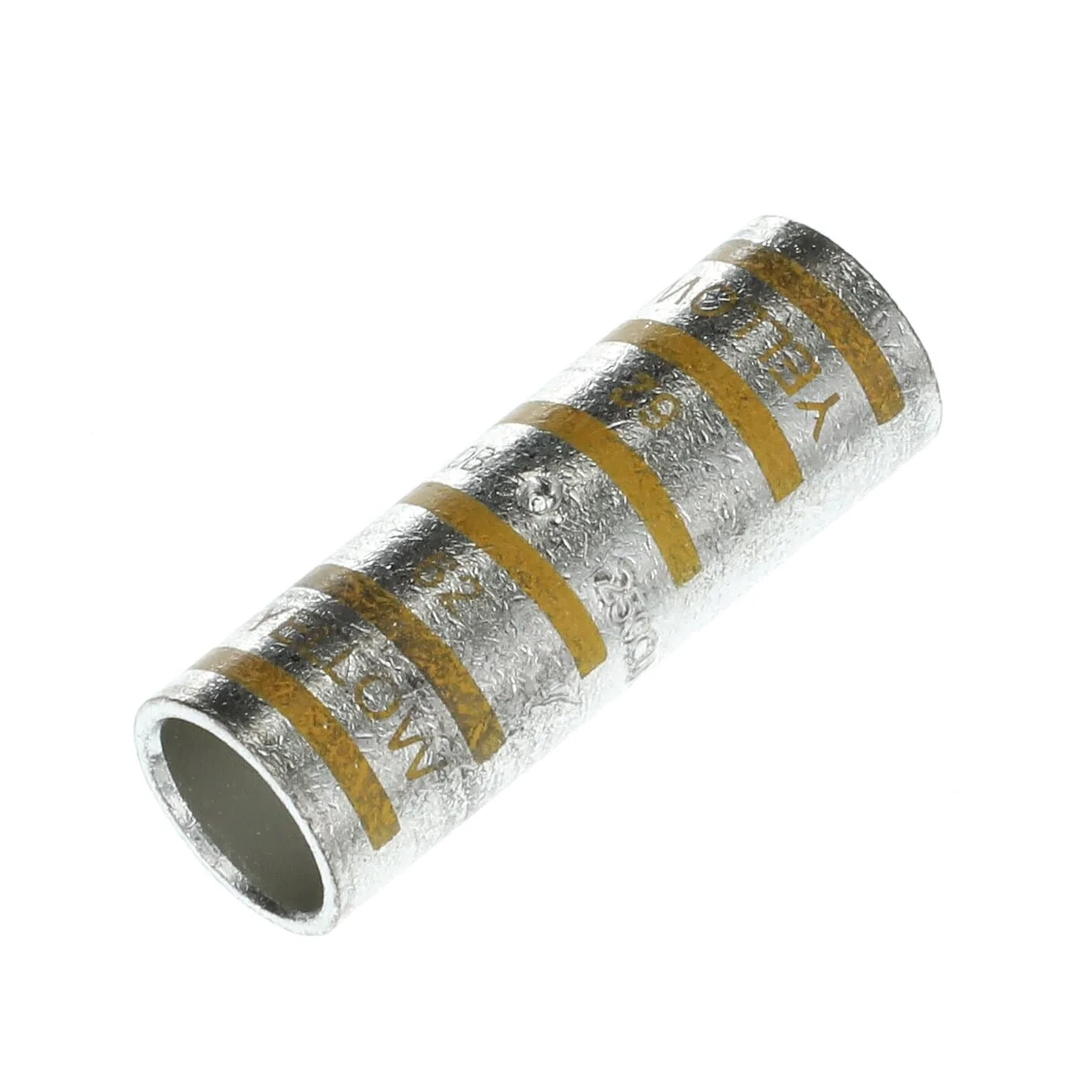

BLACKBURN (T&B) 54513 Copper Two Way Splice Connector, Max 35kV, Wire Size 250 kcmil
Item: BK8ZATModel: 54513Cross Ref: 3LM22
7 In Stock
Ships within 2 days via
5.00% off
€55.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Short Barrel Splice |
| Application | Applications Certified To 600V And Recommended Up To 35 Kv |
| Barrel Finish | Tin Plated |
| Barrel Outside Dia. | 0.77" |
| Barrel Size | Standard |
| Color | Yellow |
| Color Code | Yellow |
| Compatible With Product Type | Copper Conductor |
| Contact Finish | Tin |
| Contact Material | Copper |
| Die Code | 62 |
| Finish | TiN Plated |
| For Conductor Material | Copper |
| For Wire Type | Class G, H, I, K, M |
| Material | Copper |
| Max. Conductors | 1 |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 35 kV |
| Max. Wire Insulation Dia. | 0.77" |
| Max. Wire Size | 250 kcmil |
| Min. Wire Size | 250 kcmil |
| No. Of Crimps | 1 |
| Overall Length | 2.25" |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Termination Style | Crimp |
| Voltage | 600V |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 7.11 |
| Country of Origin | MX |
Product Variants
| Model | Color | Voltage | Color Code | Min. Wire Size | Max. Wire Size | Barrel Outside Dia. | Max. Wire Insulation Dia. | No. Of Crimps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 54507 | Brown | 600V | Brown | 2 AWG | 2 AWG | 0.41" | 0.41" | 1 | €20.39 | |
| 54505 | Blue | 600V | Blue | 6 AWG | 6 AWG | 0.3" | 0.3" | 1 | €13.18 | |
| 54506 | Gray | 35 kV | Gray | 4 AWG | 4 AWG | 0.37" | 0.37" | 1 | €14.98 | |
| 54504 | Red | 600V | Red | 8 AWG | 8 AWG | 0.27" | 0.27" | 1 | €7.48 | |
| 54509 | Pink | 600V | Pink | 1/0 AWG | 1/0 AWG | 13/25" | 13/25" | 1 | €31.72 | |
| 54508 | Green | 35 kV | Green | 1 AWG | 1 AWG | 0.47" | 0.47" | 1 | €21.23 | |
| 54511 | Orange | 600V | Orange | 3/0 AWG | 3/0 AWG | 0.63" | 0.63" | 1 | €33.17 |
