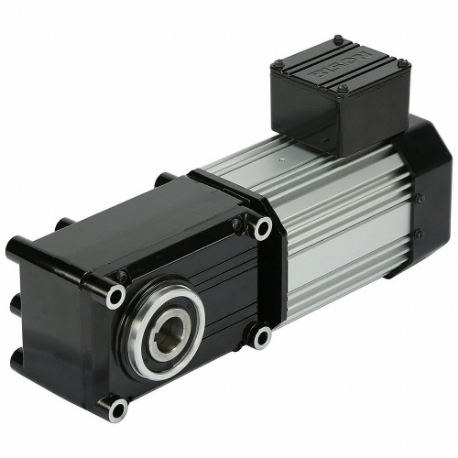

BISON GEAR & ENGINEERING 027-725K0080 AC Gearmotor, Right Angle, TEFC, 480 in-lb
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,875.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Application | Light Industrial, Light To Medium Conveying |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Features | Higher Torque Capability, Quieter Operation, Unmatched Energy Efficiency, Upto 4X More Efficient Than Traditional Technology Right Angle Gearmotors |
| Frequency | 90 Hz |
| Full Load Current | 0.65/1.05A |
| Gear Ratio | 80:1 |
| Housing Finish | Clear Coated |
| Housing Material | Aluminum |
| Input Horsepower | 0.2 hp |
| Input Hp | 1/5 hp |
| Input Power | AC |
| Lubrication | Semi-Fluid Grease |
| Max. Torque | 480 lbs.-in. |
| Maximum Output Speed | 20.9 RPM |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Mounting Orientation | Any Angle |
| Mounting Type | Face/Foot |
| Nameplate Rpm | 21 RPM |
| Operating Voltage | 230/400-460V AC |
| Output Shaft Dia. | 1" |
| Overall Height | 4.22" |
| Overall Length | 15.37" |
| Overall Width | 4 16/25" |
| Phase | Three |
| Replacement Brushes | Not Applicable |
| Rotation | CW/CCW |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Standard Or Flange Mount | Standard Mount |
| Standards | Rohs Compliant |
| Torque | 480 lbs.-in. |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 10.72 |
| Ship length (cm) | 39.04 |
| Ship width (cm) | 11.79 |
| Country of Origin | US |
Product Variants
| Model | Gear Ratio | Rotation | Mounting Orientation | Operating Voltage | Inverter Rated | Motor Type | Overhung Load Capacity | Base To Center Of Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 026-725A0100 | 100:1 | CW/CCW | Any Angle | 115V AC | No | Permanent Split Capacitor | 740 lbs.-ft. | 2.11" | €1,429.55 | |
| 026-725A0120 | 120:1 | CW/CCW | Any Angle | 115V AC | No | Permanent Split Capacitor | 780 lbs.-ft. | 2.11" | €1,470.45 | |
| 026-725A0150 | 150:1 | CW/CCW | Any Angle | 115V AC | No | Permanent Split Capacitor | 820 lbs.-ft. | 2.11" | €1,470.45 | |
| 026-725A0180 | 180:1 | CW/CCW | Any Angle | 115V AC | No | Permanent Split Capacitor | 870 lbs.-ft. | 2.11" | €1,599.66 | |
| 026-725A0240 | 240:1 | CW/CCW | Any Angle | 115V AC | No | Permanent Split Capacitor | 940 lbs.-ft. | 2.11" | €1,470.45 | |
| 026-725A0010 | 10:1 | CW/CCW | Any Angle | 115V AC | No | Permanent Split Capacitor | 355 lbs.-ft. | 2.11" | €1,827.48 | |
| 026-725A0015 | 15:1 | CW/CCW | Any Angle | 115V AC | No | Permanent Split Capacitor | 400 lbs.-ft. | 2.11" | €1,518.26 |
