BISON GEAR & ENGINEERING 016-246-4019 AC Gearmotor, Parallel, PSC, TEFC, 163 in-lb
Get it by Friday, Jul 3
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,344.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Agma Gear Class | Class 9 |
| Capacitor Required | Yes |
| Duty Condition Type | Continuous Duty |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Features | Mounted Capacitor On Psc Units, Mounted External On 1/4 In Hp, Inside J-Box On 1/6 In Hp, Rear Shaft Extension (1-Phase Units Only) |
| Finish | Gloss Black Powder Coat |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.3/1.4/2.4/2.6A , 1.4/1.3A @ 115V, 50/60 Hz, 2.6/2.4A @ 115V, 50/60 Hz |
| Gear Material | Steel |
| Gear Ratio | 19:1 |
| Gear Type | Spur |
| Gearing | Hardened Steel, AGMA Class 9 1st Stage Helical Metal, Balance Spur Metal |
| Housing Finish | Powder Coating |
| Housing Material | Die Cast Aluminum |
| Housing Mount Hole Size | 7/25" |
| Included | Junction Box |
| Included Junction/conduit Box | Yes |
| Input Hp | 1/4 hp |
| Input Power | AC |
| Insulation Class | Class B |
| Keyway Depth | 3/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Length Less Shaft | 9.39" |
| Lubrication | Lifetime Oil Bath, Sealed And Gasketed |
| Max. Output Speed | 88 RPM |
| Max. Torque | 163 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class B |
| Motor Phase | 3 |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center To Center Length | 4" |
| Mount Hole Center To Center Width | 1 1/2" |
| Mounting | Face, Base, Any Angle |
| Mounting Orientation | Any Angle |
| Nameplate Speed | 88 RPM |
| No. Of Housing Mount Holes | 4 |
| Operating Voltage | 115/230V AC |
| Output Shaft Dia. | 3/4" |
| Output Shaft Length | 1 1/2" |
| Output Shaft Type | Keyed |
| Overall Length | 11.29" |
| Phase | 3 |
| Replacement Brushes | Not Applicable |
| Rotation | Reversible |
| Shaft Material | Hardened Steel |
| Shaft Orientation | Parallel |
| Standard Or Flange Mount | Standard Mount |
| Standards | Rohs Compliant |
| Torque | 163 lbs.-in. |
| Type | Permanent Split Capacitor |
| Voltage | 115/230V |
Shipping Info:
| Ship weight (kg) | 7.88 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 28.68 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Gear Ratio | Max. Torque | Operating Voltage | Enclosure Type | Overhung Load | Housing Mount Hole Size | Output Shaft Length | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
017-247-0011 | 11:1 | 80 lbs.-in. | 230V AC | Tefc | - | 9/32" | 1 9/16" | Permanent Split Capacitor | €1,500.69 | |
|

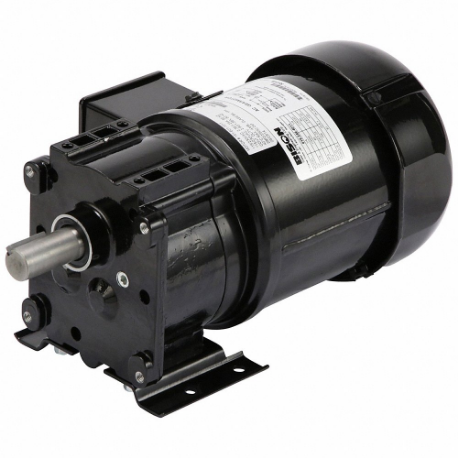

016-246-4005 | 5:1 | 41 lbs.-in. | 115/230V AC | Totally Enclosed Fan Cooled | - | 7/25" | 1 1/2" | Permanent Split Capacitor | €1,612.40 | |
 |

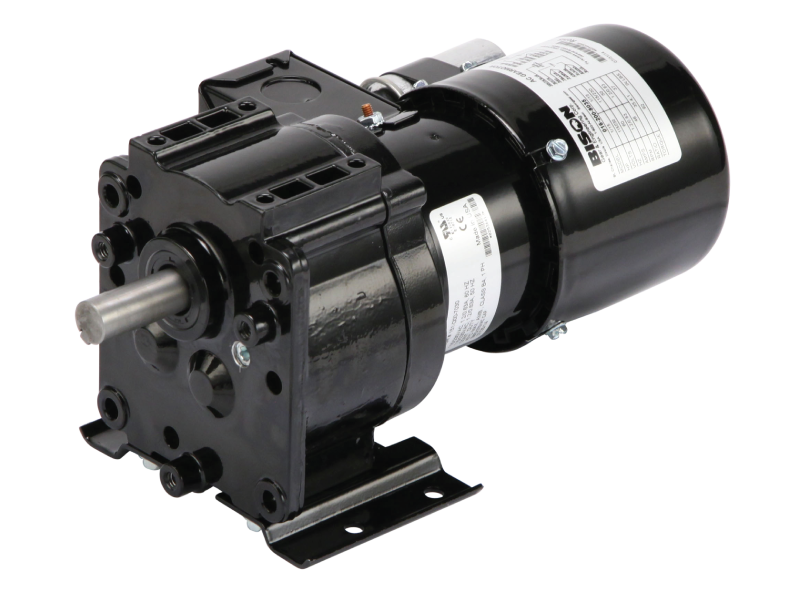

014-242-9015 | 15:1 | - | - | Tefc | - | - | - | Permanent Split Capacitor | €744.45 | |
|
014-242-9019 | 19:1 | - | - | Tefc | - | - | - | Permanent Split Capacitor | €744.45 | |
|
014-242-9028 | 28:1 | - | - | Tefc | - | - | - | Permanent Split Capacitor | €744.45 | |
|
014-242-9036 | 36:1 | - | - | Tefc | - | - | - | Permanent Split Capacitor | €744.45 | |
|
014-242-9058 | 58:1 | - | - | Tefc | - | - | - | Permanent Split Capacitor | €744.45 |
