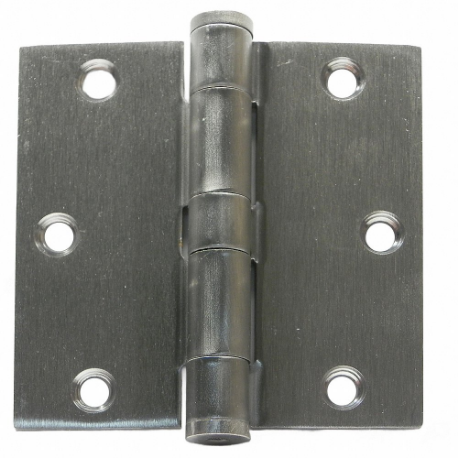

BEST F17935X35FMSWDOORHINGE15STL Butt Hinge, 3 Holes per Leaf, 3 1/2 Inch Door Leaf Height, 1 1/2 Inch Door Leaf Width
Item: CU4HHMModel: F17935X35FMSWDOORHINGE15STLCross Ref: 53DY37
7 In Stock
Ships within 2 days via
10.00% off
€13.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Butt Hinge |
| Bearing Type | Plain |
| Corner Type | Square |
| Corners | Square |
| Door Leaf Height | 3 1/2" |
| Door Leaf Thickness | 0.123" |
| Door Leaf Width | 1 1/2" |
| Features | For Use On Internal Or External Doors Without Door Closers, Hinges Can Be Furnished With Hospital Tips (HT), Template Screw Hole Location |
| Finish | Satin Nickel Plated, Clear Coated |
| Frame Leaf Height | 3 1/2" |
| Frame Leaf Thickness | 0.123" |
| Frame Leaf Width | 2" |
| Hardware | Included |
| Hinge Number | #1 Heavy Duty |
| Holes | With |
| Holes Per Leaf | 3 |
| Includes Hardware | Hardware Included |
| Ligature Resistant | No |
| Load Capacity | 50 lbs. |
| Material | Steel |
| Mounting | Full Mortise |
| Mounting Style | Full Mortise |
| Number Of Holes Per Leaf | 3 |
| Number Of Wires | 0 |
| Orientation | Non Handed |
| Overall Height | 3 1/2" |
| Overall Knuckle Height | 0.438" |
| Overall Width | 3 1/2" |
| Pin Dia. | 0.312" |
| Pin Diameter | 5/16" |
| Pin Material | Steel |
| Pin Type | Removable |
| Range Of Motion | 270° |
| Range Of Motion - Maximum | 270° |
| Removable Pin | Yes |
| Required Door Thickness | 1 3/8" to 3" |
| Standards | Ansi, Bhma |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
