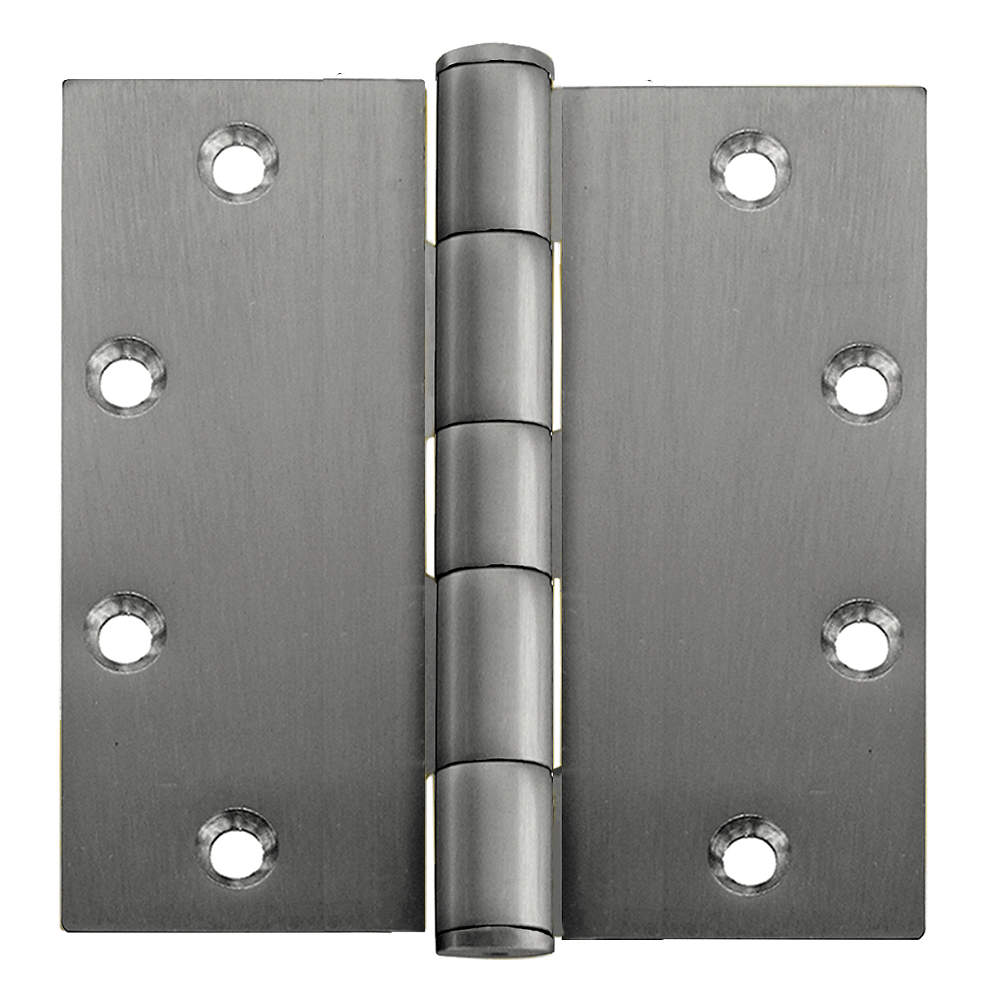

BEST CB191 3 5X3 5 FM SW DOOR HINGE 32D STS Template Hinge Concealed Natural
Item: AE3WERModel: CB191 3 5X3 5 FM SW DOOR HINGE 32D STSCross Ref: 5GJJ0
7 In Stock
Ships within 2 days via
10.00% off
€76.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Template Hinge |
| Bearing Type | Concealed |
| Corner Type | Square |
| Corners | Square |
| Door Leaf Height | 3 1/2" |
| Door Leaf Length | 3 1/2" |
| Door Leaf Thickness | 0.123" |
| Door Leaf Width | 1 1/2" |
| Door Thickness | 1 3/8" |
| Features | For Aluminum Doors With Aluminum Frames, Slip-In Application Where One Leaf Of Hinge Is Inserted Through A Slot In Door Or Frame, And The Other Leaf Mortised |
| Finish | Satin Stainless Steel |
| Frame Leaf Length | 3 1/2" |
| Frame Leaf Thickness | 0.123" |
| Frame Leaf Width | 1 1/2" |
| Hardware | Included |
| Holes Per Leaf | 3.0 |
| Includes Hardware | Hardware Included |
| Leaf Thickness | 0.123" |
| Load Capacity | 75 lbs. |
| Material | Stainless Steel |
| Mounting | Full Mortise |
| Mounting Style | Full Mortise |
| Number Of Holes Per Leaf | 3 |
| Overall Height | 3 1/2" |
| Overall Width | 3 1/2" |
| Pin Dia. | 0.266" |
| Pin Diameter | 1/4" |
| Pin Material | Stainless Steel |
| Pin Type | Removable |
| Range Of Motion | 180° |
| Range Of Motion - Maximum | 270° |
| Removable Pin | Yes |
| Standards | Ansi, Bhma |
| Stanley Class Number | CB191 |
| Stanley Edp Number | 443657 |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 5.33 |
| HS code | 8302106030 |
| Country of Origin | CN |
