BEST 45H7A15H626RH Mortise Lockset, Grade 1, 45H Rose Trim, Satin Chrome, Different
Item: CN9KYTModel: 45H7A15H626RHCross Ref: 45CK58
7 In Stock
Ships within 2 days via
10.00% off
€992.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mortise Lockset |
| Ada Compliant | Yes |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Office |
| Backset | 2 3/4" |
| Bolt Type | Latch Bolt |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Door Thickness - Maximum | 5" |
| Door Thickness - Minimum | 1 3/4" |
| Electrical/mechanical | Mechanical |
| Features | Contour Angle Return Lever Style, Right Handed |
| Finish | Satin Chrome |
| Fire Rated | Yes |
| Fire Rating | 3 hrs. |
| Function | Office |
| General Lockset Function | Office Lever Locksets |
| Hand Orientation | Right Handed |
| Handle Type | Lever |
| Includes | Lever, Trim And Component Kit |
| Key Material | Nickel Silver |
| Key Type | Keyed Different |
| Keying | Keyed Different |
| Knob/handle Material | Brass, Bronze, Stainless Steel |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Commercial, Industrial |
| Lock Assembly Type | Mortise |
| Lockset Function Ansi Code | F04 |
| Lockset Handle Type | Lever |
| Lockset Style | 45H Rose Trim |
| Lockset Type | Mechanical |
| Mortise / Cylindrical | Mortise |
| Number Of Keys | 2 |
| Number Of Pins | 7 |
| Outside Locking Access | Keyway |
| Performance Duty Rating | 1 |
| Pins | 7 |
| Properties | Locking |
| Required Door Thickness | 1 3/4" |
| Strike Dim. | 4.875" x 1.125" x 3.094" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Thickness | 1 1/8" |
| Strike Plate Width | 1/8" |
| Style | 45H Rose Trim |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 2.86 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Key Type | Visual Indicator Message | Backset | Fire Rating | Style | Ligature Resistant | Number Of Keys | Strike Dim. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

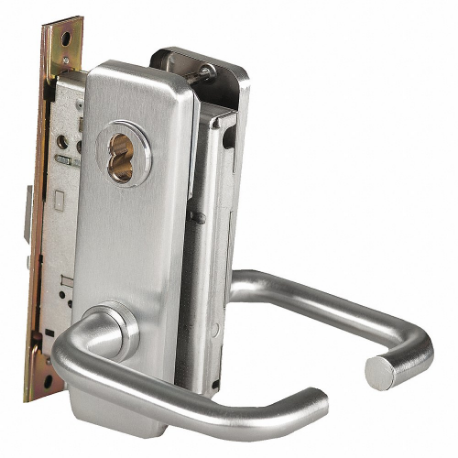

45H7D3J626LH | Not Keyed | No Message | 2 3/4" | 3 hrs. | 40 H Escutcheon | No | - | 4 7/8" x 1 1/4" | €1,365.46 | |
 |

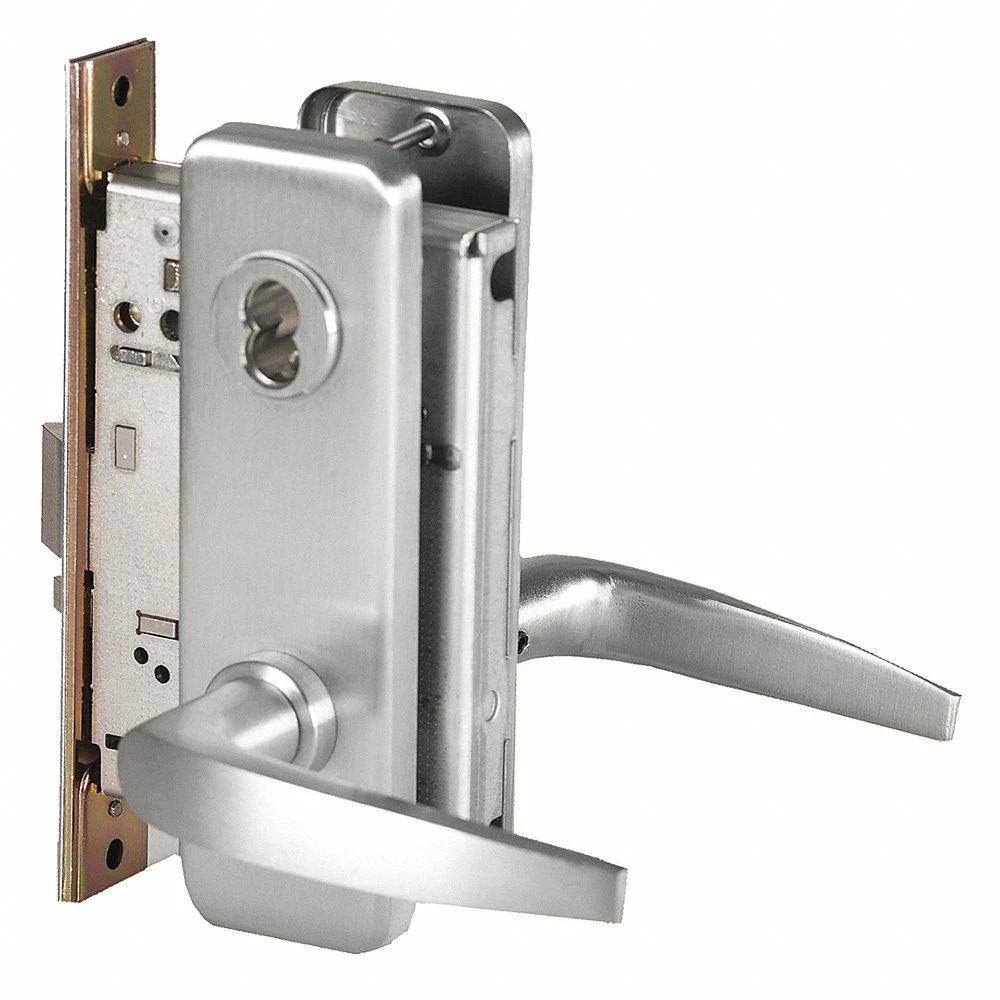

45H7D16J626RH | Not Keyed | No Message | 2 3/4" | 3 hrs. | 40 H Escutcheon | No | - | 4 7/8" x 1 1/4" | €1,198.26 | |
 |
45H7D14J626LH | Not Keyed | No Message | 2 3/4" | 3 hrs. | 40 H Escutcheon | No | - | 4 7/8" x 1 1/4" | €1,306.20 | |
 |

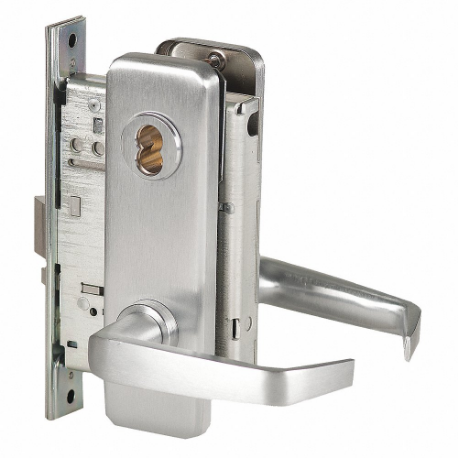

45H7D15J626RHRB | Not Keyed | No Message | 2 3/4" | 3 hrs. | 40 H Escutcheon | No | - | 4 7/8" x 1 1/4" | €1,165.74 | |
 |

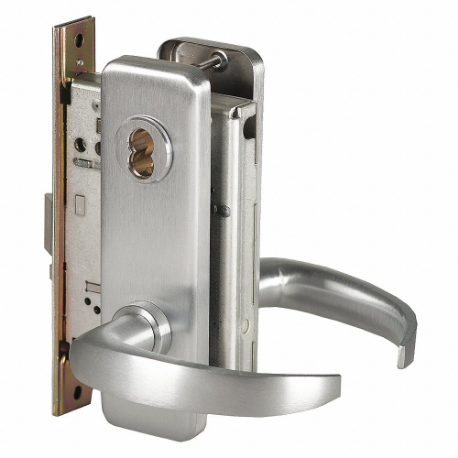

45H7T14J626LH | Not Keyed | No Message | 2 3/4" | 3 hrs. | 40 H Escutcheon | No | - | 4 7/8" x 1 1/4" | €1,185.40 | |
|
45H7R14J626LHRB | Not Keyed | No Message | 2 3/4" | 3 hrs. | 40 H Escutcheon | No | - | 4 7/8" x 1 1/4" | €1,238.08 | |
|
45H7D3J626RH | Not Keyed | No Message | 2 3/4" | 3 hrs. | 40 H Escutcheon | No | - | 4 7/8" x 1 1/4" | €1,365.46 |
