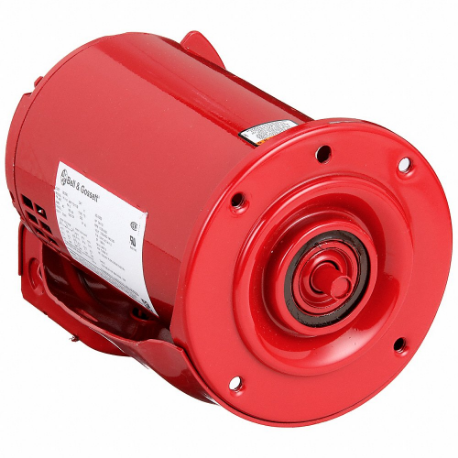

BELL & GOSSETT 169231 Circulating Pump Motor, 3/4 hp, Three Phase, 230/460VAC
Get it by Thursday, Dec 25
10.00% off
€2,953.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump Motor |
| Compatible With Pump Type | In Line Circulating Pumps |
| Compatible With Series Family | BE609T, BE611S, BE611T, BE615S, BE615T, BE626S, BE626T, E609S, E609TBE609S, E611S, E611T, E613S, E613T, E615S, E615T, E622S, E622T, E626S, E626T |
| Fits Brand | Bell And Gossett |
| Hp | 3/4 hp |
| Max. Rpm | 1725 RPM |
| Min. Ambient Temp. | 40°F |
| Motor Enclosure Design | Open Dripproof |
| Nameplate Voltage | 230/460V AC |
| No. Of Speeds | 1 |
| Phase | 3 |
| Pump Type | In-Line Circulating Pump |
| Voltage | 240/460V AC |
Shipping Info:
| Ship weight (kg) | 11.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Max. Rpm | Hp | Min. Ambient Temp. | Phase | Max. Ambient Temp. | Frame | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
811757-001 | 115V AC | 1800 RPM | 1/2 hp | 32°F | Single | 104°F | 48Z | 7.6A | €1,431.91 | |
 |
816141-001 | 115V AC | 1800 RPM | 1/4 hp | 32°F | Single | 104°F | - | 7.6A | €1,212.80 | |
|
816141-002 | 115V AC | 1800 RPM | 1/3 hp | 32°F | - | 104°F | 48Z | 7.6A | €1,612.40 | |
 |
817025-007 | 115V AC | 1800 RPM | 1/4 hp | 32°F | - | 104°F | 48Z | 7.6A | €897.10 | |
 |
818041-400 | 115V AC | 2000 RPM | 1/2 hp | 32°F | Single | 104°F | 48Z | 7.6A | €2,323.02 | |
 |
818041-500 | 115V AC | 1800 RPM | 3/4 hp | 32°F | Single | 104°F | 48Z | 7.6A | €2,401.75 | |
 |
819031-200 | 115V AC | 2000 RPM | - | 32°F | Single | 104°F | 48Z | 4.4A | €2,321.26 |
