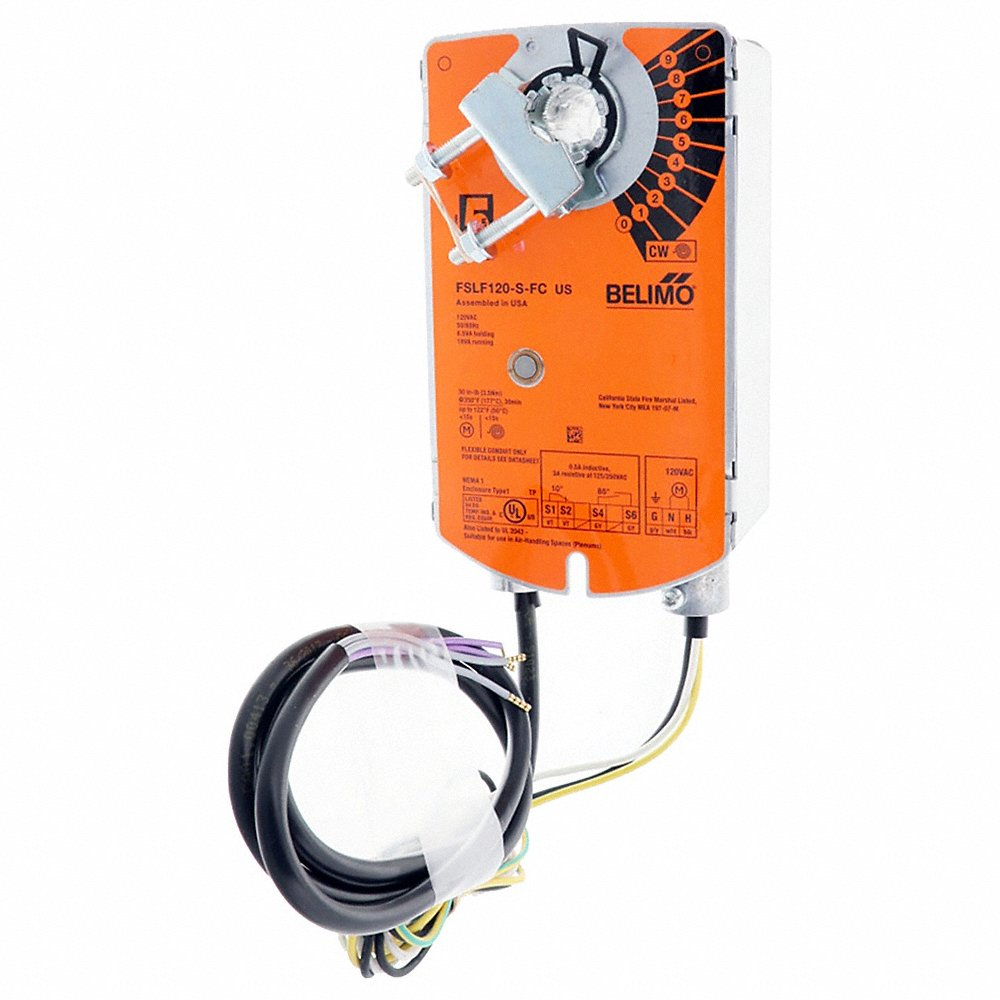

BELIMO FSLF120-S-FC Actuator, Damper, 30 in-lb, 120V AC
Item: DD4AYDModel: FSLF120-S-FCCross Ref: 806KX0
7 In Stock
Ships within 2 days via
13.00% off
€637.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Application | Fire, Smoke Dampers |
| Contact Form | SPST |
| Fire Application Rating | Fire Application Rated |
| Fire/smoke Rating Combo | Fire Application Rated, Smoke Application Rated |
| Housing Finish | Galvanized |
| Housing Material | Steel |
| Includes | 18 GA Appliance Cable, 1 M With 1/2 In Conduit Connector |
| Input Voltage | 120V AC |
| Ip Rating | IP30 |
| Max. Operating Temp. | 122°F |
| Min. Operating Temp. | 32°F |
| Nema Rating | 1 |
| No. Of Auxiliary Switches | 2 |
| Overall Height | 7" |
| Overall Width | 3 7/8" |
| Plenum Rating | Plenum Rated |
| Power Consumption | 18 VA |
| Rated Torque | 30 lbs.-in. |
| Signal Type | Floating Point |
| Spring Return | Spring Return |
| System Application | Fire And Smoke Dampers |
| Time To Close | 15 sec. |
Shipping Info:
| Ship weight (kg) | 2.02 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 11.05 |
| Ship width (cm) | 23.62 |
| Country of Origin | US |
