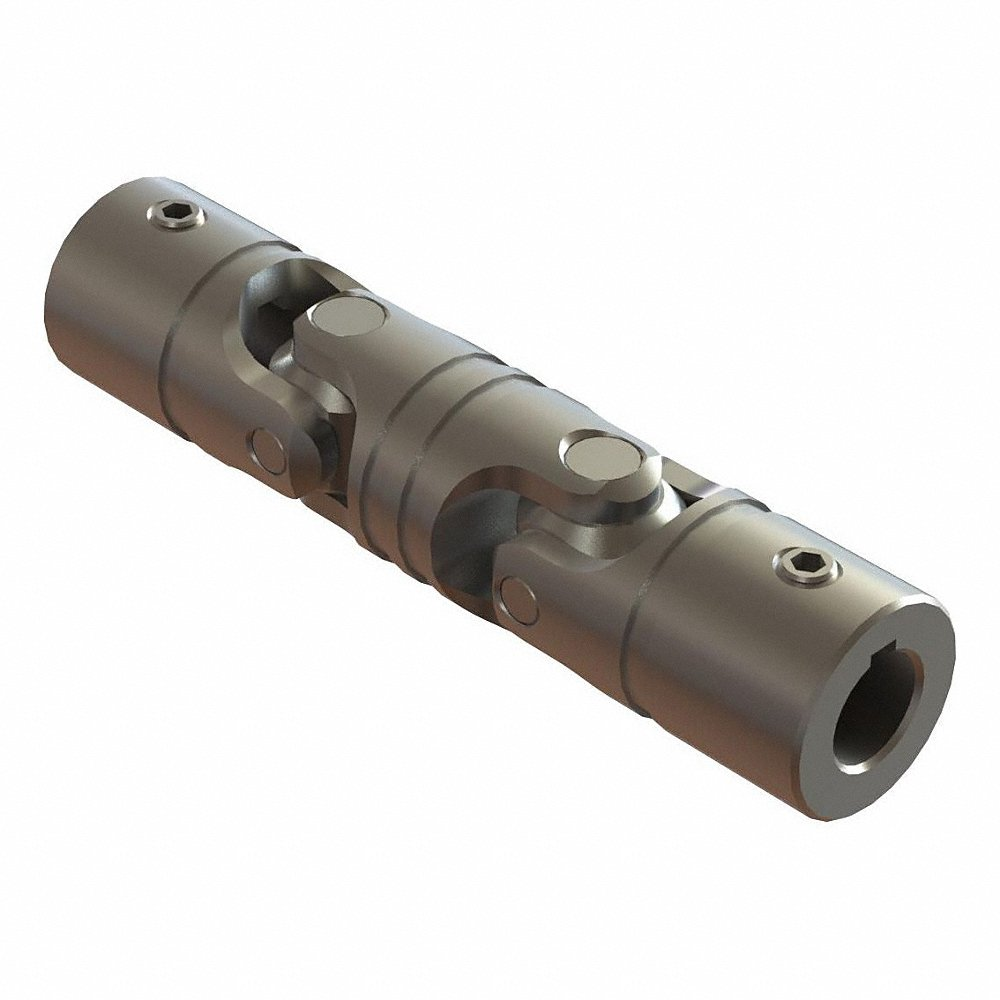

BELDEN DUJ-HD1750X875K Universal Joint, 1000 RPM, Steel
Item: DC7YRZModel: DUJ-HD1750X875KCross Ref: 806VC9
7 In Stock
Ships within 2 days via
13.00% off
€508.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Bore Dia. | 7/8" |
| Bore Dia. B | 7/8" |
| Bore Type | Round Keyed |
| Center Yoke Length | 2 3/4" |
| Hub Depth | 1 3/5" |
| Hub Depth Mm | 40.6 mm |
| Included Screws | Set Screw |
| Joint Outside Dia. | 44.5 mm |
| Joint Type | Pin, Block |
| Keyway Depth | 3/32" |
| Keyway K | 4 19/25 mm x 2.38 mm |
| Keyway Width | 3/16" |
| Length | 7.75 |
| Length Through Bore | 1 5/8" |
| Max. Speed | 1000 RPM |
| Max. Torque | 2610 lbs.-in. |
| No. Of Joints | 2 |
| Operating Angle | 90° |
| Overall Length | 7 3/4" |
| Part Design | Heavy Duty |
| Part Material | Alloy Steel |
| Part Style | Pin & Block - Friction Bearing |
| Set Screw | 5/16-18 x 5/16 |
| System Of Measurement | Imperial |
| Torque Rating | 295 N-m |
| U Joint Material | Steel |
Shipping Info:
| Ship weight (kg) | 1.71 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 25.91 |
| Ship width (cm) | 5.33 |
| Country of Origin | US |
