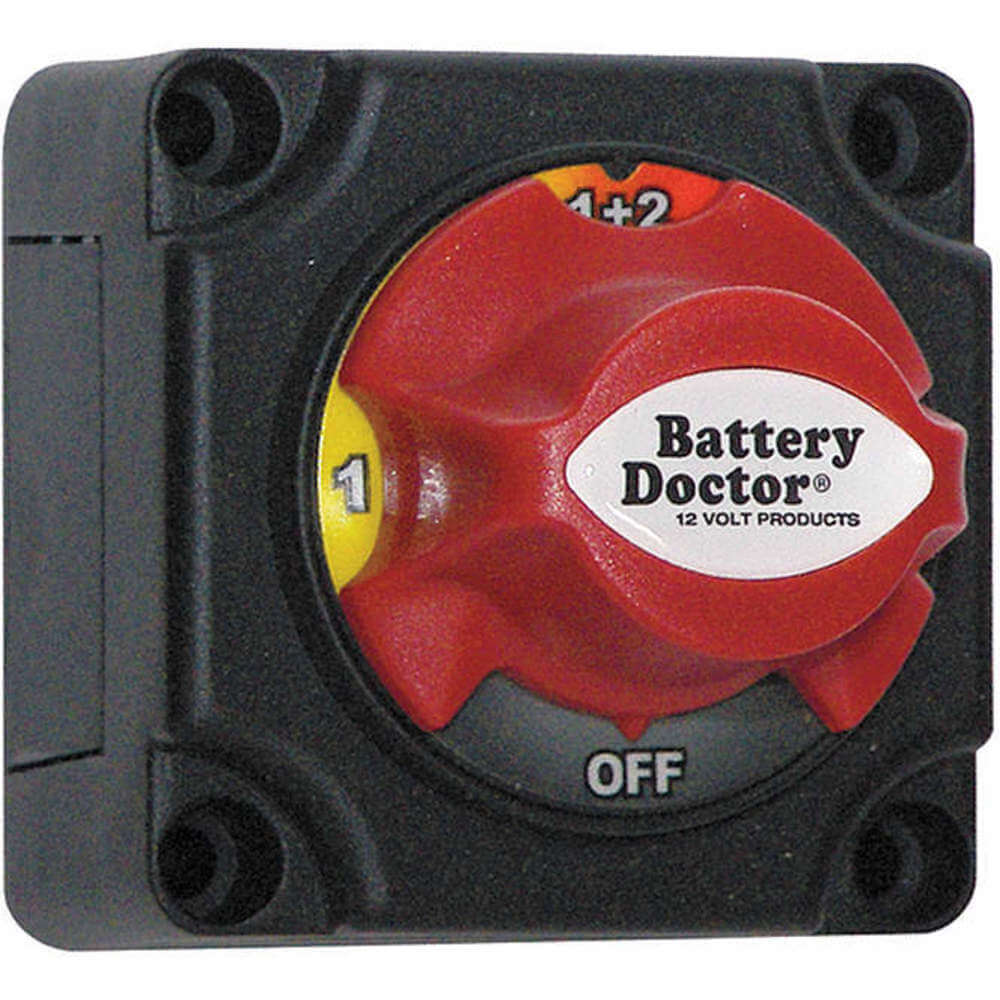

BATTERY DOCTOR 20393 Dial Battery Disconnect Switch 24 V
Item: AF2HLEModel: 20393Cross Ref: 6TXD9
7 In Stock
Ships within 2 days via
5.00% off
€117.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Battery Disconnect Switch |
| Connection Type | Threaded Stud |
| Contact Material | Copper |
| Continuous Amps | 300A |
| Cranking Amps | 700A |
| Depth | 75 mm |
| Features | Battery Doctor Label Glows In The Dark, Cable Knockout Plate On All 4 Sides, Removable Back Plate |
| Intermittent Amps | 1000A |
| Length | 69 mm |
| Max. Amps | 1000A , 300A |
| Max. Voltage | 12V , 24V |
| No. Of Batteries | 2 |
| No. Of Positions | 4 |
| Overall Depth | 3" |
| Overall Length | 2 3/4" |
| Overall Width | 2 3/4" |
| Polarity | Negative |
| Stud Size | 10 mm |
| Switch Location | In Line |
| Switch Type | In Line Rotary |
| Type | Dial Switch |
| Width | 69 mm |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 8.89 |
| HS code | 8536509065 |
| Country of Origin | TW |
Product Variants
| Product | Model | Contact Material | Material | Connection Material | Overall Depth | Overall Width | Max. Voltage | Max. Amps | Polarity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20148 | Brass, Copper | Brass, Copper | - | 2 1/4" | 3" | 12V | 250A | Negative | €93.10 | |
 |
20304 | Copper | Brass, Metal | Brass | 3 1/2" | 1 3/4" | 12V | 100A | Negative | €89.90 | |
 |
20308 | Zinc | Brass | Brass | 1 1/2" | 1 5/16" | 12V | 125A | Negative | €28.27 | |
 |
20309 | Zinc | Brass | Brass | 1 1/2" | 1 5/16" | 12V | 125A | Negative | €50.63 | |
 |
20314 | Copper | Copper, Plastic | Copper | 1 1/2" | 2 1/4" | 24V | 100A | Negative | €63.60 | |
 |
20259 | Copper | Brass | Brass | 4 5/8" | 2 1/2" | 12V | 250A | Negative | €265.22 | |
 |
20302 | Copper | Copper, Plastic | Copper | 1 1/2" | 1" | 12V | 20A | Negative | €14.13 |
