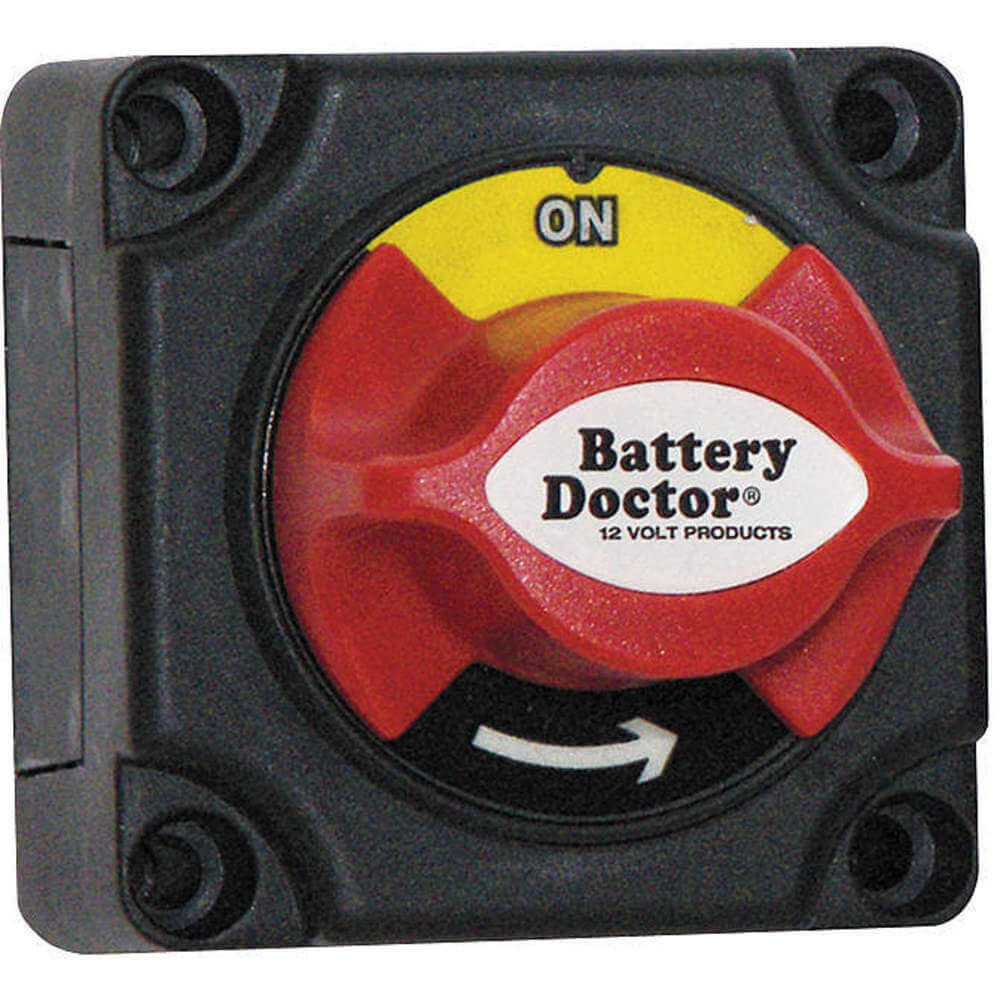

BATTERY DOCTOR 20387 Dial Battery Disconnect Switch 24 V
Item: AF2HLDModel: 20387Cross Ref: 6TXD8
7 In Stock
Ships within 2 days via
10.00% off
€102.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Battery Disconnect Switch |
| Connection Type | Threaded Studs |
| Contact Material | Copper |
| Continuous Amps | 300A |
| Cranking Current | 700A |
| Depth | 75 mm |
| Features | Removable Back Plate And 4 Side Knock Out Plates For Battery Cables, Removable Knob |
| Intermittent Current | 1000A |
| Length | 69 mm |
| Max. Amps | 1000A |
| Max. Voltage | 24V |
| Maximum Current | 300A |
| Maximum Operating Temperature | 185°F |
| Maximum Voltage | 12V |
| Minimum Operating Temperature | -40°F |
| Number Of Positions | 2 |
| Overall Depth | 3" |
| Overall Length | 2 3/4" |
| Overall Width | 2 3/4" |
| Polarity | Negative |
| Stud Size | 10 mm |
| Switch Location | In Line |
| Switch Type | In Line Rotary |
| Type | Dial Switch |
| Width | 69 mm |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 8.89 |
| HS code | 8536509065 |
| Country of Origin | TW |
Product Variants
| Product | Model | Connection Type | Material | Connection Material | Switch Type | Stud Size | Max. Amps | Max. Voltage | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20148 | Threaded Studs | Brass, Copper | - | Top Post Knife Blade | 5/16"-18 | 250A | - | Top Terminal | €93.10 | |
 |
20304 | Threaded Studs | Brass, Metal | Brass | Knob | 10 mm | 100A | 12V | Inline Terminal | €89.90 | |
 |
20308 | Bolt | Brass | Brass | Top Post | - | 125A | 12V | Top Terminal | €28.27 | |
 |
20309 | Bolt | Brass | Brass | Top Post | - | 125A | 12V | Top Terminal | €50.63 | |
 |
20314 | Bolt | Copper, Plastic | Copper | In Line Rotary | 10 mm | 100A | 12V | Inline Terminal | €63.60 | |
 |
20259 | Threaded Studs | Brass | Brass | In Line Rotary | 10 mm | 250A | 12V | Inline Terminal | €265.22 | |
 |
20302 | Bolt | Copper, Plastic | Copper | In Line Push Button | - | 16A | 12V | Inline Terminal | €14.13 |
