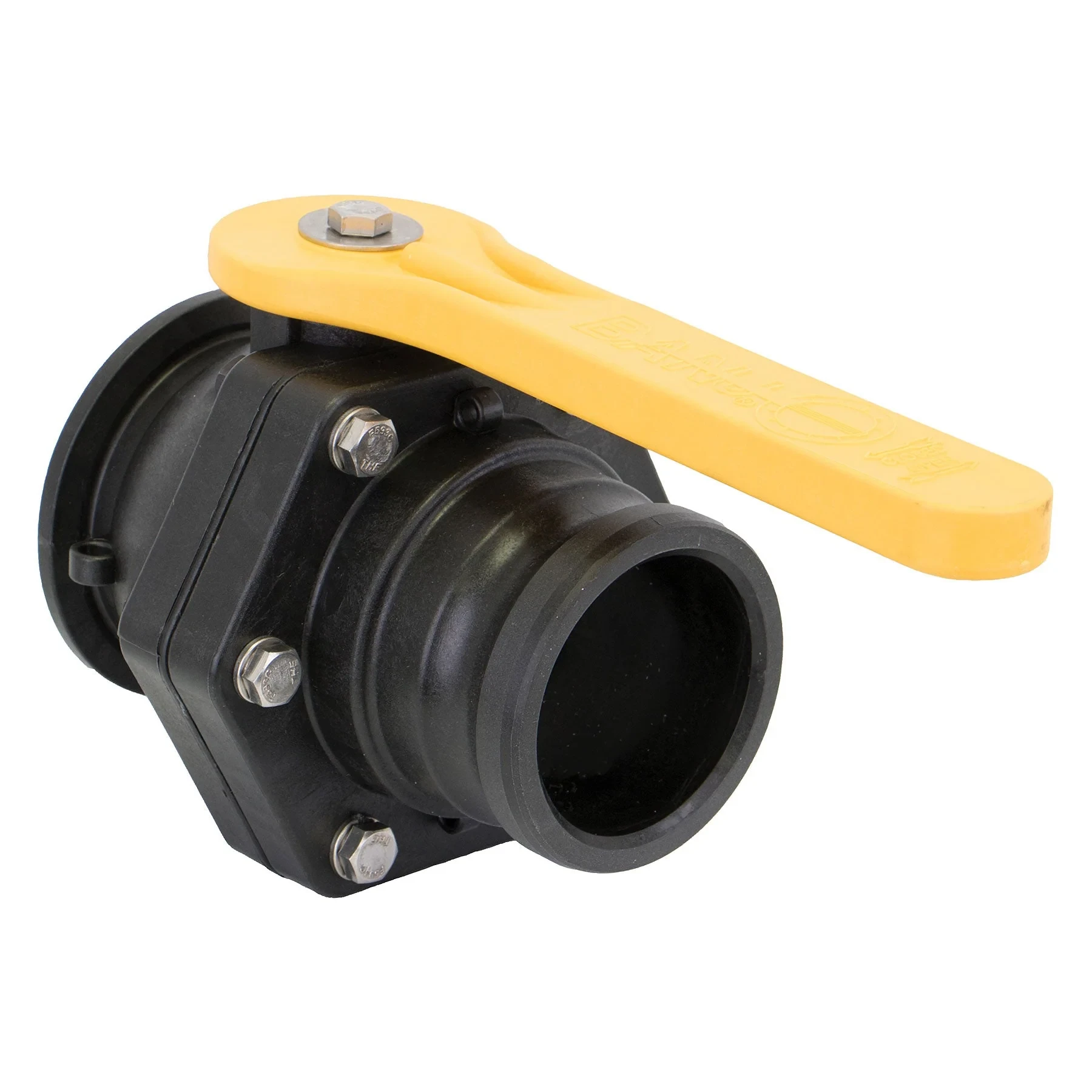

BANJO FITTINGS MVSF300 Bolted Stubby Valve, 3 Inch, Polypropylene
Item: BW9QHDModel: MVSF300Cross Ref: 803HW3
7 In Stock
Ships within 2 days via
10.00% off
€257.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Polypropylene |
| Ball Port Style | Standard Port |
| Body Material | Polypropylene |
| Connection Gender - Side 2 | Male |
| Connection Size - Side 1 | 3" |
| Connection Size - Side 2 | 3" |
| Connection Type | Flange x Male Adapter |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Camlock |
| For Media | Corrosive Chemicals, Water |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Length | 9 1/4" |
| Handle Material | Polypropylene |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 100 psi |
| Media Temp. Range | 0°F to 150°F |
| Nominal Valve Size | 3" |
| Overall Length | 6.75" |
| Pipe Size | 3" |
| Product Datasheet | banjo-fittings-mvsf300.pdf |
| Seal Material | FKM |
| Seat Material | PTFE |
| Size | 3" |
| Special Features | Stubby Valve |
| Stem Material | Polypropylene |
| Stem Type | Self Lubricating |
| Style | Stubby |
| Type | Valves |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Size | 3" |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 1.47 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Overall Length | Connection Type | Max. Operating Pressure | Body Material | Valve Size | Ball Material | Seat Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

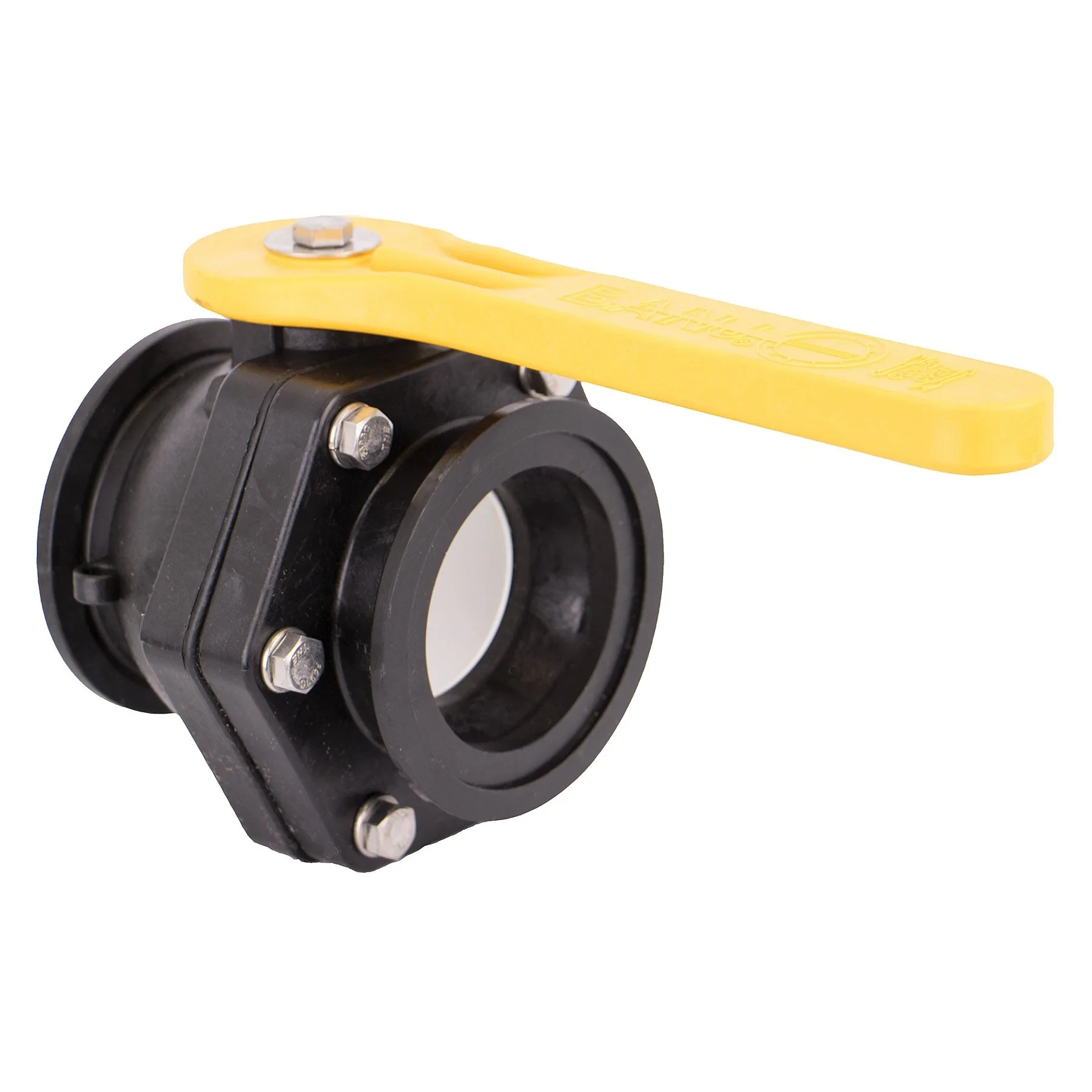

MVS300CF | 5.03" | Flange x Flange | 200 psi | Polypropylene | 3" | Polypropylene | PTFE | FKM | €285.56 | |
 |

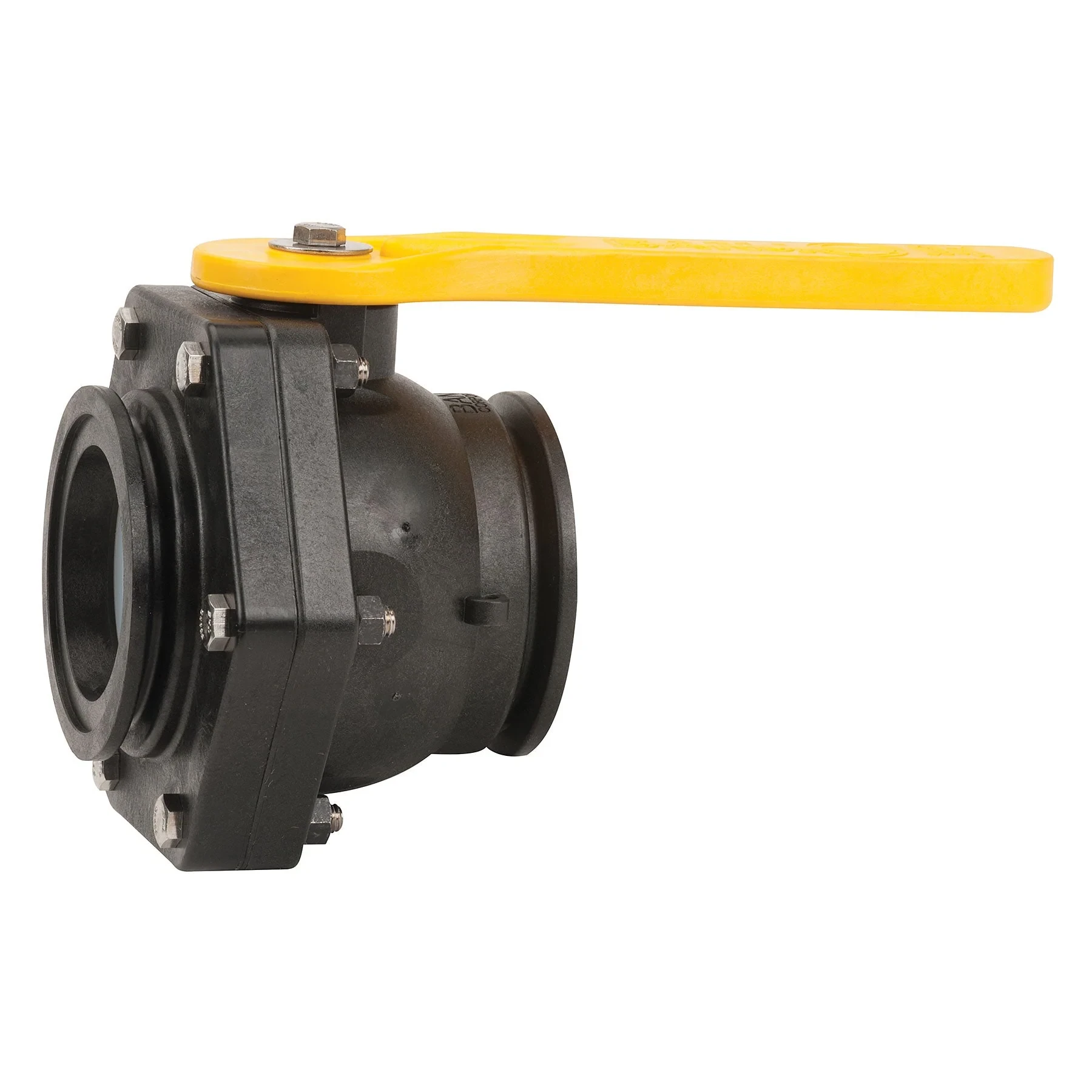

MVS300CFFP | 5.41" | Flange x Flange | 150 psi | Polypropylene | 3" | Polypropylene | PTFE | FKM | €339.08 | |
 |

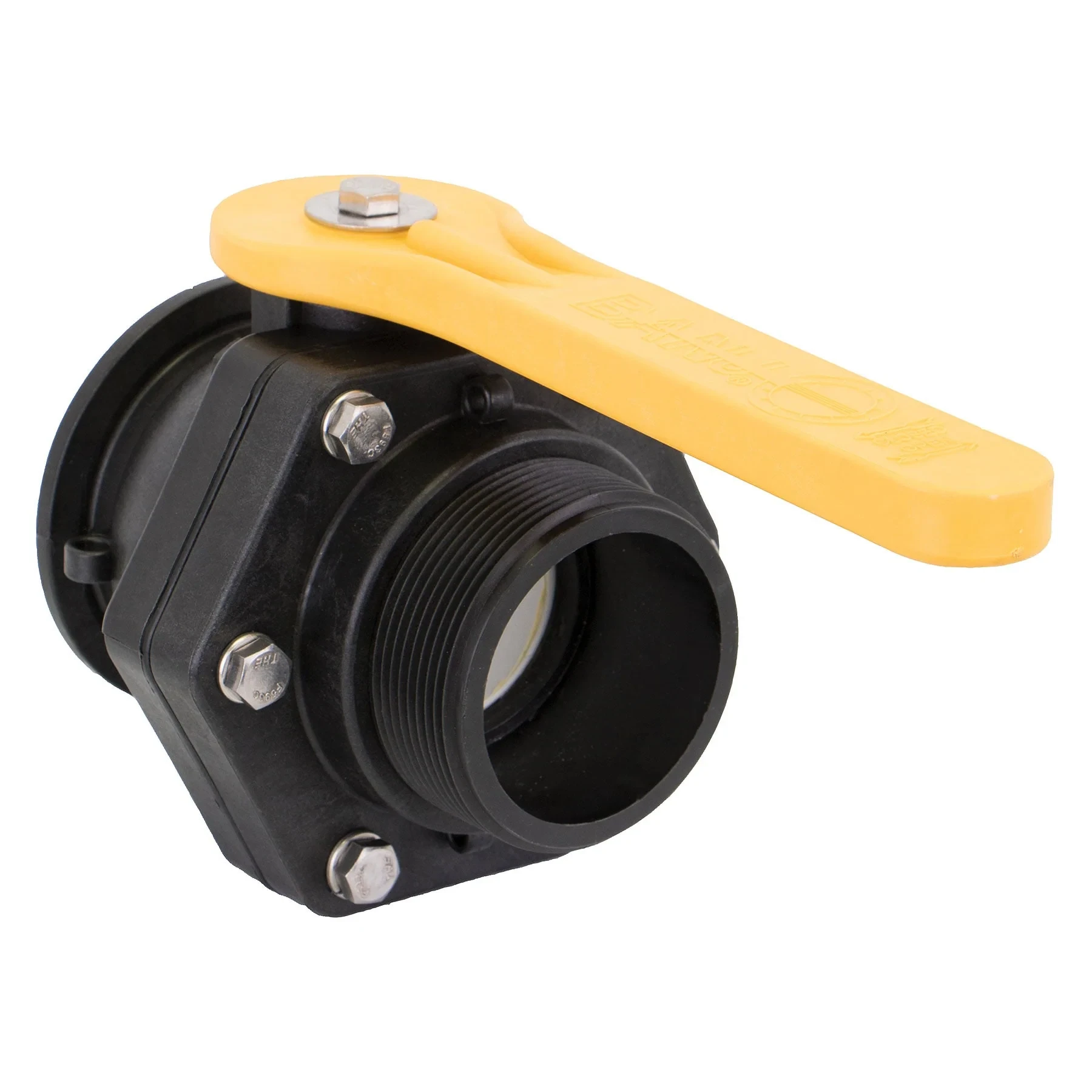

MVSMT300 | 5.91" | Flange x MNPT | 100 psi | Polypropylene | 3" | Polypropylene | PTFE | FKM | €386.73 | |
 |

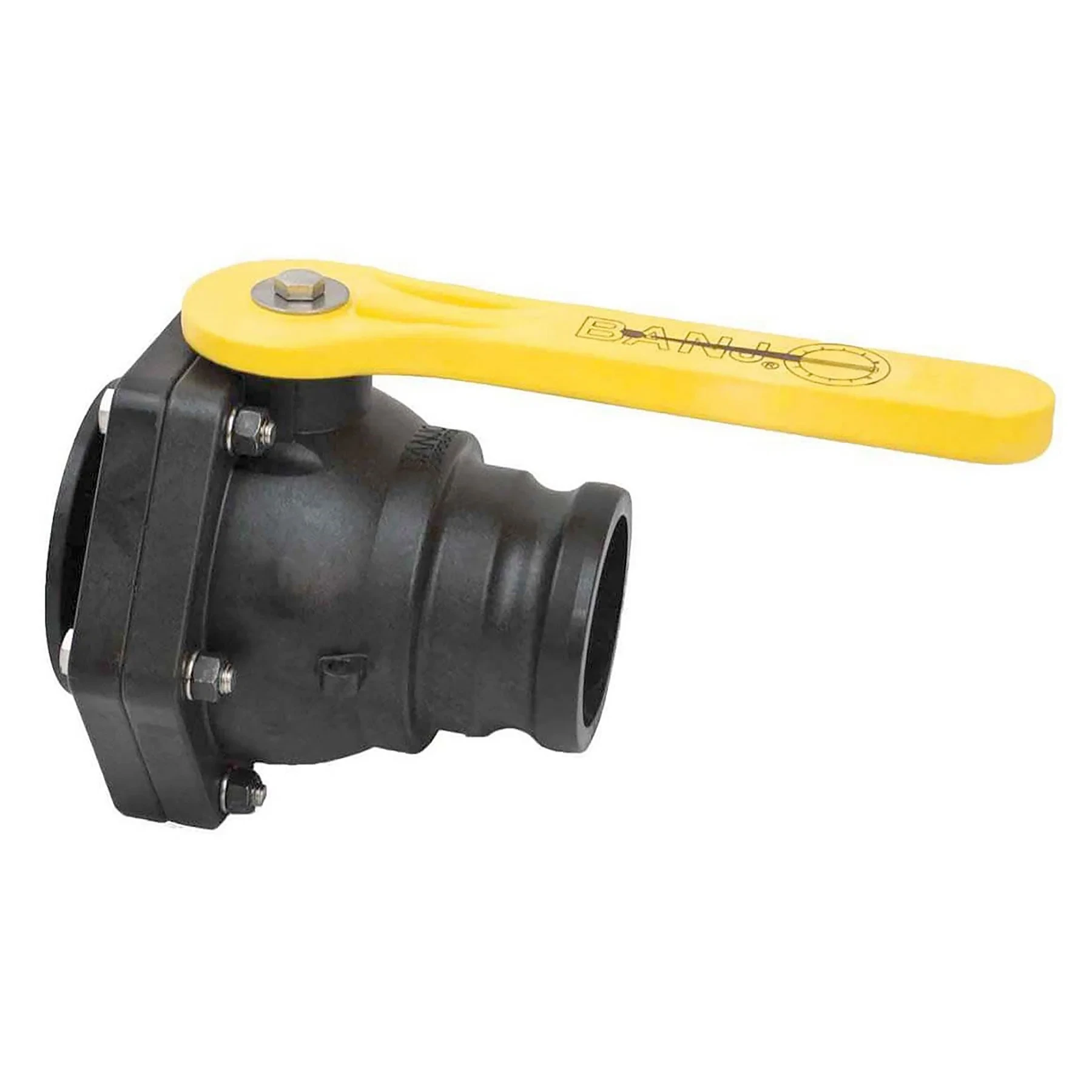

MVSF300FP | 7" | - | - | Polypropylene | 3" | Polypropylene | PTFE | FKM | €347.10 |
