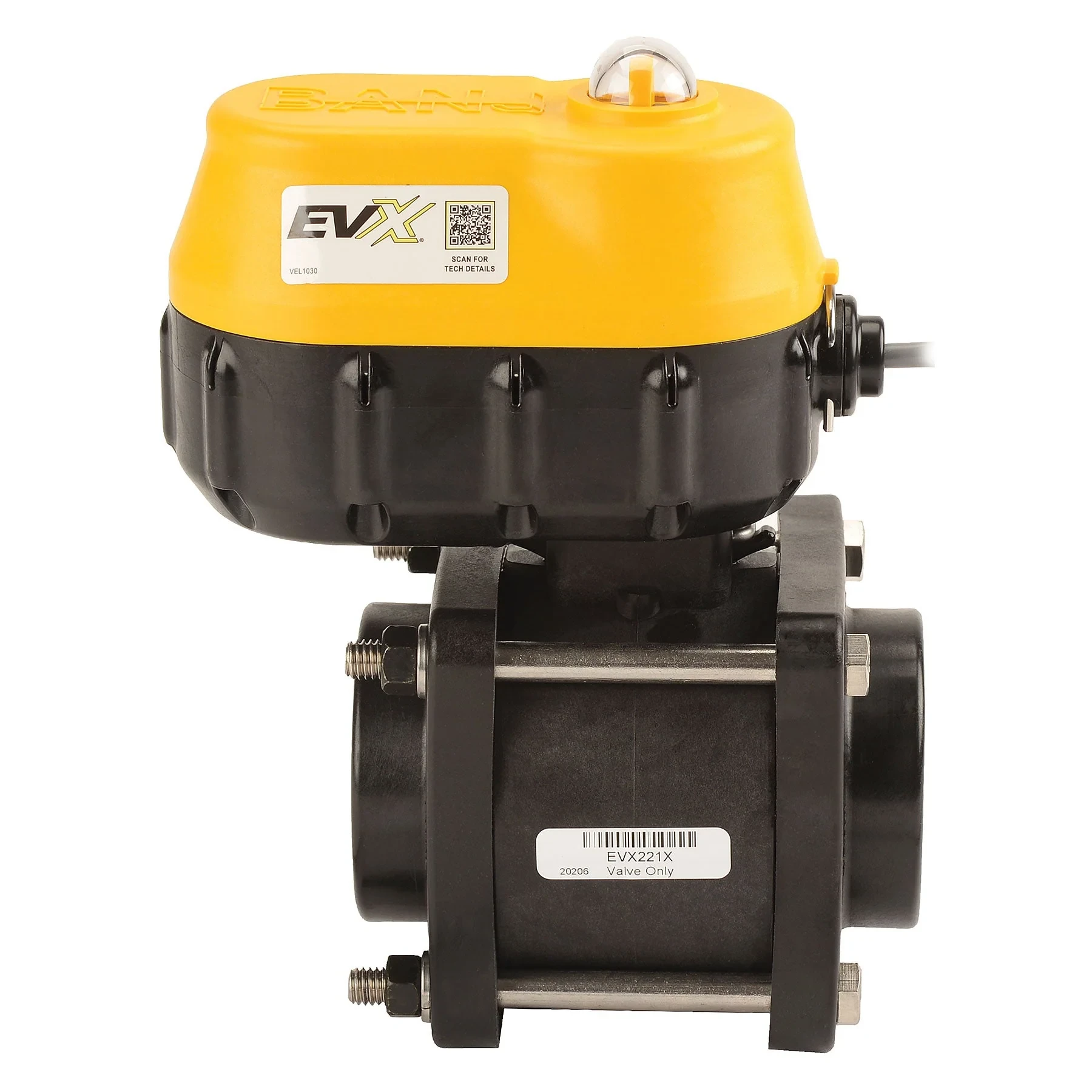

BANJO FITTINGS EVX201 Electronic Actuated Ball Valve, 2 Inch Pipe Size, 250 psi, 12V DC, PTFE Seat
Item: CJ2CFHModel: EVX201Cross Ref: 60JK95
7 In Stock
Ships within 2 days via
10.00% off
€1,162.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Actuated Ball Valve |
| 3-a Compliance | Not Rated |
| Actuator Cycle Time - 90° | 1.5 sec. |
| Actuator Duty Cycle | 100% |
| Actuator Features | Internally Fused, Automatic Reset, Position Indicator |
| Actuator Motor Type | Reversing |
| Actuator Operation | 90° |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Grade 316 |
| Ball Material Grade | Stainless Steel |
| Ball Port Style | Standard Port |
| Body Material | Glass-Filled Polypropylene |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Fail Safe Position | Fail Last |
| Family | Electric Valves |
| For Media | Corrosive Chemicals, Water |
| Ip Rating | IP68 |
| Max. Media Temperature | 150°F |
| Max. Pressure (cwp) | 250 psi |
| Max. Pressure Differential | 250 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Maximum Pressure - Steam | Not Applicable |
| Media Temp. Range | 0°F to 150°F |
| Min. Media Temperature | 0°F |
| Nema Enclosure Rating | NEMA 6P |
| Nominal Valve Size | 2" |
| Overall Length | 4.63" |
| Pipe Schedule Compatibility | Not Applicable |
| Seal Material | FKM |
| Seat Material | PTFE |
| Size | 2 |
| Special Features | Not Applicable |
| Stem Material | 316 Stainless Steel |
| Style | On/Off |
| Type | Standard |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Deactivated State | normally Closed (NC) |
| Valve Ways | 2-Way |
| Voltage | 12V DC |
Shipping Info:
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Valve Size | Number Of Ways | Seal Material | Size | Type | Style | Response Time | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EV100FP | 1" | - | EPDM | - | - | - | - | 12V DC | €714.23 | |
 |
LEV051 | - | - | - | - | Standard | - | - | - | €221.34 | RFQ
|
|
LEV052 | - | - | - | - | Standard | - | - | - | €170.17 | RFQ
|
|
MEV10354AB | - | - | - | 3/4" to 1 1/4" | - | - | - | - | €19.52 | RFQ
|
|
EV075BLXR1 | 3/4" | - | - | - | - | - | - | - | €223.38 | |
|
EV075SLXR1 | 3/4" | - | - | - | - | Side Load | - | - | €223.38 | |
 |
EV100BLXR1 | 1" | - | - | 1" | - | Bottom Load | - | - | €223.38 |
