BALDOR MOTOR ZDVSNCP3584T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 1.5 hp, 3 Phase, TENV, 145TC Frame | AJ6ZTF

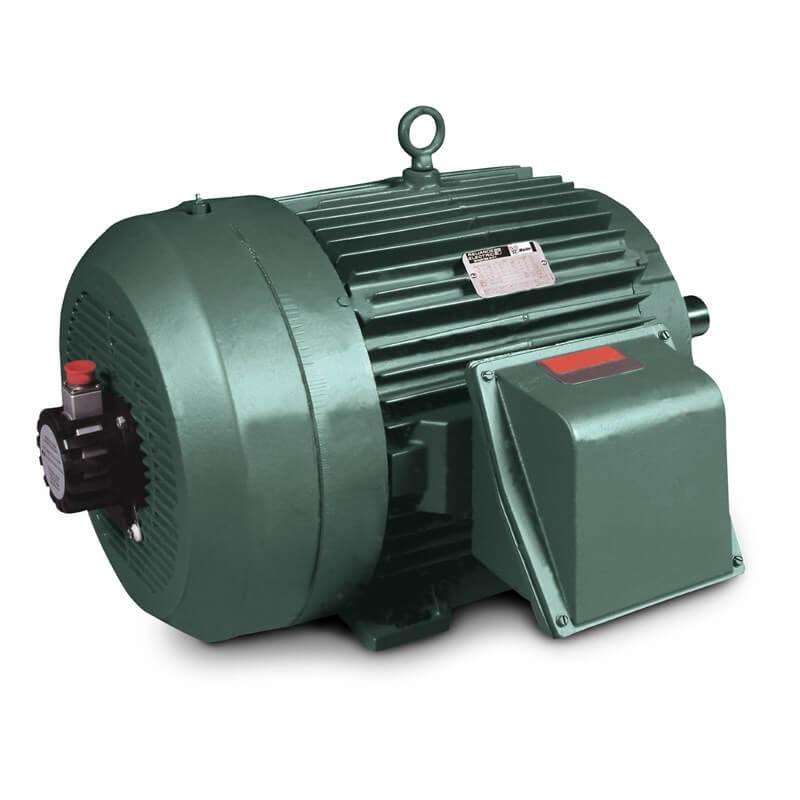

BALDOR MOTOR ZDVSNCP3584T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 1.5 hp, 3 Phase, TENV, 145TC Frame

Item: AJ6ZTFModel: ZDVSNCP3584T
Check Availability
In Stock

Get it by Thursday, Dec 18

€5,196.35 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Vector Motor
Ac/dc AC
Ambient Temp. 40°C
Base Indicator Rigid
Base Rpm 1800 RPM
Base Type Rigid Base
Break-down Torque 20.8 lbs.-ft.
Conduit Box Material Cast Iron
Conduit Box Position F1
Constant Torque 1000:1
Design Code B
Duty Continuous
Enclosure Design TENV
Frame 145TC
Frame Material Iron
Frame Size 145TC
Frequency 60 Hz
Full Load Amps 4.2/2.1A
Full Load Torque 4.45 ft.-lbs.
Full Load Torque 4.45 lbs.-ft.
Hp 1 1/2 hp
Insulation Class Class H
Inverter Code Inverter Duty
Lead 9#18
Leads 9#18
Line-line Res. @ 25° C 8.44 ohms A Ph/0 ohms B Ph
Locked-rotor Torque 14.6 lbs.-ft.
Magnetizing Amps 2.4/1.2A
Max. Rpm 4500 RPM
Motor Enclosure Design Totally Enclosed Non Ventilated
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Type Three Phase
Mounting Type Rigid Base
Multiplier E2
Nema/iec NEMA
No Load Amps 1.17A
No. Of Motor Leads 9
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 86.5%
Overall Length 14.61"
Phase 3
Power Factor 72
Product Datasheet baldor-motor-zdvsncp3584t.pdf
Proprietary No
Pull-up Torque 11.7 lbs.-ft.
Pulley Face Code C Face
Revision F
Rpm 1700-1800 RPM
Service Factor 1
Shaft Dia. 7/8"
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Start Configuration DOL
Starting Amps 20A
Synchronous Rpm 1800 RPM
Type 0533M
Voltage 230/460V

Shipping Info:

Ship weight (kg) 32.4
Ship height (cm)38.42
Ship length (cm)54.93
Ship width (cm)40.96
HS code85015220
Country of OriginUS

Product Details:

    • Explosion Proof Class/Group: NONE
    • Locked-Rotor Torque: 14.6 LB-FT
    • Nameplate No.: NP1167L
    • Pull-Up Torque: 11.7 LB-FT
    • SL Hz: 1.5
    • Starting Current: 20 Amps

Documentation:

Datasheet

Product Variants

ProductModelHpFrameFull Load AmpsVoltageNominal EfficiencyNameplate RpmFrame MaterialOverall LengthPrice
BALDOR MOTOR ZDVSCP2333T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 15 hp, 3 Phase, TEFC, 254TC Frame | AJ6ZQZ ZDVSCP2333T15 hp254TC36/18A230/460V92.4%-Iron28.14"€10,591.92
BALDOR MOTOR ZDVSCP2334T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 20 hp, 3 Phase, TEFC, 256TC Frame | AJ6ZRA ZDVSCP2334T20 hp256TC48/24A230/460V93%-Iron28.14"€11,248.74
BALDOR MOTOR ZDVSCP3661T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 3 hp, 3 Phase, TEFC, 182TC Frame | AJ6ZRB ZDVSCP3661T3 hp182TC8.2/4.1A230/460V89.5%-Iron20.23"€6,436.77
BALDOR MOTOR ZDVSCP3665T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 5 hp, 3 Phase, TEFC, 184TC Frame | AJ6ZRC ZDVSCP3665T5 hp184TC13.2/6.6A230/460V89.5%1750 RPMIron20.23"€6,983.76
BALDOR MOTOR ZDVSCP3770T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 7.5 hp, 3 Phase, TEFC, 213TC Frame | AJ6ZRD ZDVSCP3770T7 1/2 hp213TC19/9.5A230/460V91.7%1770 RPMIron25.03"€8,090.65
BALDOR MOTOR ZDVSCP3774T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 10 hp, 3 Phase, TEFC, 256TC Frame | AJ6ZRE ZDVSCP3774T10 hp215TC25/12.5A230/460V92.4%-Iron25.03"€8,854.06
BALDOR MOTOR ZDVSCP4103T Severe Duty Motor, 230/460V, 1800 RPM, 60 Hz, 25 hp, 3 Phase, TEFC, 284TC Frame | AJ6ZRF ZDVSCP4103T25 hp284TC60/30A230/460V93.6%1775 RPMIron30.79"€13,456.05
