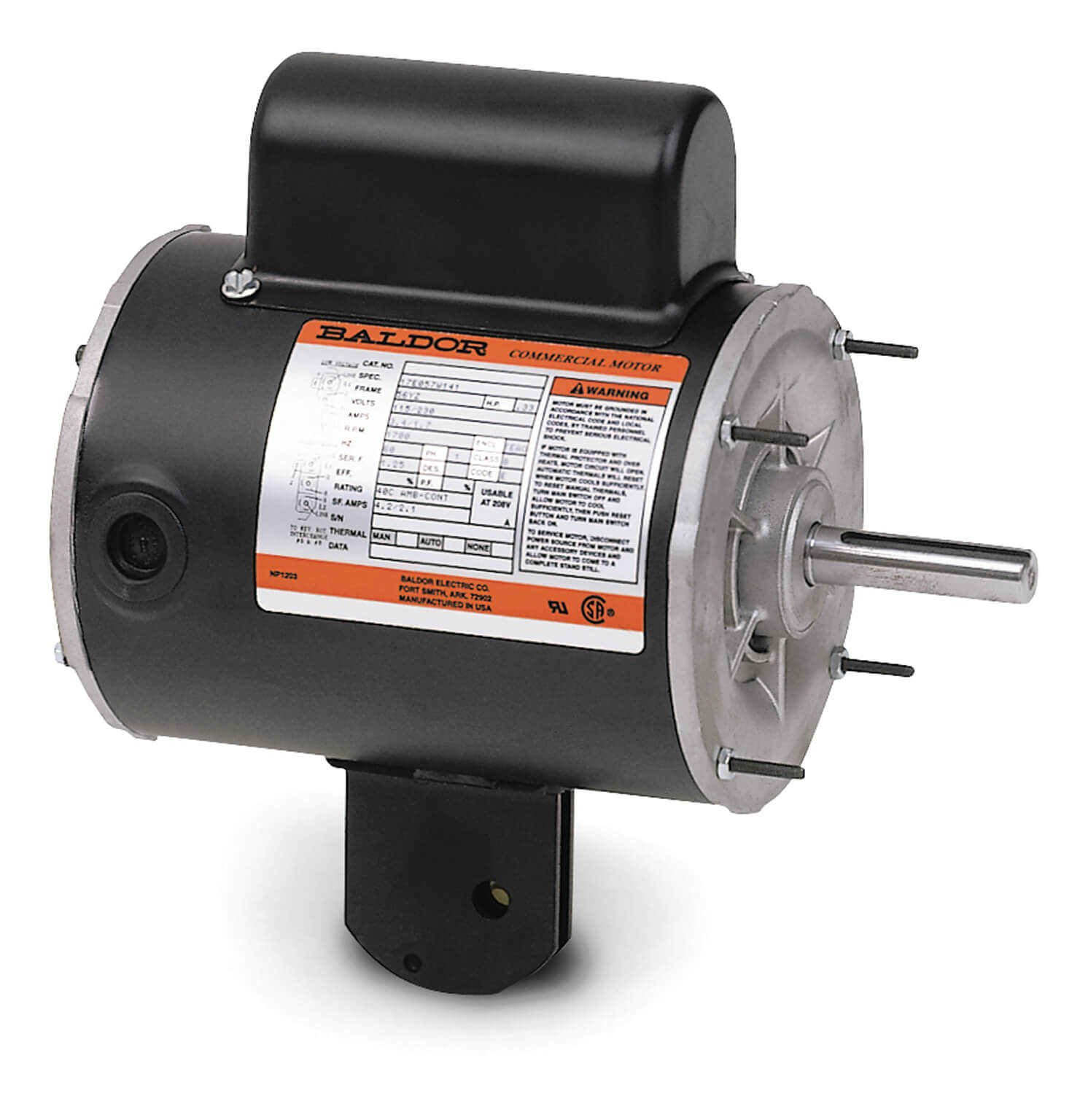

BALDOR MOTOR YPC164A Direct Drive Fan Motor, 115V, 1200 RPM, 60 Hz, 0.25 hp, 1 Phase, TEAO, 48YZ Frame
Get it by Tuesday, Dec 23
€533.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 3.7A |
| Auto | Yes |
| Base Indicator | Yoke Pedestal |
| Base Style | YP |
| Break-down Torque | 1.7 lbs.-ft. |
| Capacitor Required | Yes |
| Class | Stock |
| Code | C |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 55% |
| Enclosure Design | TEAO |
| Frame | 48YZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.7A |
| Full Load Efficiency | 62% |
| Full Load Torque | 1.2 ft.-lbs. |
| Full Load Torque | 1.2 lbs.-ft. |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Lead | 5#18 |
| Line-line Res. @ 25° C | 5.18 ohms A Ph/73.4 ohms B Ph |
| Locked-rotor Torque | 0.5 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Extended Studs, Pedestal Mounted |
| Multiplier | C1 |
| Nameplate Rpm | 1075 RPM |
| Nema/iec | NEMA |
| No Load Amps | 2.6A |
| No. Of Motor Leads | 5 |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Overall Length | 10.68" |
| Phase | 1 |
| Product Datasheet | baldor-motor-ypc164a.pdf |
| Proprietary | No |
| Pull-up Torque | 0.4 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | N |
| Rpm | 1075 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible, Connected Standard |
| Start Configuration | DOL |
| Starting Amps | 7.8A |
| Synchronous Rpm | 1200 RPM |
| Thermal Protection | Automatic |
| Type | 1710C |
| Voltage | 115V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85013100 |
| Country of Origin | US |
Product Details:
- Locked-Rotor Torque: 0.5 LB-FT
- Nameplate No.: NP1203A03
- Pull-Up Torque: 0.4 LB-FT
- Starting Current: 7.8 Amps
Documentation:
Product Variants
| Model | Hp | Nameplate Rpm | Frame | Shaft Dia. | Full Load Amps | Overall Length | Full Load Efficiency | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| YPC144A | 1/4 hp | 1625 RPM | 48YZ | 1/2" | 3.5A | 10.68" | 67% | 4 | €470.28 | |
| YPC244A | 1/3 hp | 1625 RPM | 48YZ | 1/2" | 3.9A | 10.68" | 66% | 4 | €508.75 | |
| YPC245A | 1/3 hp | 1625 RPM | 56YZ | 5/8" | 3.9A | 10.68" | 66% | 4 | €516.44 | |
| YPC264A | 1/3 hp | 1075 RPM | 48YZ | 1/2" | 4.7A | 10.68" | 66% | 6 | €584.72 | |
| YPC344A | 1/2 hp | 1625 RPM | 48YZ | 1/2" | 5.6A | 10.68" | 70% | 4 | €584.72 | |
| YPC345A | 1/2 hp | 1625 RPM | 56YZ | 5/8" | 5.6A | 10.68" | 70% | 4 | €592.42 | |
| YPC364A | 1/2 hp | 1075 RPM | 48YZ | 1/2" | 5.6A | 11.31" | 68% | 6 | €668.39 |
