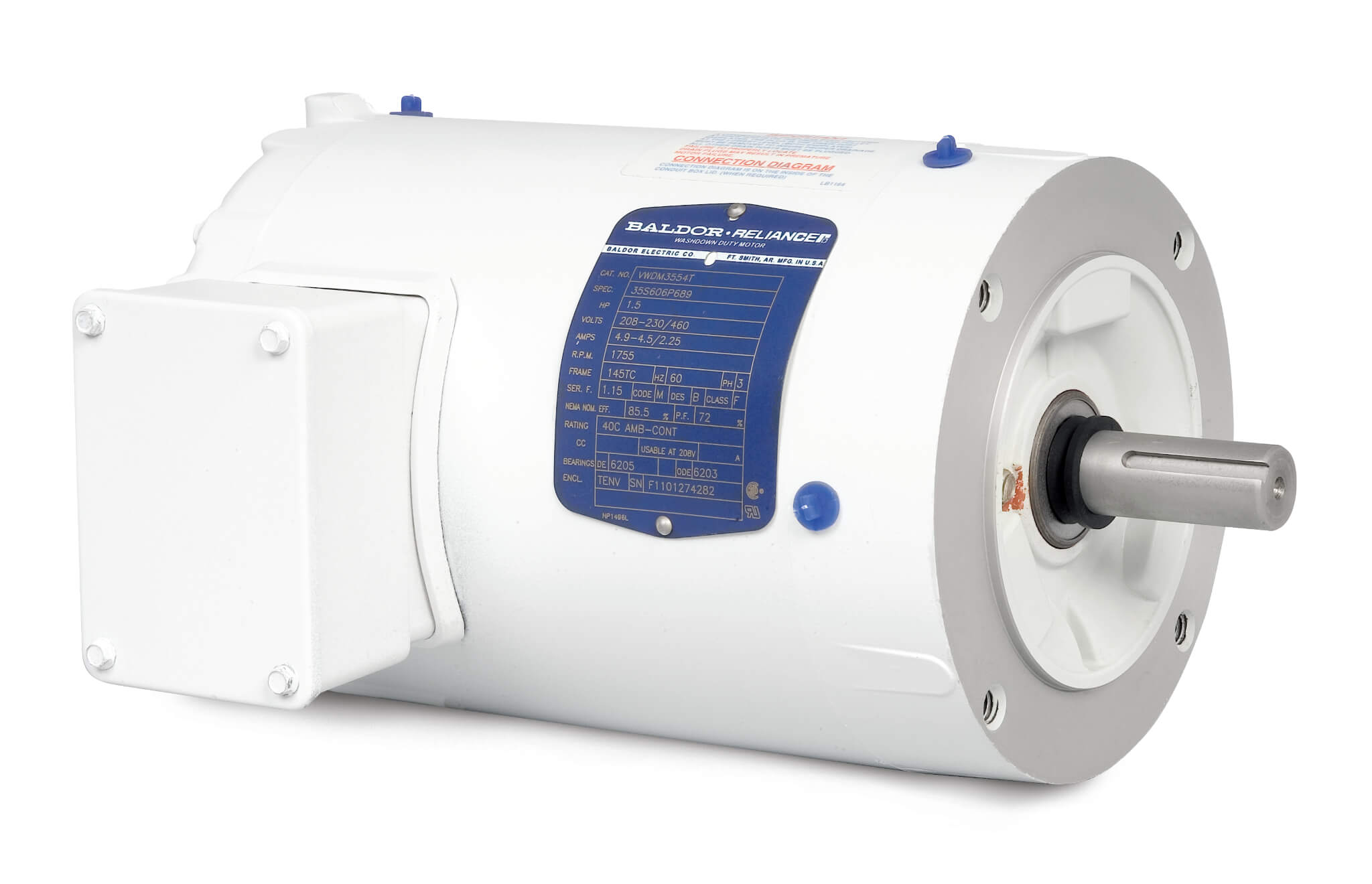

BALDOR MOTOR VWDM3542-5 White Washdown Motor, 575V, 1800 RPM, 0.75 hp, 3 Phase, TENV, 56C Frame | AJ6ZKU

BALDOR MOTOR VWDM3542-5 White Washdown Motor, 575V, 1800 RPM, 0.75 hp, 3 Phase, TENV, 56C Frame

Item: AJ6ZKUModel: VWDM3542-5
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,099.04 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ac/dc AC
Ambient Temp. 40°C
Amps 0.9A
Base None
Base Type Not Applicable
Break-down Torque 9.52 lbs.-ft.
Code M
Color White
Conduit Box Material Steel
Conduit Box Position F1
Design Code B
Duty Continuous
Enclosure Design TENV
Finish Epoxy Coated
Frame 56C
Frame Material Steel
Frame Size 56C
Frequency 60 Hz
Full Load Amps 0.9A
Full Load Torque 2.24 lbs.-ft.
Full Load Torque 2.24 ft.-lbs.
Hp 3/4 hp
Insulation Class Class F
Inverter Code Not Inverter
Lead 3#18
Line-line Res. @ 25° C 36.4 ohms A Ph/0 ohms B Ph
Locked-rotor Torque 6.99 lbs.-ft.
Motor Enclosure Design Totally Enclosed Non Ventilated
Mounting Type C Face, Footless
Multiplier WD
Nameplate Rpm 1750 RPM
Nema/iec NEMA
No Load Amps 0.622A
No. Of Motor Leads 3
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 80%
Overall Length 11.06"
Phase 3
Power Factor 71
Product Datasheet baldor-motor-vwdm3542-5.pdf
Proprietary No
Pull-up Torque 6.08 lbs.-ft.
Pulley Face Code C Face
Revision A
Rpm 1700-1800 RPM
Service Factor 1.25
Shaft Dia. 5/8"
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Start Configuration DOL
Starting Amps 7.73A
Synchronous Rpm 1800 RPM
Temp. Rise @ Rated Load 63°C
Temp. Rise @ S. F. Load 79°C
Type 3516M
Voltage 575V
Wire Size 18 AWG

Shipping Info:

Ship weight (kg) 14.4
Ship height (cm)28.26
Ship length (cm)41.91
Ship width (cm)29.21
HS code85015100
Country of OriginUS

Product Details:

    • Explosion Proof Class/Group: NONE
    • Locked-Rotor Torque: 6.99 LB-FT
    • Nameplate No.: NP1256L
    • Pull-Up Torque: 6.08 LB-FT
    • Starting Current: 7.73 Amps

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpNameplate RpmFrameFull Load AmpsInsulation ClassService FactorShaft Dia.Price
BALDOR MOTOR VEFWDM3546 White Washdown Motor, 230/460V, 1800 RPM, 1 hp, 3 Phase, TEFC, 56C Frame | AJ6YJV VEFWDM3546230/460V1 hp1760/1770 RPM56C1.5AClass F1.155/8"€1,655.65
BALDOR MOTOR VEFWDM3546T White Washdown Motor, 230/460V, 1800 RPM, 1 hp, 3 Phase, TEFC, 143TC Frame | AJ6YJW VEFWDM3546T208-230/460V1 hp1760/1770 RPM143TC3.1-3/1.5AClass F1.157/8"€1,667.96
BALDOR MOTOR VEFWDM3554T White Washdown Motor, 230/460V, 1800 RPM, 1.5 hp, 3 Phase, TEFC, 145TC Frame | AJ6YJX VEFWDM3554T208-230/460V1 1/2 hp1760 RPM145TC4.5-4.4/2.2AClass F1.157/8"€1,789.13
BALDOR MOTOR VEWDM3538 White Washdown Motor, 230/460V, 1800 RPM, 0.33 hp, 3 Phase, TENV, 56C Frame | AJ6YWU VEWDM3538208-230/460V1/2 hp1765/1770 RPM56C1.9-1.8/0.9AClass F1.155/8"€1,352.74
BALDOR MOTOR VEWDM3542 White Washdown Motor, 230/460V, 1800 RPM, 0.75 hp, 3 Phase, TENV, 56C Frame | AJ6YWV VEWDM3542230/460V3/4 hp1750/1765 RPM56C2.28/1.14AClass F1.255/8"€1,489.05
BALDOR MOTOR VEWDM3546 White Washdown Motor, 230/460V, 1800 RPM, 1 hp, 3 Phase, TENV, 56C Frame | AJ6YWW VEWDM3546208-230/460V1 hp1770 RPM56C1.7AClass F1.155/8"€2,686.86
BALDOR MOTOR VEWDM3546T White Washdown Motor, 230/460V, 1800 RPM, 1 hp, 3 Phase, TENV, 143TC Frame | AJ6YWX VEWDM3546T208-230/460V1 hp1770 RPM143TC1.7AClass F1.157/8"€2,801.96
