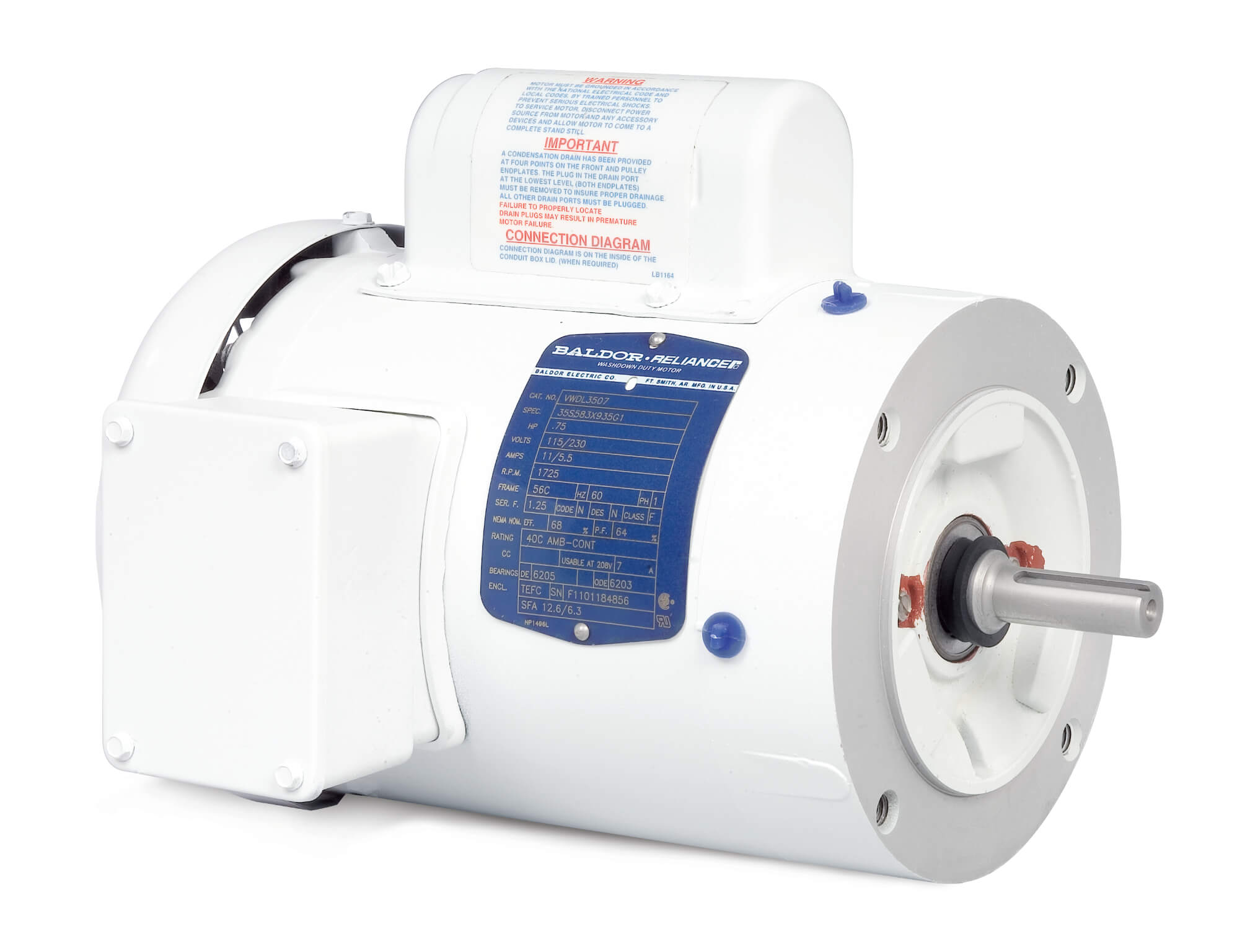

BALDOR MOTOR VWDL3504 White Washdown Motor, 115/230V, 1800 RPM, 60 Hz, 0.5 hp, TEFC, 56C Frame
Get it by Wednesday, Aug 26
5.00% off
€1,277.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 7.4/3.7A |
| Amps @ 208v | 4.1A |
| Application | Washdown |
| Base | None |
| Base Indicator | None |
| Base Type | Not Applicable |
| Bearing Type | Sealed |
| Body Dia. | 6 3/5" |
| Bolt Circle Dia. | 5 7/8" |
| Break Down Torque | 4.62 lbs.-ft. |
| Code | M |
| Color | White |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | N |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Design | TEFC |
| Finish | Epoxy Coating |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 3.5A |
| Full Load Torque | 1.51 ft.-lbs. |
| Full Load Torque | 1.51 lbs.-ft. |
| Hp | 1/2 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 6#18 |
| Length Less Shaft | 10 3/8" |
| Line-line Res. @ 25°c | 4.0781 ohms A Ph/2.4038 ohms B Ph |
| Locked Rotor Torque | 5.49 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Sealed |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Standard |
| Motor Shaft Rotation | CCW |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Sub Application | Heavy Duty |
| Motor Thermal Protection | None |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Multiplier | WD |
| Nameplate Speed | 1740 RPM |
| Nema Design | N |
| Nema/iec | NEMA |
| No Load Amps | 2.89A |
| No. Of Motor Leads | 6 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 68% |
| Overall Length | 12 1/4" |
| Phase | 1 |
| Power Factor | 70 |
| Product Datasheet | baldor-motor-vwdl3504.pdf |
| Product Type | Washdown Motor |
| Proprietary | No |
| Pull Up Torque | 3.69 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | B |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 1 7/8" |
| Shaft Rotation | Reversible |
| Speed | 1700-1800 RPM |
| Start Configuration | DOL |
| Starting Amps | 22.6A |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80°C |
| Temp. Rise @ Rated Load | 67°C |
| Temp. Rise @ S. F. Load | 80°C |
| Thermal Protection | None |
| Type | 3520L |
| Usable @ 208v | Yes |
| Voltage | 115/230V |
| Wire Size | 18 AWG |
| Xp Class And Group | None |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85013100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 5.49 LB-FT
- Nameplate No.: NP1496L
- Pull-Up Torque: 3.69 LB-FT
- Starting Current: 22.6 Amps
Documentation:
Product Variants
| Model | Hp | Full Load Amps | Nameplate Speed | Mounting Type | Nominal Efficiency | Type | Amps | Full Load Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VWDL3507 | 3/4 hp | 10.6/5.3A | 1725 RPM | C Face, Footless | 66% | 3524L | 10.6/5.3A | 2.24 lbs.-ft. | €1,142.59 | |
| VWDL3510 | 1 hp | 11.8/5.9A | 1725 RPM | C Face, Footless | 70% | 3528L | 11.8/5.9A | 2.99 lbs.-ft. | €1,308.25 | |
| VWDL3514 | 1 1/2 hp | 12.4/6.2A | 1725 RPM | C Face, Footless | 80% | 3532LC | 12.4/6.2A | 4.48 lbs.-ft. | €1,569.51 |
