BALDOR MOTOR VEWDM3554 White Washdown Motor, 230/460V, 1800 RPM, 1.5 hp, 3 Phase, TENV, 56C Frame
Get it by Tuesday, Dec 23
€1,730.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 4.4-4.2/2.1A |
| Amps @ 208v | 4.4A |
| Base | None |
| Base Type | Not Applicable |
| Break-down Torque | 20.8 lbs.-ft. |
| Code | M |
| Color | White |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TENV |
| Finish | Epoxy Coated |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 4.4-4.2/2.1A |
| Full Load Torque | 4.45 ft.-lbs. |
| Full Load Torque | 4.45 lbs.-ft. |
| Hp | 1 1/2 hp |
| Insulation Class | Class H |
| Inverter Code | Inverter Duty |
| Lead | 9#18 |
| Line-line Res. @ 25° C | 8.44 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 14.6 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Mounting Type | C Face, Footless |
| Multiplier | WD |
| Nameplate Rpm | 1755/1770 RPM |
| Nema/iec | NEMA |
| No Load Amps | 1.17A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 12.93" |
| Phase | 3 |
| Power Factor | 72 |
| Product Datasheet | baldor-motor-vewdm3554.pdf |
| Proprietary | No |
| Pull-up Torque | 11.7 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | C |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 20A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise @ Rated Load | 77°C |
| Temp. Rise @ S. F. Load | 92°C |
| Type | 3533M |
| Voltage | 208-230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - VWDM3554
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 14.6 LB-FT
- Nameplate No.: NP1669L
- Pull-Up Torque: 11.7 LB-FT
- Starting Current: 20 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Full Load Amps | Insulation Class | Service Factor | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VEFWDM3546 | 230/460V | 1 hp | 1760/1770 RPM | 56C | 1.5A | Class F | 1.15 | 5/8" | €1,655.65 | |
 |

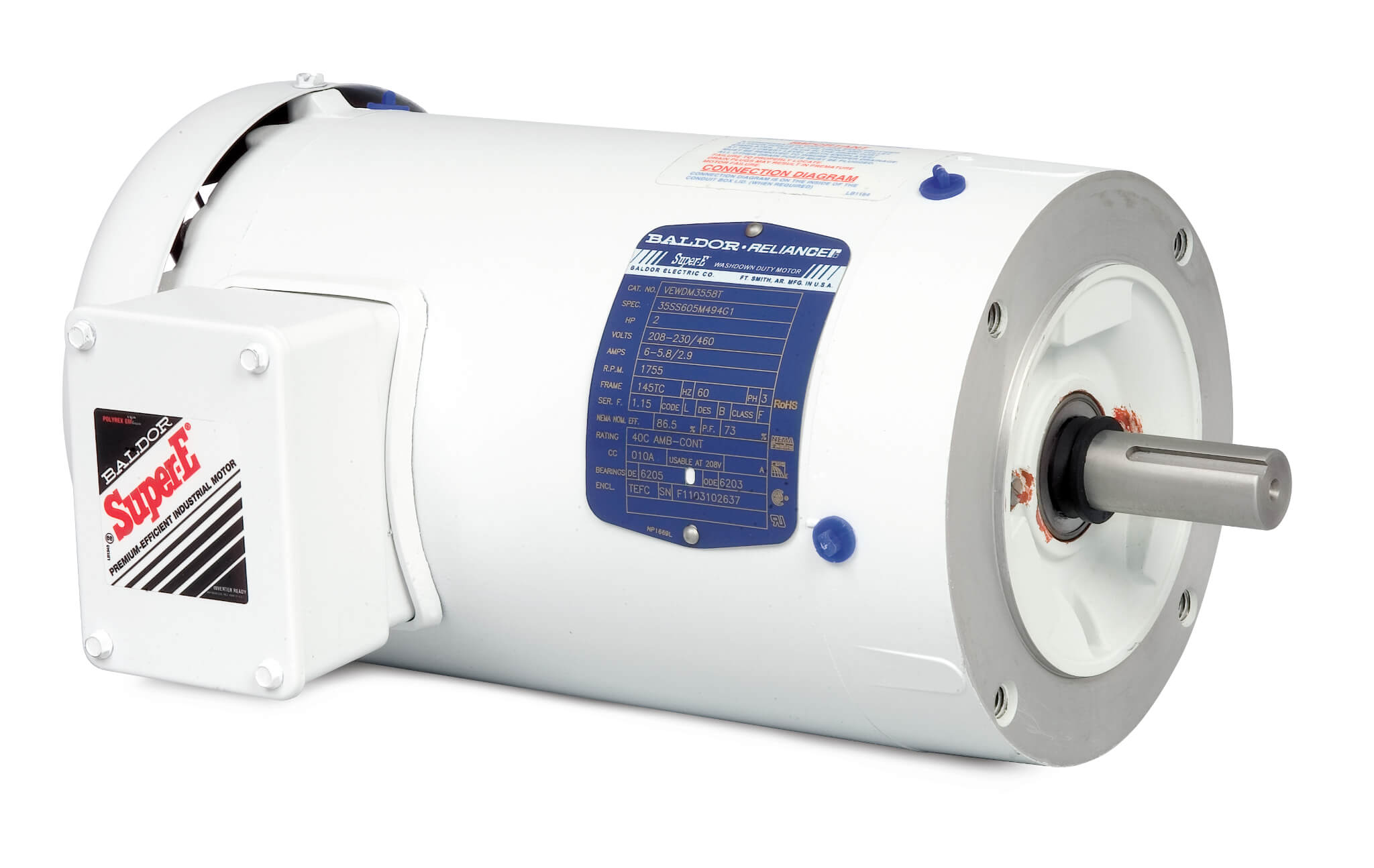

VEFWDM3546T | 208-230/460V | 1 hp | 1760/1770 RPM | 143TC | 3.1-3/1.5A | Class F | 1.15 | 7/8" | €1,667.96 | |
|
VEFWDM3554T | 208-230/460V | 1 1/2 hp | 1760 RPM | 145TC | 4.5-4.4/2.2A | Class F | 1.15 | 7/8" | €1,789.13 | |
|

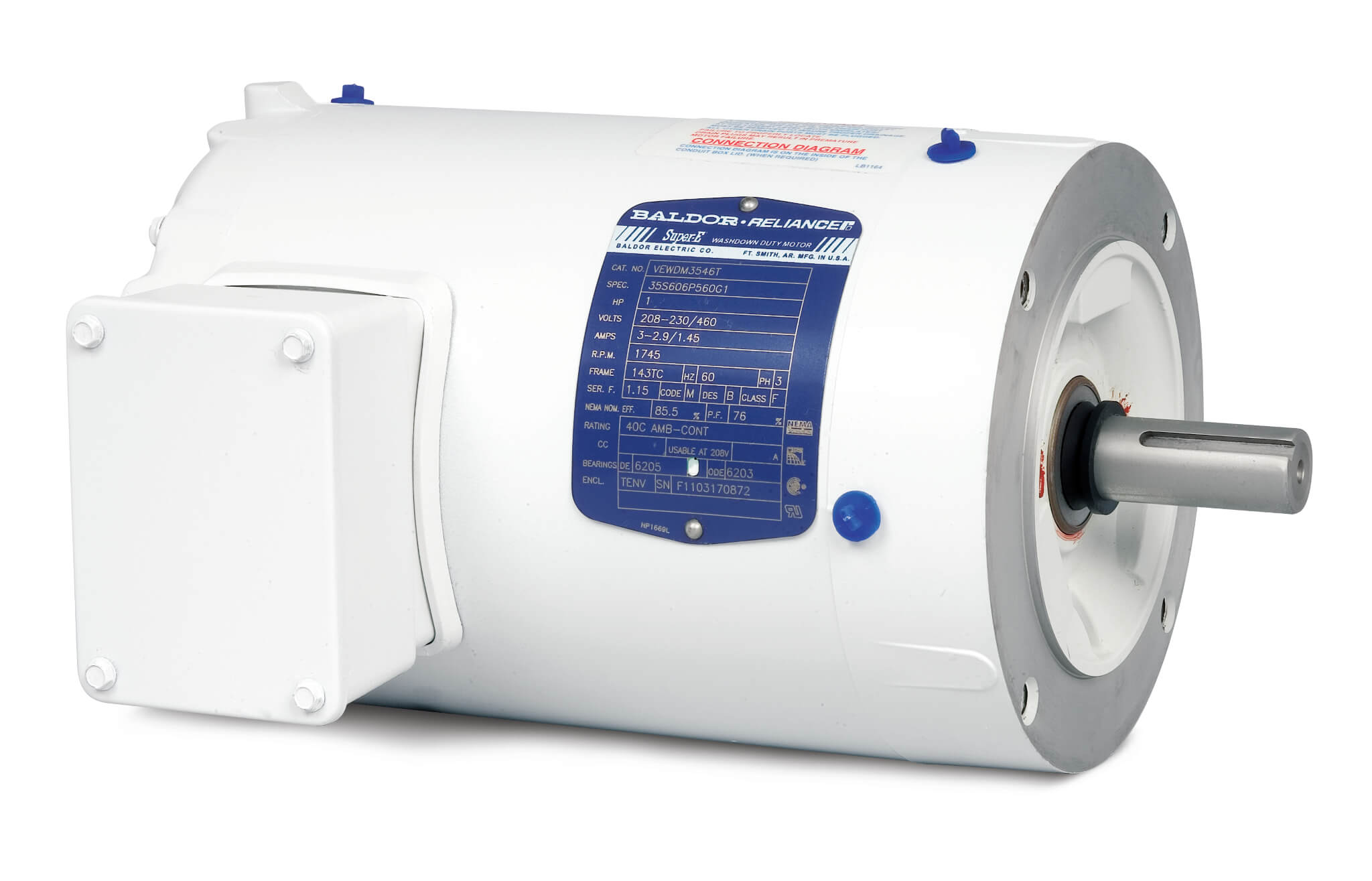

VEWDM3538 | 208-230/460V | 1/2 hp | 1765/1770 RPM | 56C | 1.9-1.8/0.9A | Class F | 1.15 | 5/8" | €1,352.74 | |
|
VEWDM3542 | 230/460V | 3/4 hp | 1750/1765 RPM | 56C | 2.28/1.14A | Class F | 1.25 | 5/8" | €1,489.05 | |
|
VEWDM3546 | 208-230/460V | 1 hp | 1770 RPM | 56C | 1.7A | Class F | 1.15 | 5/8" | €2,686.86 | |
|
VEWDM3546T | 208-230/460V | 1 hp | 1770 RPM | 143TC | 1.7A | Class F | 1.15 | 7/8" | €2,801.96 |
