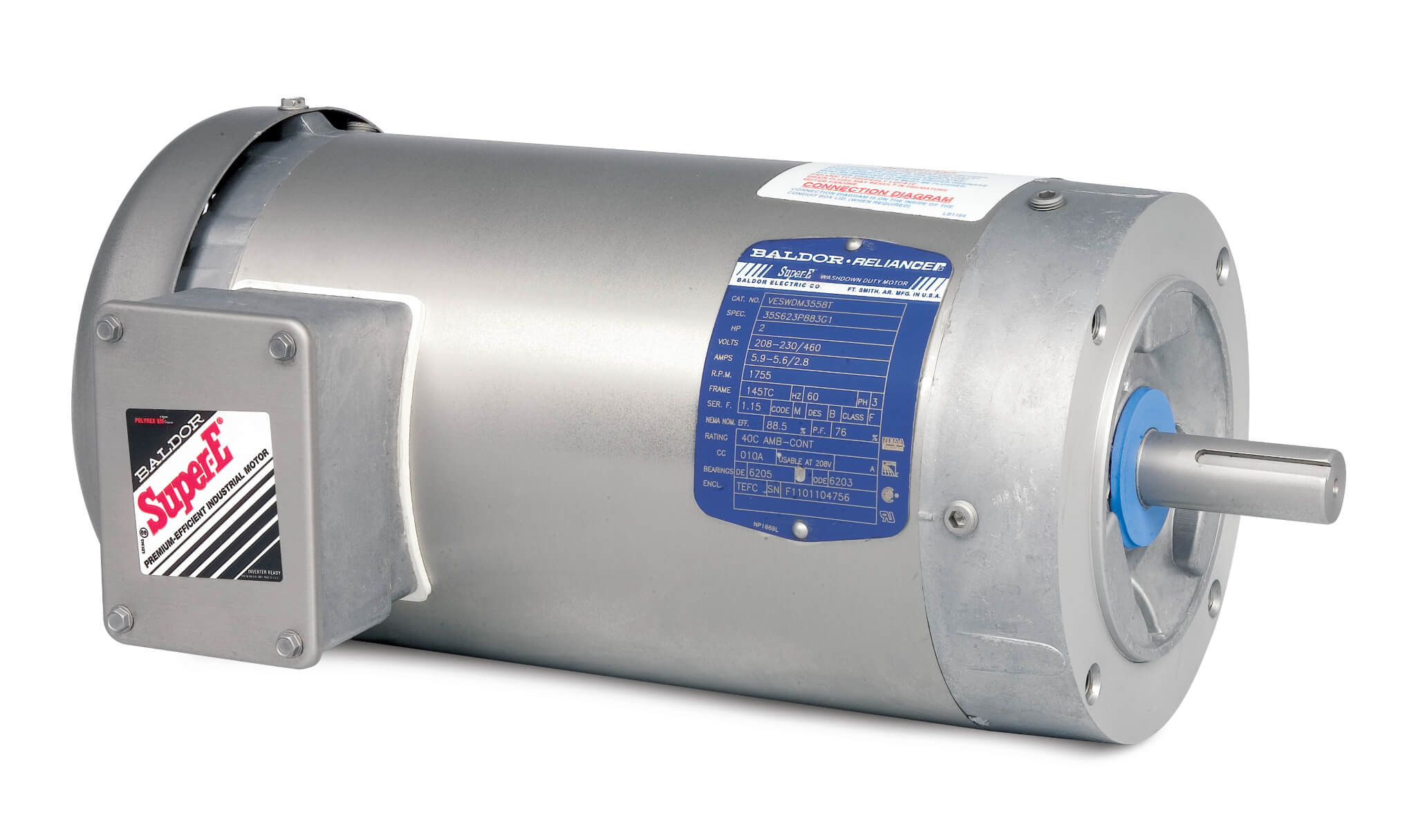

BALDOR MOTOR VESWDM3558T Paint Free Washdown Motor, 230/460V, 1800 RPM, 2 hp, 3 Phase, TEFC, 145TC Frame
Get it by Thursday, Dec 18
€2,205.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 5.9-5.6/2.8A |
| Base | None |
| Base Type | Not Applicable |
| Break-down Torque | 26.5 lbs.-ft. |
| Code | M |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Finish | Unfinished |
| Frame | 145TC |
| Frame Material | Stainless Steel |
| Frame Size | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 5.6-5.9/2.8A |
| Full Load Torque | 5.91 ft.-lbs. |
| Full Load Torque | 5.91 lbs.-ft. |
| Hp | 2 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 9#18 |
| Line-line Res. @ 25° C | 6.7876 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 18.9 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting Type | C Face, Footless |
| Multiplier | WD |
| Nameplate Rpm | 1755 RPM |
| Nema/iec | NEMA |
| No Load Amps | 1.59A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Overall Length | 15.54" |
| Phase | 3 |
| Power Factor | 76 |
| Product Datasheet | baldor-motor-veswdm3558t.pdf |
| Proprietary | No |
| Pull-up Torque | 13.6 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | A |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 25.9A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise @ Rated Load | 46°C |
| Temp. Rise @ S. F. Load | 55°C |
| Type | 3536M |
| Voltage | 208-230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - VSWDM3558T
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 18.9 LB-FT
- Nameplate No.: NP1669L
- Pull-Up Torque: 13.6 LB-FT
- Starting Current: 25.9 Amps
Documentation:
Product Variants
| Model | Hp | Nameplate Rpm | Finish | Frame | Full Load Amps | Insulation Class | Service Factor | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

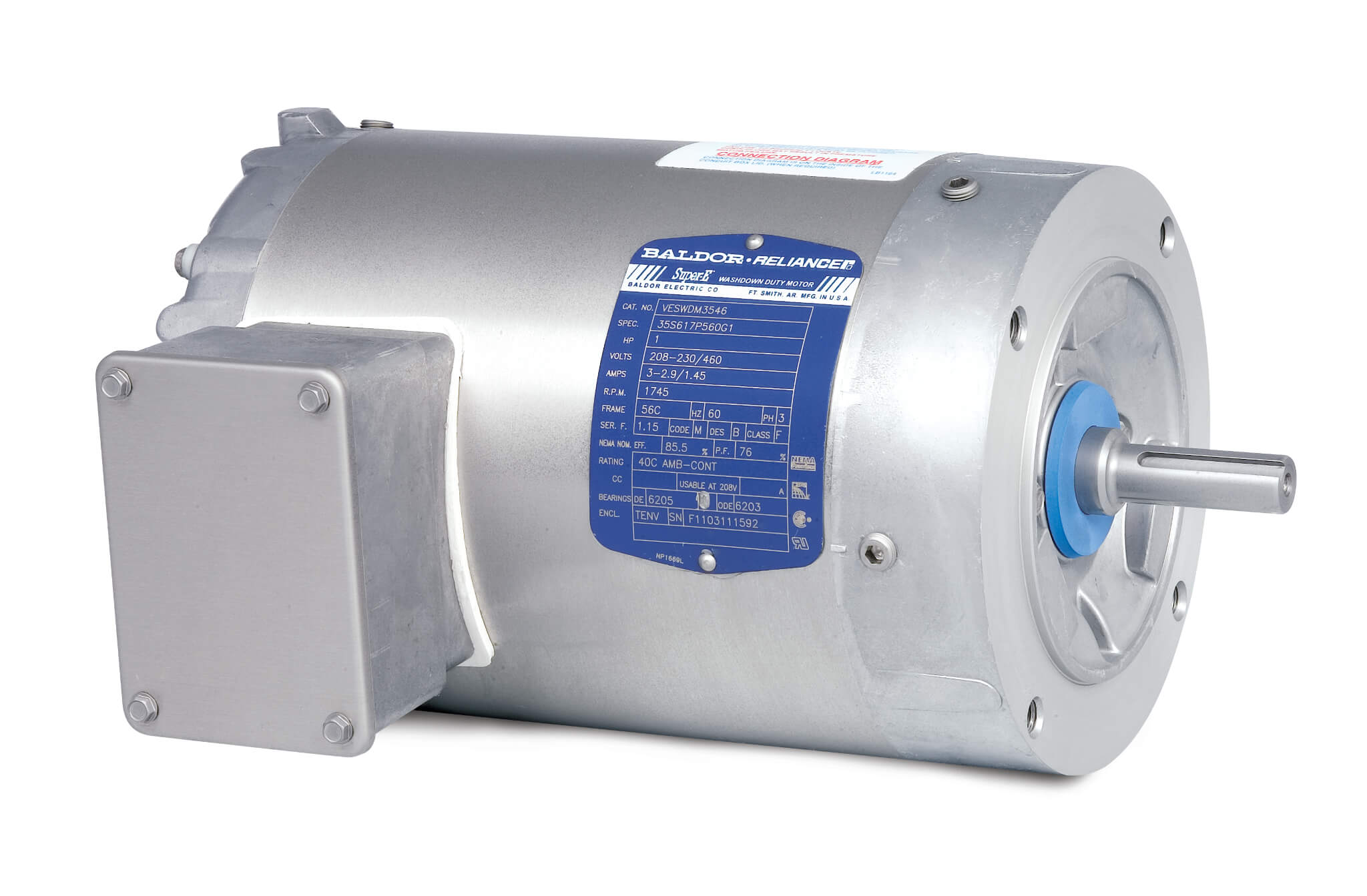

| VESWDM3546 | 1 hp | 1770 RPM | White Epoxy Paint | 56C | 1.7A | Class F | 1.15 | 3524M | €2,864.29 | |
| VESWDM3554 | 1 1/2 hp | 1755/1770 RPM | Unfinished | 56C | 4.4-4.2/2.1A | Class H | 1 | 3533M | €1,932.27 | |
| VESWDM3554T | 1 1/2 hp | 1755/1770 RPM | Unfinished | 145TC | 4.4-4.2/2.1A | Class H | 1 | 3533M | €1,932.27 |
