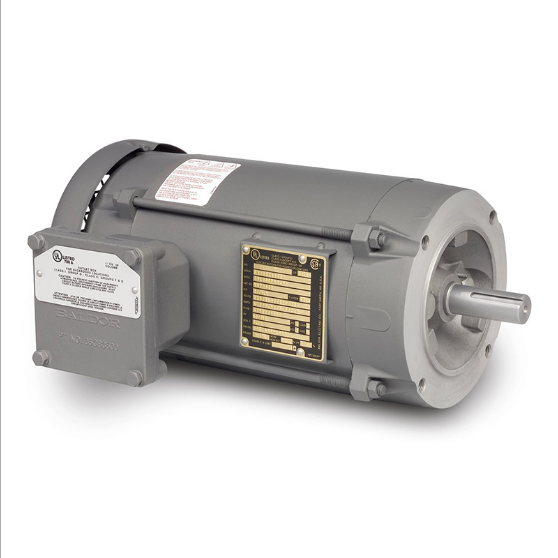

BALDOR MOTOR VEM7075T Explosion Proof Motor, 230/460v, 1800 Rpm, 60 Hz, 3 Hp, Odp, 182t
Get it by Friday, Dec 19
€2,181.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps | 7.9A @ 208V, 7.2A @ 230V, 3.6A @ 460V |
| Amps @ Voltage | 3.6A @ 460V, 7.2A @ 230V, 7.9A @ 208V |
| Amps @ Volts | 7.9A @ 208V, 7.2A @ 230V, 3.6A @ 460V |
| Auxillary Box | No Auxillary Box |
| Base Type | Not Applicable |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Break-down Torque | 18 lbs.-ft. |
| Conduit Box Position | F1 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 86.5% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | XPFC |
| Enclosure Type | Explosion Proof Fan Cooled |
| Feedback Device | NO FEEDBACK |
| Frame | 145TC |
| Frame Material | Steel |
| Frame Size | 145TC |
| Frequency | 60 Hz |
| Front Face Code | Standard |
| Full Load Amps | 3.6A |
| Full Load Torque | 0 LB-FT |
| Grease Type | Polyrex EM |
| Hazardous Location Class | 1D |
| Hazardous Location Division | Division 1 |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 3.6A |
| Hp | 3 hp |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Kva Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 9 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3532M |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3450 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Output | 3 hp |
| Output @ Frequency | 3 hp @ 60 Hz |
| Overall Length | 16.1" |
| Phase | 3 |
| Power Factor | 92 |
| Product Family | Hazardous Location Motor |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C Face |
| Pulley Shaft Indicator | Standard |
| Rpm | 3450 RPM |
| Rpm Range | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Rpm @ Frequency | 3600 RPM @ 60 Hz |
| Synchronous Speed | 3600 RPM |
| Thermal Device - Winding | Normally Closed Thermostat |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 230/460V |
| Voltage @ Frequency | 460V @ 60 Hz, 230V @ 60 Hz |
| Xp Class And Group | Class I Group D |
| Xp Division | Division I |
| Xp Temp Code | T2C |
Shipping Info:
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 38.42 |
| Ship length (cm) | 54.93 |
| Ship width (cm) | 40.96 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - VM7075T
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 86.50%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Not inverter
- KVA Code: L
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- No-Load Current: 0 A
- Product Family: Hazardous Location Motor
- Pull-Up Torque: 11 LB-FT
- Pulley End Bearing Type: Ball
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 0.875 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Starting Current: 33 A
- Temp. Rise @ Rated Load: 61 deg C
- Temp. Rise @ S.F. Load: 73 deg C
