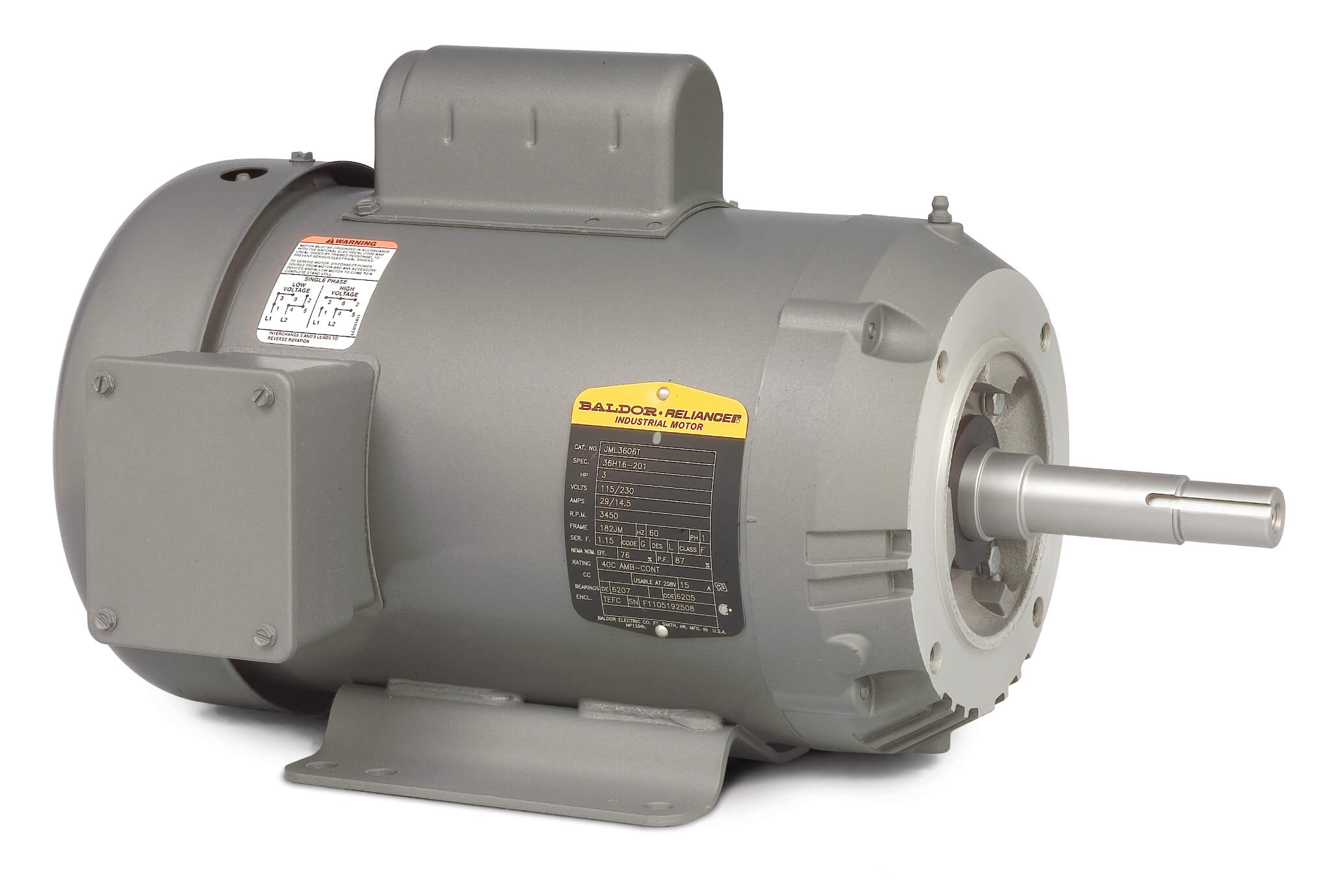

BALDOR MOTOR JML3606T JM Close Coupled Motor, 230V, 3600 RPM, 60 Hz, 3 hp, 1 Phase, TEFC, 182JM Frame
Get it by Friday, Dec 19
€1,762.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 29/14.5A |
| Amps @ 208v | 15A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Break-down Torque | 14 lbs.-ft. |
| Code | G |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 76% |
| Enclosure Design | TEFC |
| Frame Material | Steel |
| Frame Size | 182JM |
| Frame Type | 182JM |
| Frequency | 60 Hz |
| Full Load Amps | 14.5/15/29A |
| Full Load Torque | 4.5 lbs.-ft. |
| Full Load Torque | 4.5 ft.-lbs. |
| Hp | 3 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Inverter Rated | No |
| Lead | 4#14 A Ph, 2#16 B Ph |
| Lead | 4#14 A PH,2#16 B PH |
| Length Less Shaft | 14 7/16" |
| Line-line Res. @ 25° C | 0.588 ohms A Ph/0.896 ohms B Ph |
| Locked-rotor Torque | 10 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Multiplier | L1 |
| Nameplate Rpm | 3450 RPM |
| Nema Design | L |
| Nema/iec | NEMA |
| No Load Amps | 5.5A |
| No. Of Motor Leads | 4 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 76% |
| Overall Length | 18.06" |
| Part Winding Start Capable | No |
| Phase | 1 |
| Power Factor | 87 |
| Product Datasheet | baldor-motor-jml3606t.pdf |
| Proprietary | No |
| Pull-up Torque | 8 lbs.-ft. |
| Pulley Face Code | C Face |
| Removable Base | Regreasable Bearings |
| Revision | R |
| Rpm | 3400-3600 RPM |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 3 5/8" |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 86A |
| Synchronous Rpm | 3600 RPM |
| Temp. Rise | 95°C |
| Temp. Rise @ Rated Load | 80°C |
| Temp. Rise @ S. F. Load | 95°C |
| Thermal Protection | None |
| Type | 3634L |
| Usable @ 208v | Yes |
| Voltage | 115/230V |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 35.55 |
| Ship height (cm) | 38.42 |
| Ship length (cm) | 54.93 |
| Ship width (cm) | 40.96 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 10 LB-FT
- Nameplate No.: NP1256L
- Pull-Up Torque: 8 LB-FT
- Starting Current: 86 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Service Factor | Overall Length | Break-down Torque | No Load Amps | Power Factor | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

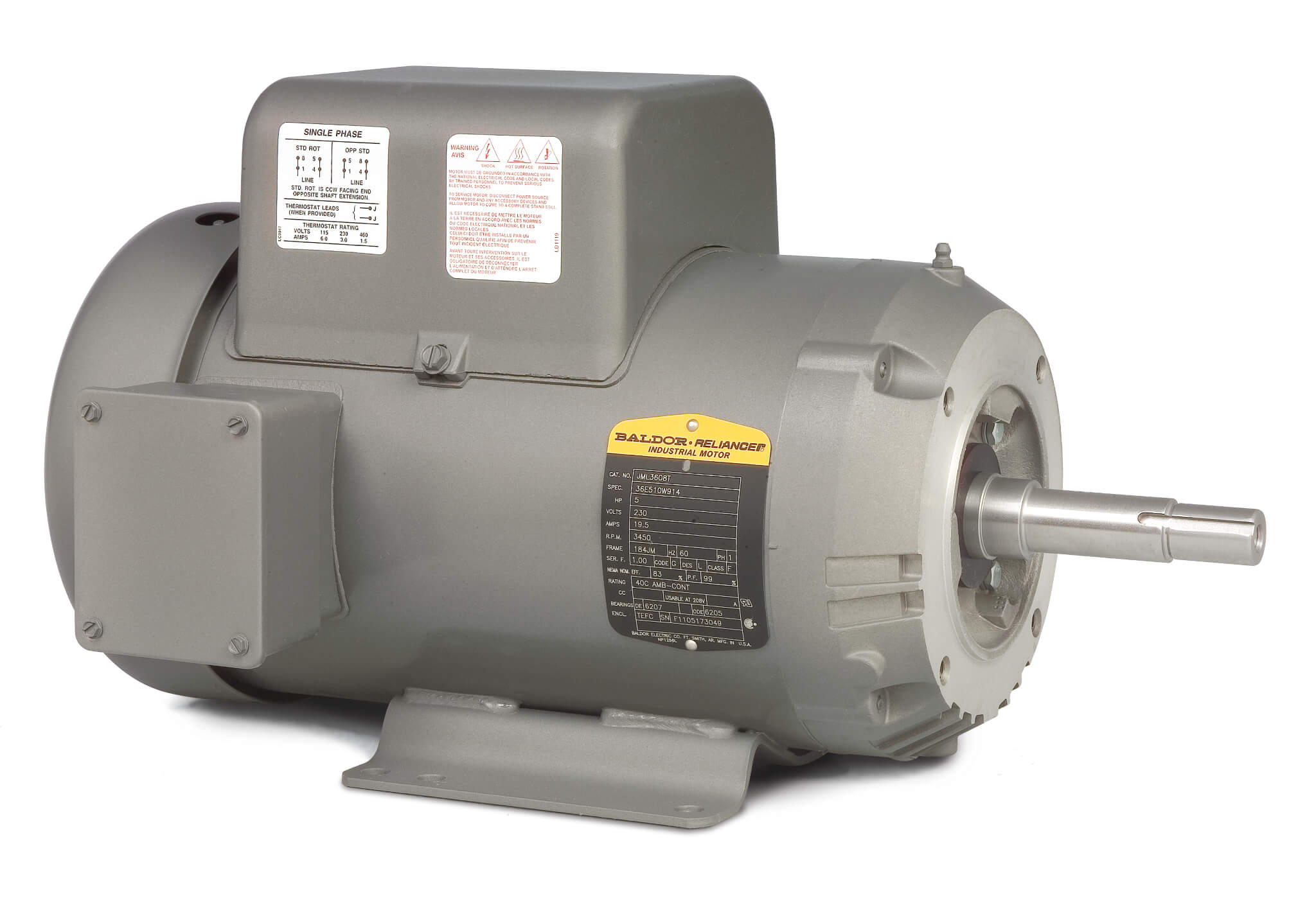

JML3608T | 230V | 5 hp | 1 | 19.55" | 26 lbs.-ft. | 2.3A | 99 | 3640LC | €2,348.51 |
