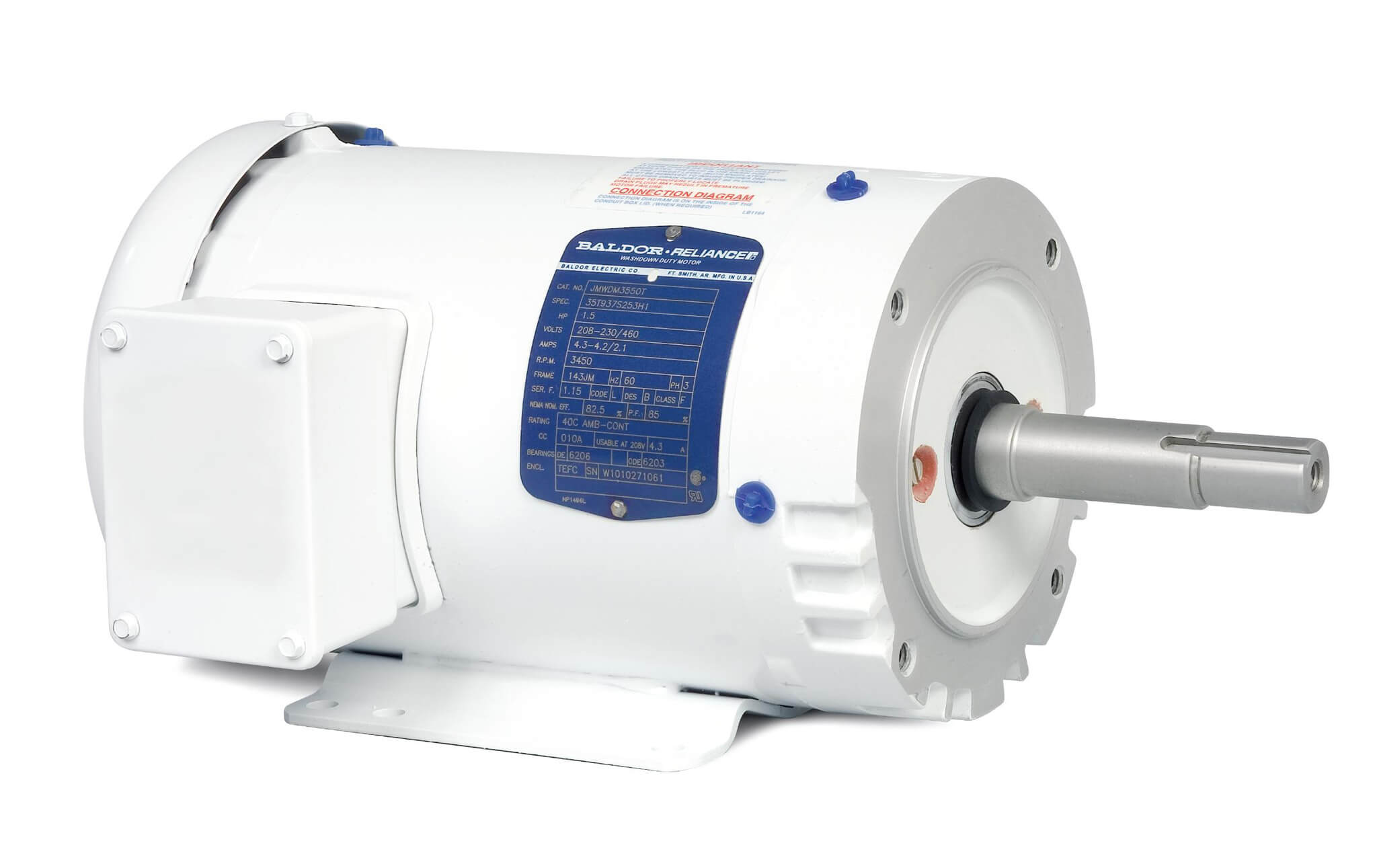

BALDOR MOTOR JMEWDM3554T Closed Coupled Pump Motor, 1800 RPM, 60 Hz, 1.5 hp, 3 Phase, TENV, 145JM Frame
Get it by Tuesday, Aug 18
€1,858.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 2.1A @ 460V, 4.2A @ 230V, 4.4A @ 208V , 4.4A @ 208V, 4.2A @ 230V, 2.1A @ 460V |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Blower | None |
| Break Down Torque | 19.9 lbs.-ft. |
| Color | White |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 86.5% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TENV |
| Feedback Device | NO FEEDBACK |
| Finish | Epoxy Coating |
| Frame | 145JM |
| Frame Material | Steel |
| Frame Size | 145JM |
| Frequency | 60 Hz |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Full Load Amps | 2.1A |
| Full Load Torque | 0 ft.-lbs. |
| Full Load Torque | 0 lbs.-ft. |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 2.1A |
| Hp | 1 1/2 hp |
| Insulation Class | Class H |
| Inverter Code | Inverter Duty |
| Kva Code | K |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 9 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3534M |
| Mounting Type | C Face, Foot Mounted |
| Nameplate Speed | 1755/1770 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output Frequency | 1 1/2 hp @ 60 Hz |
| Overall Length | 15.16" |
| Phase | 3 |
| Power Factor | 72 |
| Product Datasheet | baldor-motor-jmewdm3554t.pdf |
| Product Family | Wash Down |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C Face |
| Pulley Shaft Indicator | Tapped, Key |
| Rodent Screen | Not Available |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed | 1700-1800 RPM , 1755 RPM |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Synchronous Speed @ Hz | 1800 RPM @ 60 Hz |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 208-230/460V |
| Voltage @ Frequency | 460V @ 60 Hz, 230V @ 60 Hz |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
| Xp Class And Group | None |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - JMWDM3554T
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 86.50%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Inverter ready
- KVA Code: K
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- No-Load Current: 0 A
- Product Family: Wash Down
- Pull-Up Torque: 10.98 LB-FT
- Pulley End Bearing Type: Sealed Bearing
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Tapped & Key
- Shaft Diameter: 0.875 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: Shaft Slinger
- Starting Current: 19.8 A
- Temp. Rise @ Rated Load: 88 deg C
- Temp. Rise @ S.F. Load: 104 deg C
Documentation:
Product Variants
| Model | Voltage | Hp | Shaft Dia. | Full Load Amps | Nameplate Speed | Speed | No. Of Poles | Frame Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| JMEWDM23933T | 230/460V | 15 hp | 1 3/4" | 18A | 1765 RPM | 1765 RPM | 4 | 254JM | €8,297.20 | |
| JMEWDM23934T | 230/460V | 20 hp | 1 3/4" | 24A | 1765 RPM | 1765 RPM | 4 | 256JM | €9,588.41 | |
| JMEWDM3546T | 208-230/460V | 1 hp | 7/8" | 1.5A | 1745/1770 RPM | 1745 RPM | 4 | 143JM | €1,778.72 | |
| JMEWDM3550T | 208-230/460V | 1 1/2 hp | 7/8" | 2A | 3500 RPM | 3500 RPM | 2 | 143JM | €1,788.18 | |
| JMEWDM3555T | 208-230/460V | 2 hp | 7/8" | 2.5A | 3490 RPM | 3400-3600 RPM | 2 | 143JM | €1,951.95 | |
| JMEWDM3558T | 208-230/460V | 2 hp | 7/8" | 2.9A | 1755/1760 RPM | 1755 RPM | 4 | 145JM | €2,034.31 | |
| JMEWDM3559T | 230/460V | 3 hp | 7/8" | 3.6A | 3450 RPM | 3450 RPM | 2 | 143JM | €2,383.61 |
