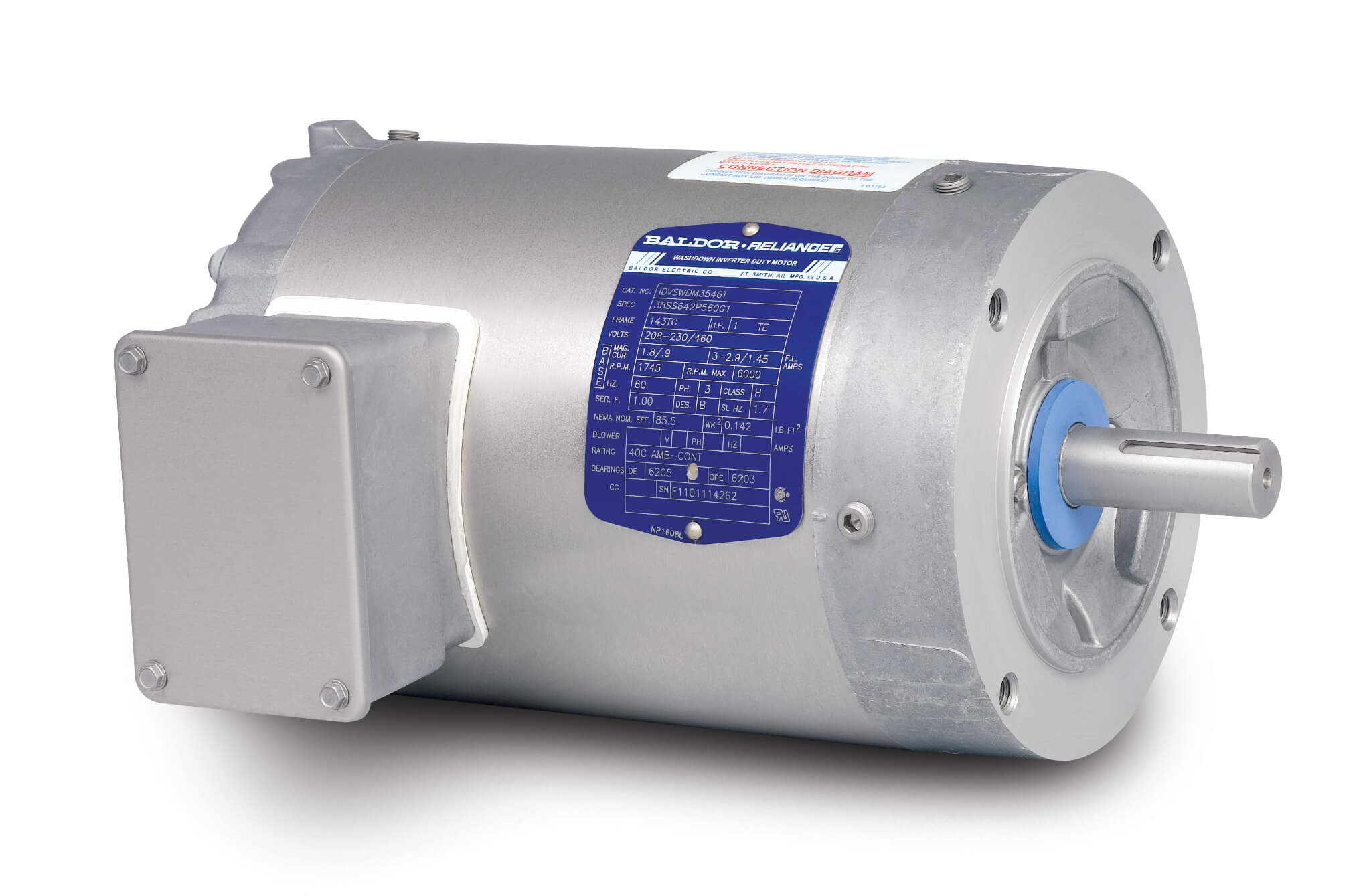

BALDOR MOTOR IDVSWDM3538 Inverter Duty Motor, 230/460V, 1800 RPM, 60 Hz, 0.5 hp, 3 Phase, TENV, 56C Frame
Get it by Friday, Aug 21
€2,493.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Base | None |
| Base Indicator | None |
| Base Type | Not Applicable |
| Break Down Torque | 8.65 lbs.-ft. |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TENV |
| Finish | Unfinished |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 1.8/0.9A |
| Full Load Torque | 1.49 lbs.-ft. |
| Full Load Torque | 1.49 ft.-lbs. |
| Hp | 1/2 hp |
| Insulation Class | Class H |
| Inverter Code | Inverter Duty |
| Lead | 9#18 |
| Line-line Res. @ 25°c | 25.6 ohms A Ph/0 ohms B Ph |
| Locked Rotor Torque | 5.09 lbs.-ft. |
| Magnetizing Amps | 1.4/0.7A |
| Max. Speed | 6000 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Mounting Type | C Face, Footless |
| Multiplier | E2 |
| Nameplate Speed | 1765/1770 RPM |
| Nema/iec | NEMA |
| No Load Amps | 0.655A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 84% |
| Output | 1/2 hp |
| Overall Length | 11.06" |
| Phase | 3 |
| Power Factor | 63 |
| Product Datasheet | baldor-motor-idvswdm3538.pdf |
| Proprietary | No |
| Pull Up Torque | 4.54 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | G |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 1700-1800 RPM |
| Start Configuration | DOL |
| Starting Amps | 7.54A |
| Synchronous Speed | 1800 RPM |
| Temp. Rise @ Rated Load | 54°C |
| Type | 3516M |
| Voltage | 230/460V |
| Wire Size | 18 AWG |
| Xp Class And Group | None |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 5.09 LB-FT
- Nameplate No.: NP1608L
- Pull-Up Torque: 4.54 LB-FT
- SL Hz: 1.2
- Starting Current: 7.54 Amps
Documentation:
Product Variants
| Model | Voltage | Hp | Shaft Dia. | Full Load Amps | Nameplate Speed | Speed | Frame Size | Magnetizing Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| IDVSWDM3542 | 230/460V | 3/4 hp | 5/8" | 2.2/1.1A | 1740 RPM | 1700-1800 RPM | 56C | 1.2/0.6A | €2,832.94 | |
| IDVSWDM3546 | 230/460V | 1 hp | 5/8" | 3-2.9/1.45A | 1745/1770 RPM | 1745 RPM | 56C | 1.8/0.9A | €2,940.23 | |
| IDVSWDM3546T | 208-230/460V | 1 hp | 7/8" | 3-2.9/1.45A | 1770 RPM | 1700-1800 RPM | 143TC | 1.8/0.9A | €2,940.23 | |

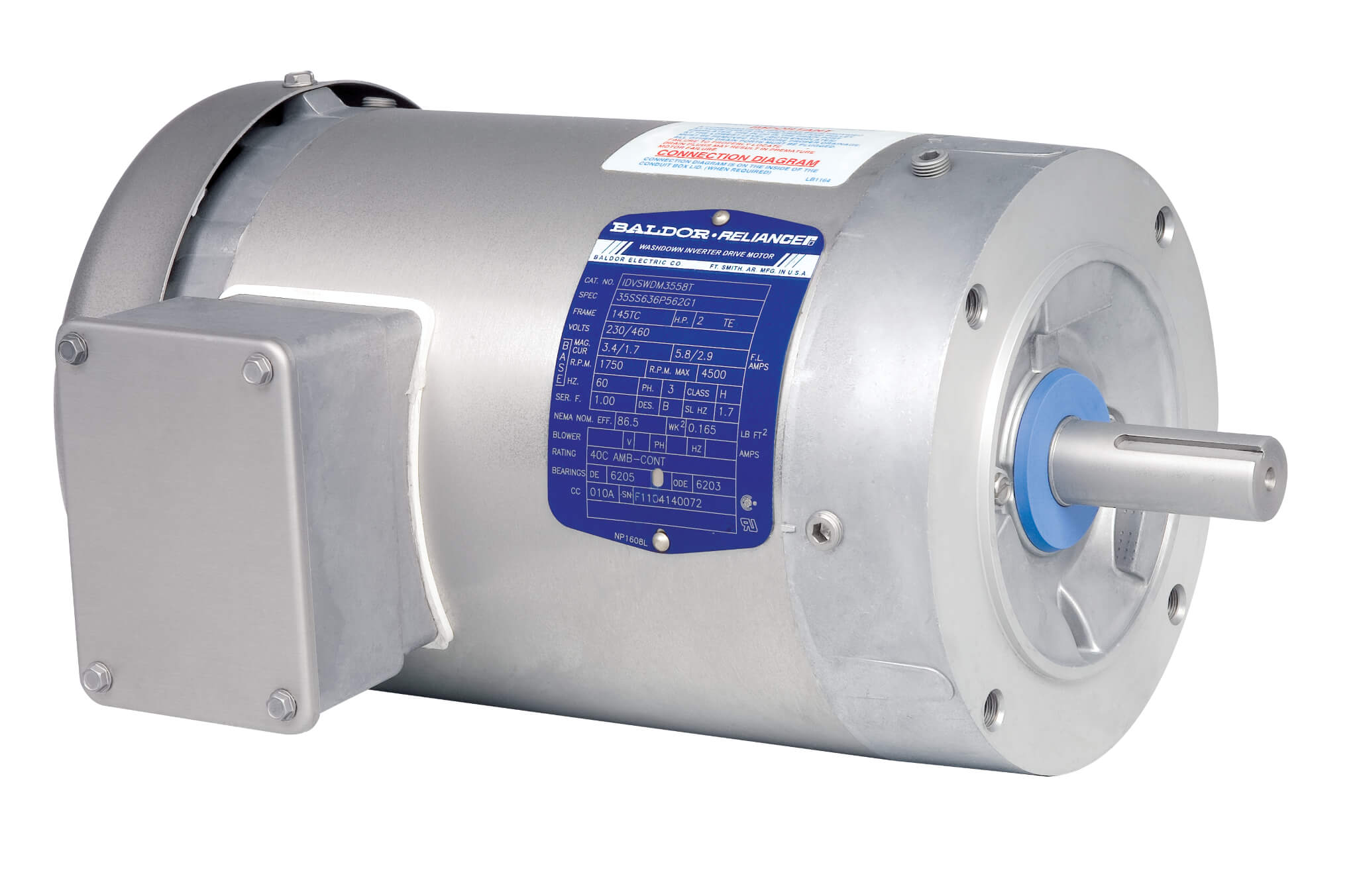

| IDVSWDM3554 | 230/460V | 1 1/2 hp | 5/8" | 4.2/2.1A | 1760 RPM | 1700-1800 RPM | 56C | 2.4/1.2A | €3,144.97 | |
| IDVSWDM3554T | 230/460V | 1 1/2 hp | 7/8" | 4.2/2.1A | 1760 RPM | 1700-1800 RPM | 145TC | 2.4/1.2A | €3,144.97 | |
| IDVSWDM3558 | 230/460V | 2 hp | 5/8" | 5.8/2.9A | 1750 RPM | 1700-1800 RPM | 56C | 3.4/1.7A | €3,348.73 | |
| IDVSWDM3558T | 230/460V | 2 hp | 7/8" | 5.8/2.9A | 1750 RPM | 1700-1800 RPM | 145TC | 3.4/1.7A | €3,348.73 |
