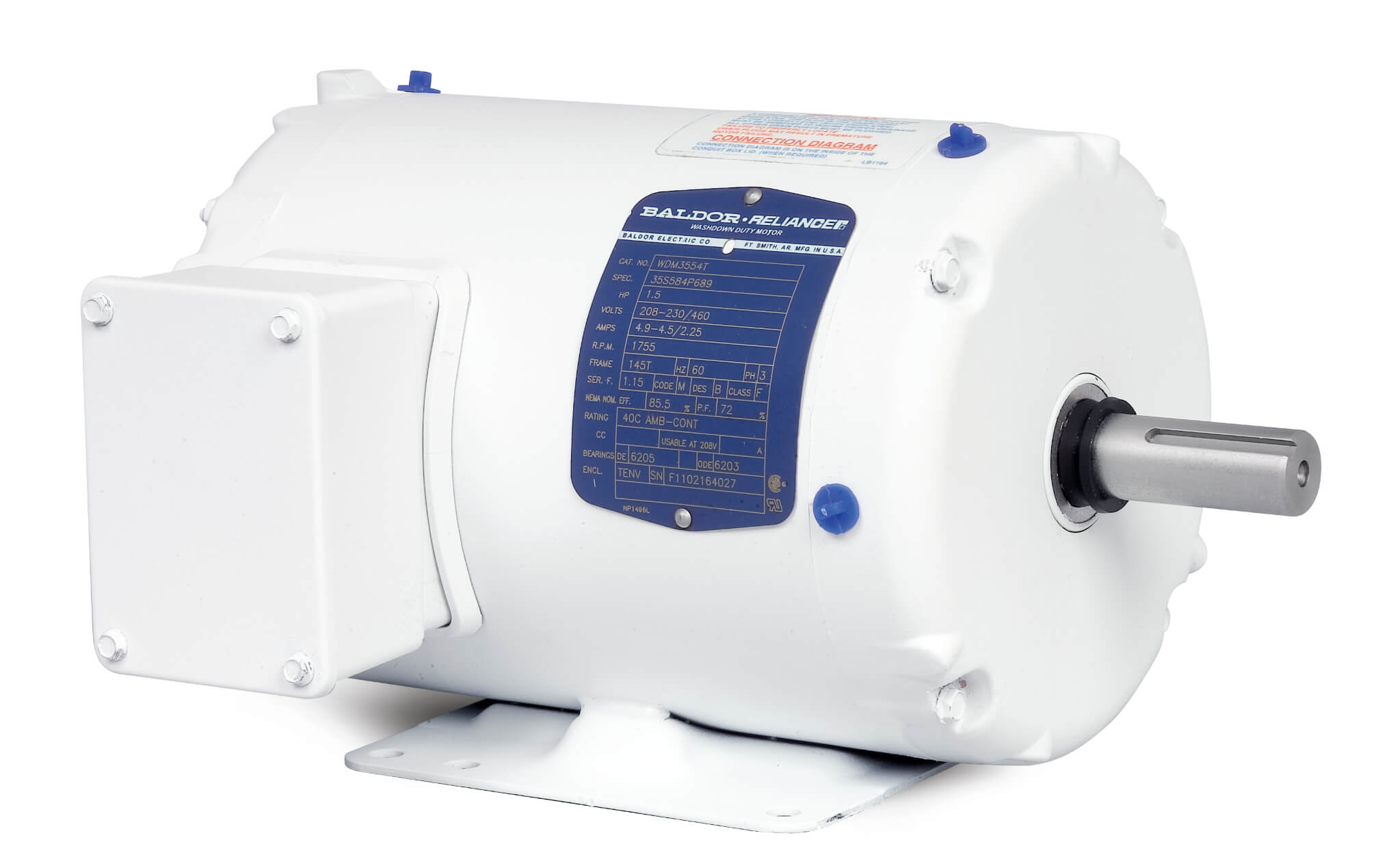

BALDOR MOTOR EWDM3546 White Washdown Motor, 230/460V, 1800 RPM, 60 Hz, 1 hp, 3 Phase, TENV, 56 Frame
Get it by Tuesday, Dec 23
€1,410.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 1.45A @ 460V, 2.9A @ 230V, 3A @ 208V |
| Amps @ Volts | 3A @ 208V, 2.9A @ 230V, 1.5A @ 460V |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Color | White |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 85.5% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TENV |
| Feedback Device | NO FEEDBACK |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Front Face Code | Standard |
| Full Load Amps | 1.5A |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 1.5A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Kva Code | M |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 9 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3524M |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 1745/1770 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output @ Frequency | 1 hp @ 60 Hz |
| Overall Length | 12.06" |
| Phase | 3 |
| Power Factor | 66 |
| Product Family | Wash Down |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rpm | 1745 RPM |
| Rpm Range | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Rpm | 1800 RPM |
| Synchronous Rpm @ Frequency | 1800 RPM @ 60 Hz |
| Synchronous Speed | 1800 RPM |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 208-230/460V |
| Voltage @ Frequency | 460V @ 60 Hz, 230V @ 60 Hz |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - WDM3546
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 85.50%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Inverter ready
- KVA Code: M
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: No Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Product Family: Wash Down
- Pulley End Bearing Type: Sealed Bearing
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 0.625 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: Shaft Slinger
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Full Load Amps | Insulation Class | Service Factor | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

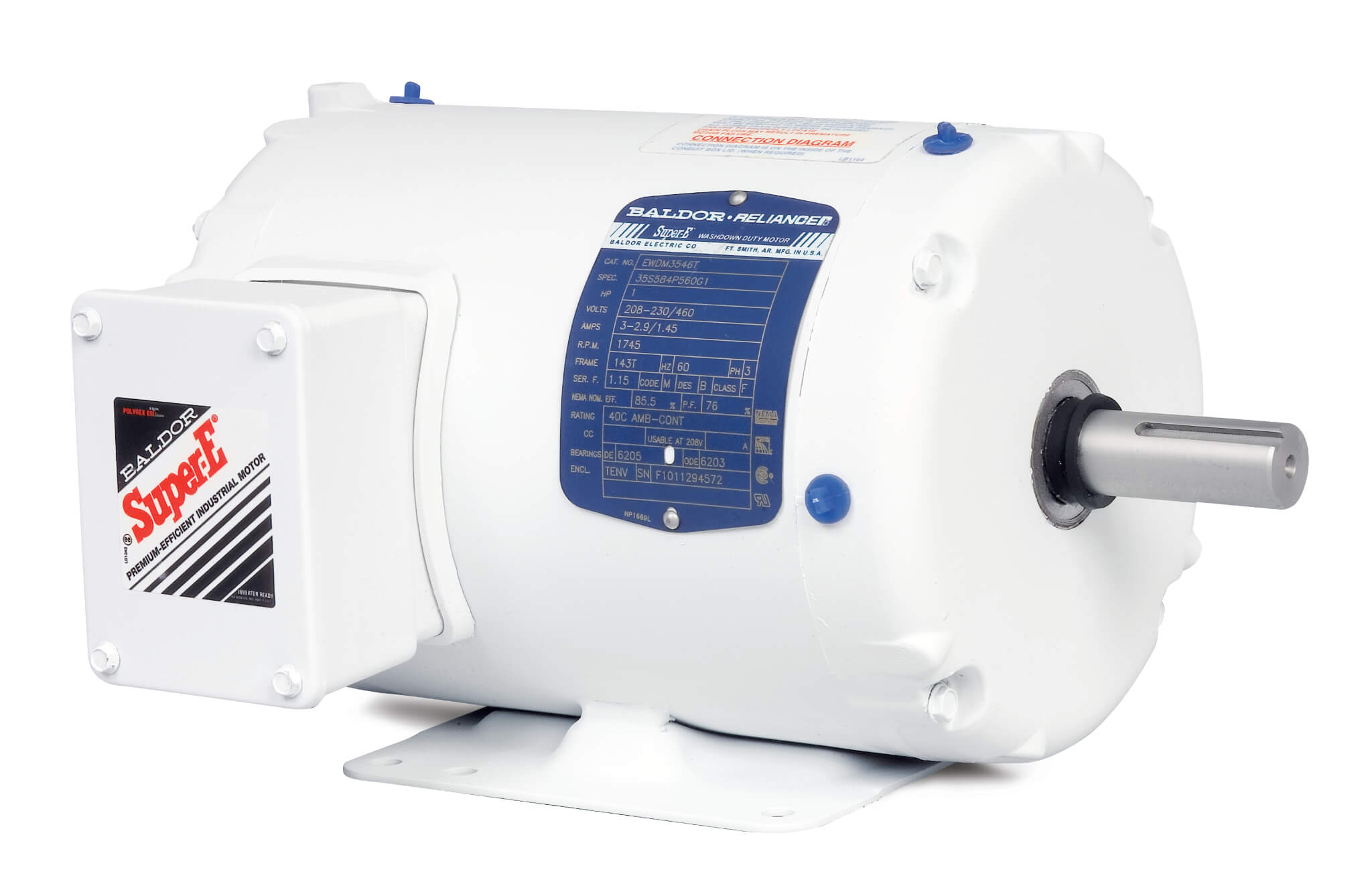

EWDM3546T | 208-230/460V | 1 hp | 1745/1770 RPM | 143T | 3-2.9/1.45A | Class F | 1.15 | 7/8" | €1,444.55 | |
|
EWDM3554T | 208-230/460V | 1 1/2 hp | 1755/1770 RPM | 145T | 4.4-4.2/2.1A | Class H | 1 | 7/8" | €1,588.45 | |
 |

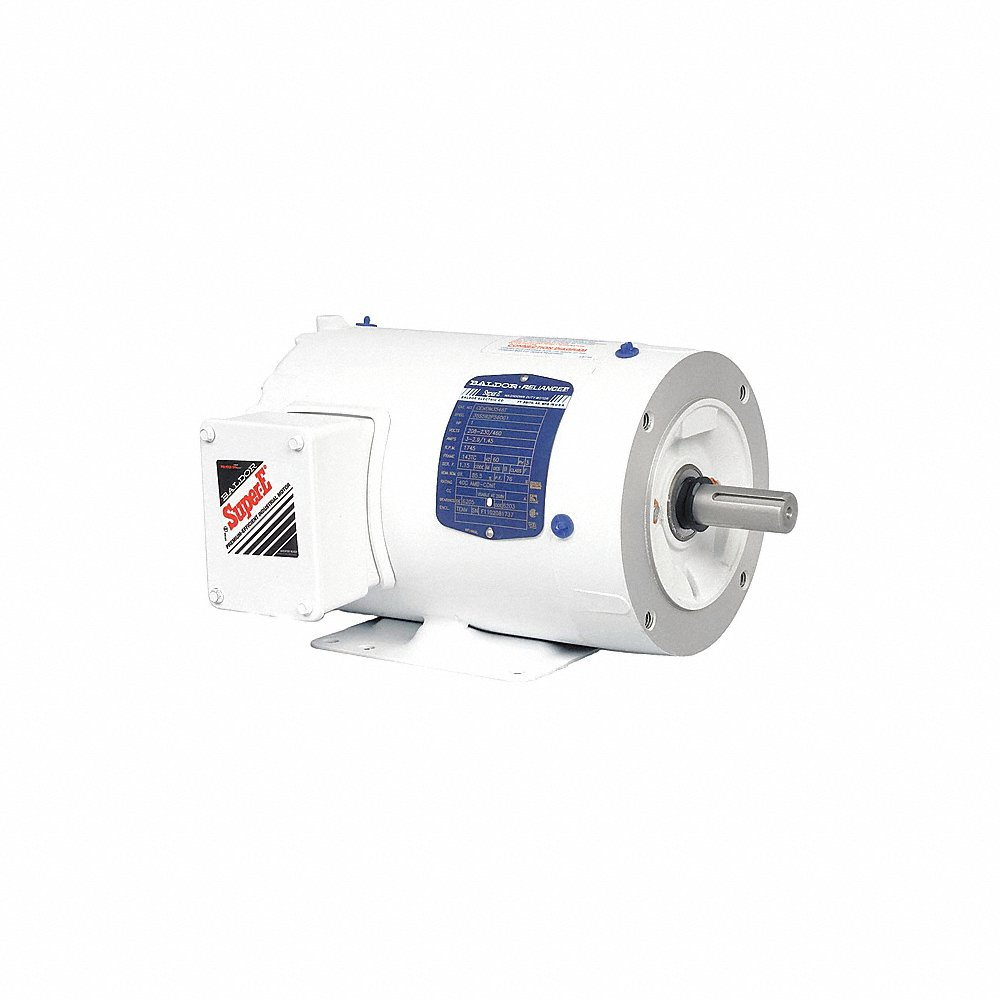

EWDM3558T | 208-230/460V | 2 hp | 1755/1760 RPM | 145T | 6-5.8/2.9A | Class F | 1.15 | 7/8" | €3,116.18 | |
 |

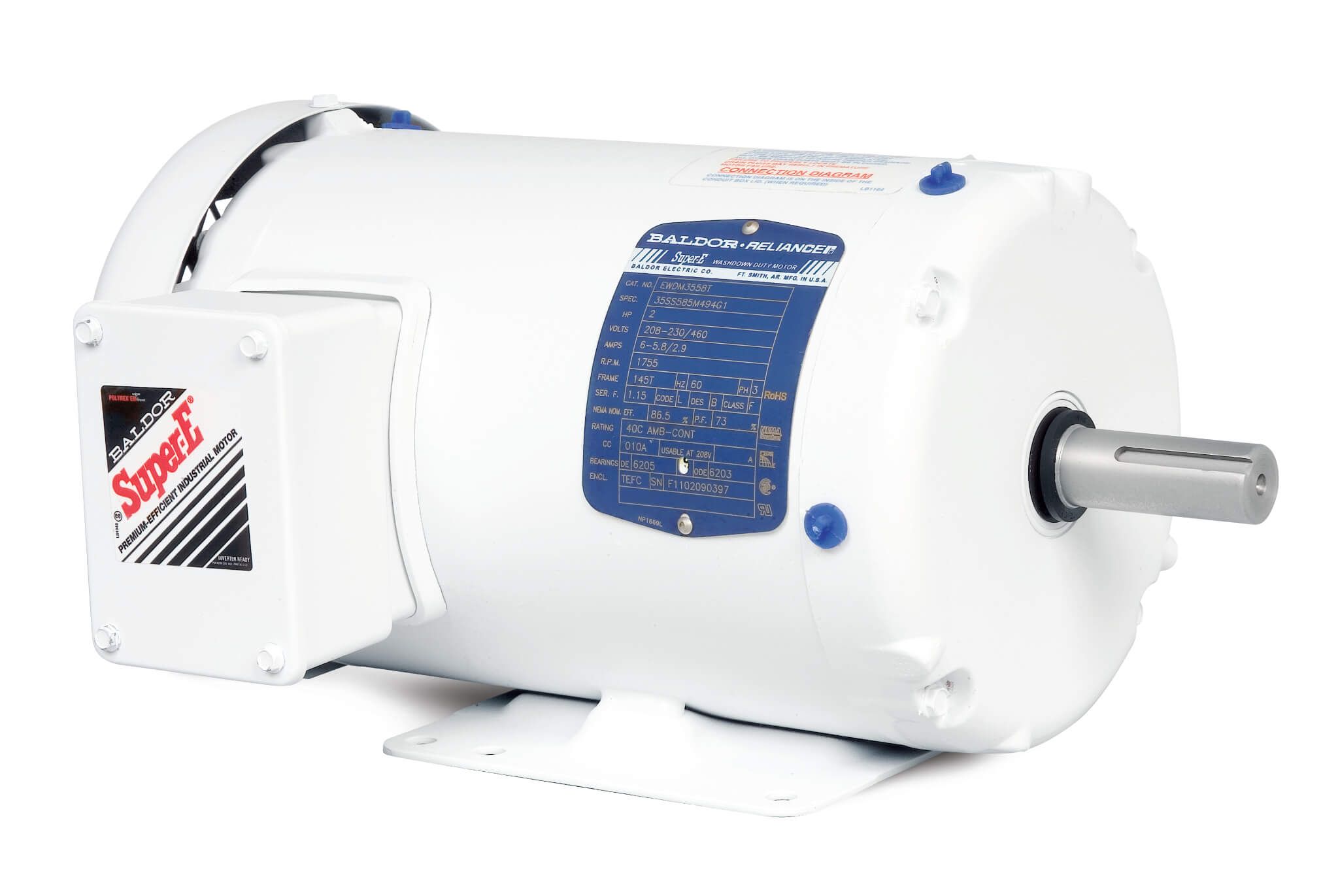

EWDM3611T | 208-230/460V | 3 hp | 1760 RPM | 182T | 9-8.4/4.2A | Class F | 1.15 | 1 1/8" | €2,326.81 | |
|
EWDM3615T | 208-230/460V | 5 hp | 1750 RPM | 184T | 13.9-13.4/6.7A | Class F | 1.15 | 1 1/8" | €2,648.66 | |
|
EWDM3710T | 230/460V | 7 1/2 hp | 1770 RPM | 213T | 18.8/9.4A | Class F | 1.15 | 1 3/8" | €3,315.10 | |
|
EWDM3714T | 230/460V | 10 hp | 1770 RPM | 215T | 24/12A | Class F | 1.15 | 1 3/8" | €3,611.39 |
