BALDOR MOTOR EM4100T-G Three Phase Motor, 230/460V, 1200 RPM, 60 Hz, 15 hp, TEFC, 284T Frame
Get it by Friday, Dec 19
€6,635.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Base Indicator | Rigid |
| Bearing Type | Ball |
| Conduit Box Material | Cast Iron |
| Conduit Box Position | F1 |
| Design Code | A |
| Duty | Continuous |
| Efficiency | 91.7% |
| Enclosure Design | TEFC |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame Material | Iron |
| Frame Size | 284T |
| Frequency | 60 Hz |
| Full Load Amps | 42/21A |
| Hp | 15 hp |
| Insulation Class | Class H |
| Inverter Code | Inverter Ready |
| Length | 27 3/4" |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Foot Mounted |
| Nema/iec | NEMA |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Overall Length | 27.81" |
| Phase | 3 |
| Power Factor | 73 |
| Product Datasheet | baldor-motor-em4100t-g.pdf |
| Pulley Face Code | Standard |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 7/8" |
| Shaft Ground Indicator | Shaft Grounding |
| Shaft Rotation | Reversible |
| Synchronous Rpm | 1200 RPM |
| Thermal Protection | None |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 166.05 |
| Ship height (cm) | 49.85 |
| Ship length (cm) | 78.74 |
| Ship width (cm) | 60.33 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- synchronous rpm: 1200 rpm
- volts @ frequency: 230 V @ 60 Hz; 460 V @ 60 Hz
Documentation:
Product Variants
| Model | Voltage | Hp | Frame | Rpm Range | Nameplate Rpm | Shaft Length | Insulation Class | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EM2276T-BG | 230/460V | 7 1/2 hp | 254T | 1100-1200 RPM | - | - | Class H | 1 5/8" | €4,382.89 | |
| EM2276T-G | 230/460V | 7 1/2 hp | 254T | - | - | - | Class H | 1 5/8" | €4,430.22 | |
| EM2332T-G | 230/460V | 10 hp | 256T | - | - | - | Class H | 1 5/8" | €4,991.57 | |

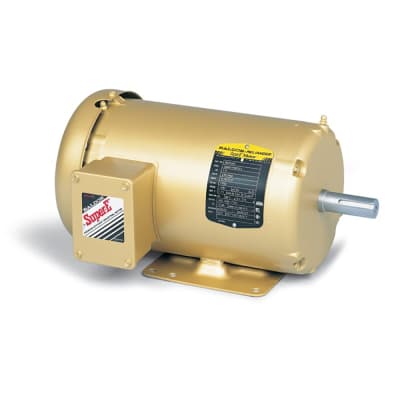

| EM2333T-5BG | 575V | 15 hp | 254T | 1700-1800 RPM | - | - | Class H | 1 5/8" | €3,321.88 | |
| EM2333T-8G | 200V | 15 hp | 254T | 1700-1800 RPM | - | - | Class H | 1 5/8" | €4,051.58 | |
| EM2333T-BG | 230/460V | 15 hp | 254T | 1700-1800 RPM | - | - | Class H | 1 5/8" | €4,004.24 | |
| EM2333T-G | 230/460V | 15 hp | 254T | - | - | - | Class H | 1 5/8" | €4,051.58 |
