BALDOR MOTOR EJPM4103T Close Coupled Pump Motor, 230/460V, 1800 RPM, 25 hp, 3 Phase, TEFC, 284JP Frame
Get it by Monday, Dec 22
€6,385.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 60/30A |
| Amps @ 208v | 63.3A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 235 lbs.-ft. |
| Conduit Box Material | Cast Iron |
| Conduit Box Position | F1 |
| Design Code | A |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame Material | Iron |
| Frame Size | 284JP |
| Frame Type | 284JP |
| Frequency | 60 Hz |
| Full Load Amps | 60/30A |
| Full Load Torque | 74.2 lbs.-ft. |
| Full Load Torque | 74.2 ft.-lbs. |
| Grease Type | Polyrex EM |
| Hp | 25 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Kva Code | G |
| Lead | 9#10 |
| Line-line Res. @ 25° C | 0.307 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 123 lbs.-ft. |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 63°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Multiplier | L1 |
| Nameplate Rpm | 1770 RPM |
| Nema/iec | NEMA |
| No Load Amps | 11.3A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 93.6% |
| Overall Length | 31.56" |
| Phase | 3 |
| Power Factor | 81 |
| Product Datasheet | baldor-motor-ejpm4103t.pdf |
| Proprietary | No |
| Pull-up Torque | 98.1 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | Q |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/4" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 186A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 63°C |
| Temp. Rise @ Rated Load | 52°C |
| Temp. Rise @ S. F. Load | 63°C |
| Type | 1046M |
| Voltage | 230/460V |
| Wire Size | 10 AWG |
Shipping Info:
| Ship weight (kg) | 185.4 |
| Ship height (cm) | 54.93 |
| Ship length (cm) | 85.73 |
| Ship width (cm) | 65.25 |
| HS code | 85015230 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - JPM4103T
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 123 LB-FT
- Nameplate No.: NP2138L
- Pull-Up Torque: 98.1 LB-FT
- Starting Current: 186 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Shaft Dia. | Nameplate Rpm | Motor Enclosure Design | Rpm Range | Motor Application | Motor Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EJMM2333T | 230/460V | 15 hp | 1 3/8" | 1765 RPM | Totally Enclosed Fan Cooled | 1701-1800 RPM | General Application | Rigid Base | €7,784.68 | |
|
EJMM2334T | 230/460V | 20 hp | 1 1/4" | 1765 RPM | Totally Enclosed Fan Cooled | - | - | - | €5,471.52 | |
|
EJMM2394T | 230/460V | 15 hp | 1 1/4" | 3520 RPM | Totally Enclosed Fan Cooled | 3001-3600 RPM | General Application | Rigid Base | €6,676.58 | |
 |
EJMM2506T | 230/460V | 7 1/2 hp | 1 3/8" | 1180 RPM | Open Slotted Band | 1100-1200 RPM | - | - | €3,823.44 | |
|
EJMM2511T | 230/460V | 10 hp | 1 3/8" | 1180 RPM | Open Slotted Band | 1100-1200 RPM | - | - | €4,640.37 | |
 |

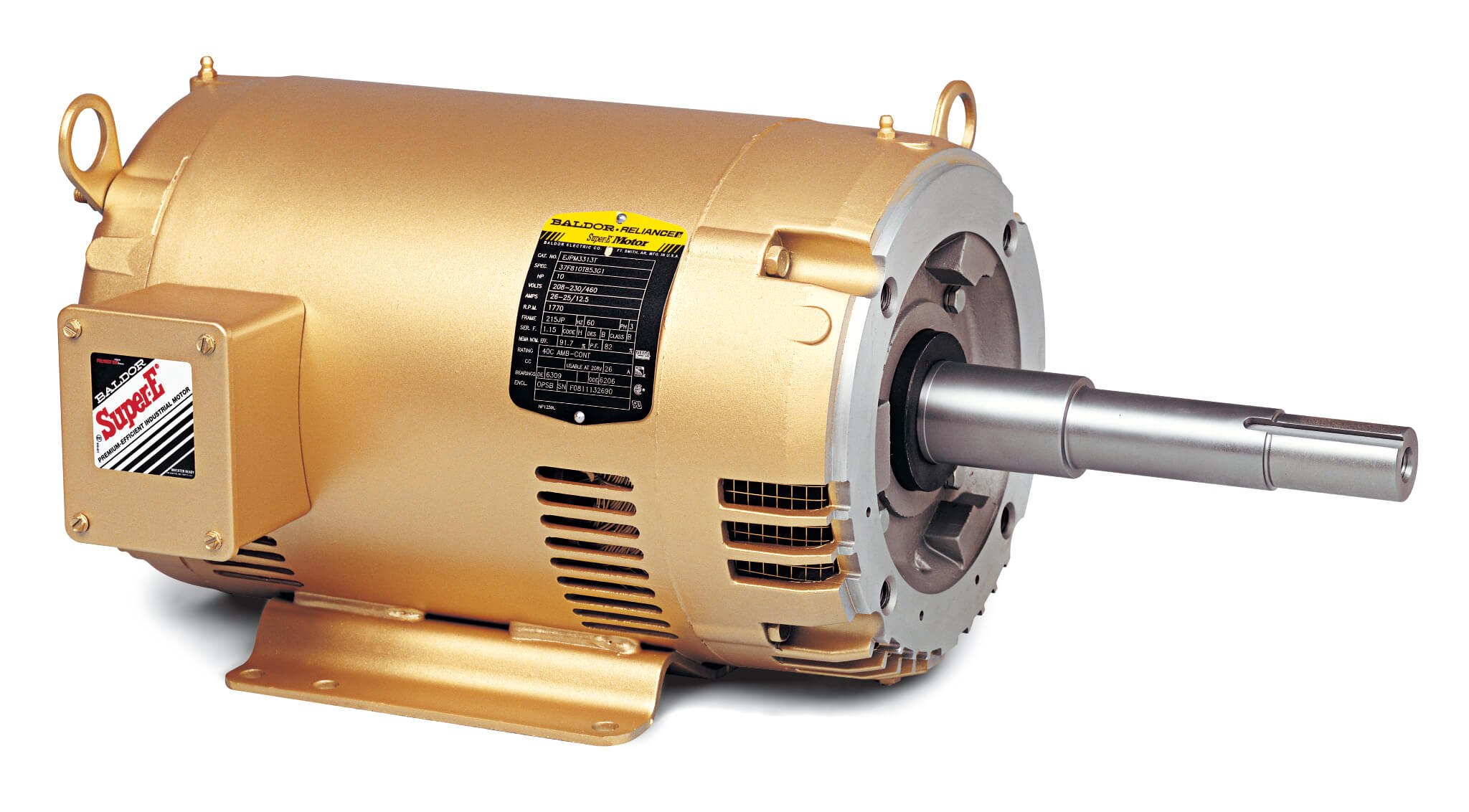

EJMM2513T | 230/460V | 15 hp | 1 3/8" | 1770 RPM | Open Dripproof | 1701-1800 RPM | General Application | Rigid Base | €5,165.27 | |
|
EJMM2514T | 230/460V | 20 hp | 1 3/8" | 3510 RPM | Open Slotted Band | - | - | - | €4,353.53 |
