BALDOR MOTOR EHM4100T General Purpose HVAC Motor, 230/460V, 1200 RPM, 15 hp, 3 Phase, TEFC, 284T Frame
Get it by Tuesday, Dec 23
€6,101.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps | 42A @ 208V, 42A @ 230V, 21A @ 460V |
| Amps @ Voltage | 21A @ 460V, 42A @ 208V, 42A @ 230V |
| Amps @ Volts | 42A @ 208V, 42A @ 230V, 21A @ 460V |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Bearing Type | Ball |
| Break-down Torque | 195 lbs.-ft. |
| Conduit Box Material | Cast Iron |
| Conduit Box Position | F1 |
| Design Code | A |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 91.7% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TEFC |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Feedback Device | NO FEEDBACK |
| Frame | 284T |
| Frame Material | Iron |
| Frame Size | 284T |
| Frequency | 60 Hz |
| Front Face Code | Standard |
| Full Load Amps | 21A |
| Full Load Torque | 0 LB-FT |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 21A |
| Hp | 15 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Kva Code | H |
| Length | 27 3/4" |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 9 @ 10 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | 1046M |
| Mounting Type | Foot Mounted |
| Nema/iec | NEMA |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Output @ Frequency | 15 hp @ 60 Hz |
| Overall Length | 27.76" |
| Phase | 3 |
| Power Factor | 73 |
| Product Datasheet | baldor-motor-ehm4100t.pdf |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rpm | 1175 RPM |
| Rpm Range | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 7/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | Mounting Provisions Only |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed Type | 1 |
| Start Type | Direct On Line |
| Synchronous Rpm | 1200 RPM |
| Synchronous Rpm @ Frequency | 1200 RPM @ 60 Hz |
| Synchronous Speed | 1200 RPM |
| Thermal Protection | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 230/460V |
| Voltage @ Frequency | 460V @ 60 Hz, 230V @ 60 Hz |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 180 |
| Ship height (cm) | 49.85 |
| Ship length (cm) | 78.74 |
| Ship width (cm) | 60.33 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 91.70%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Not inverter
- KVA Code: H
- Lifting Lugs: Standard Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 9 @ 10 AWG
- No-Load Current: 0 A
- Product Family: General Purpose
- Pull-Up Torque: 91.4 LB-FT
- Pulley End Bearing Type: Ball
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 1.875 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: Mounting Provisions Only
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Starting Current: 125 A
- Temp. Rise @ Rated Load: 49 deg C
- Temp. Rise @ S.F. Load: 59 deg C
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Rpm Range | Nameplate Rpm | Motor Enclosure Design | Motor Application | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

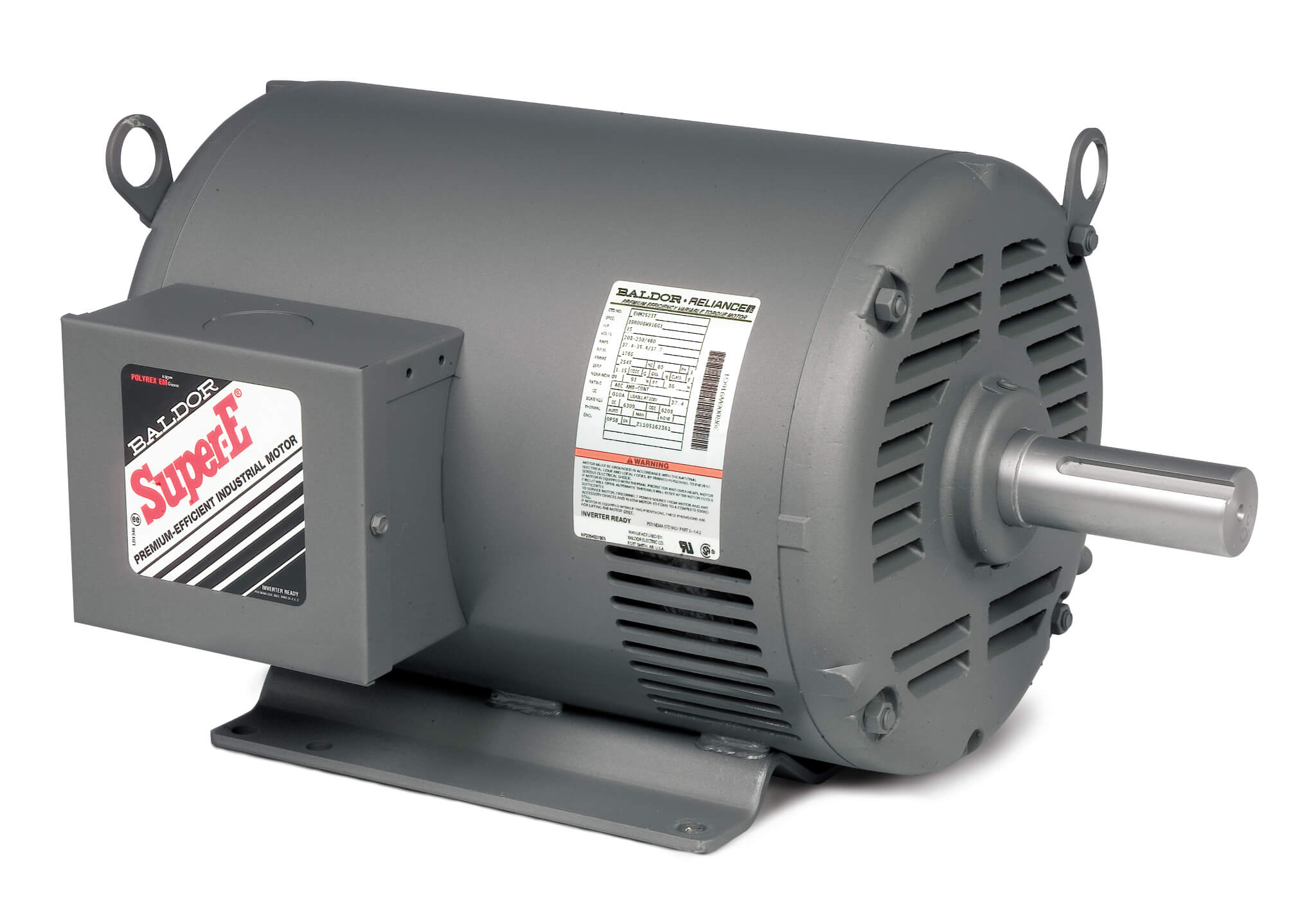

EHM2276T | 230/460V | 7 1/2 hp | 254T | 1100-1200 RPM | - | - | - | - | €4,026.00 | |
 |
EHM2332T | 230/460V | 10 hp | 256T | 1100-1200 RPM | - | - | - | - | €4,587.36 | |
|
EHM2333T | 208-230/460V | 15 hp | 254T | - | - | - | - | - | €3,227.06 | |
|
EHM2334T | 208-230/460V | 20 hp | 256T | - | - | - | - | - | €3,902.95 | |
|
EHM2506T | 230/460V | 7 1/2 hp | 254T | 1100-1200 RPM | - | - | - | - | €2,764.15 | |
|
EHM2511T | 230/460V | 10 hp | 256T | 1100-1200 RPM | - | - | - | - | €3,580.15 | |
|
EHM2515T | 230/460V | 20 hp | 256T | - | - | - | - | - | €3,613.29 |
