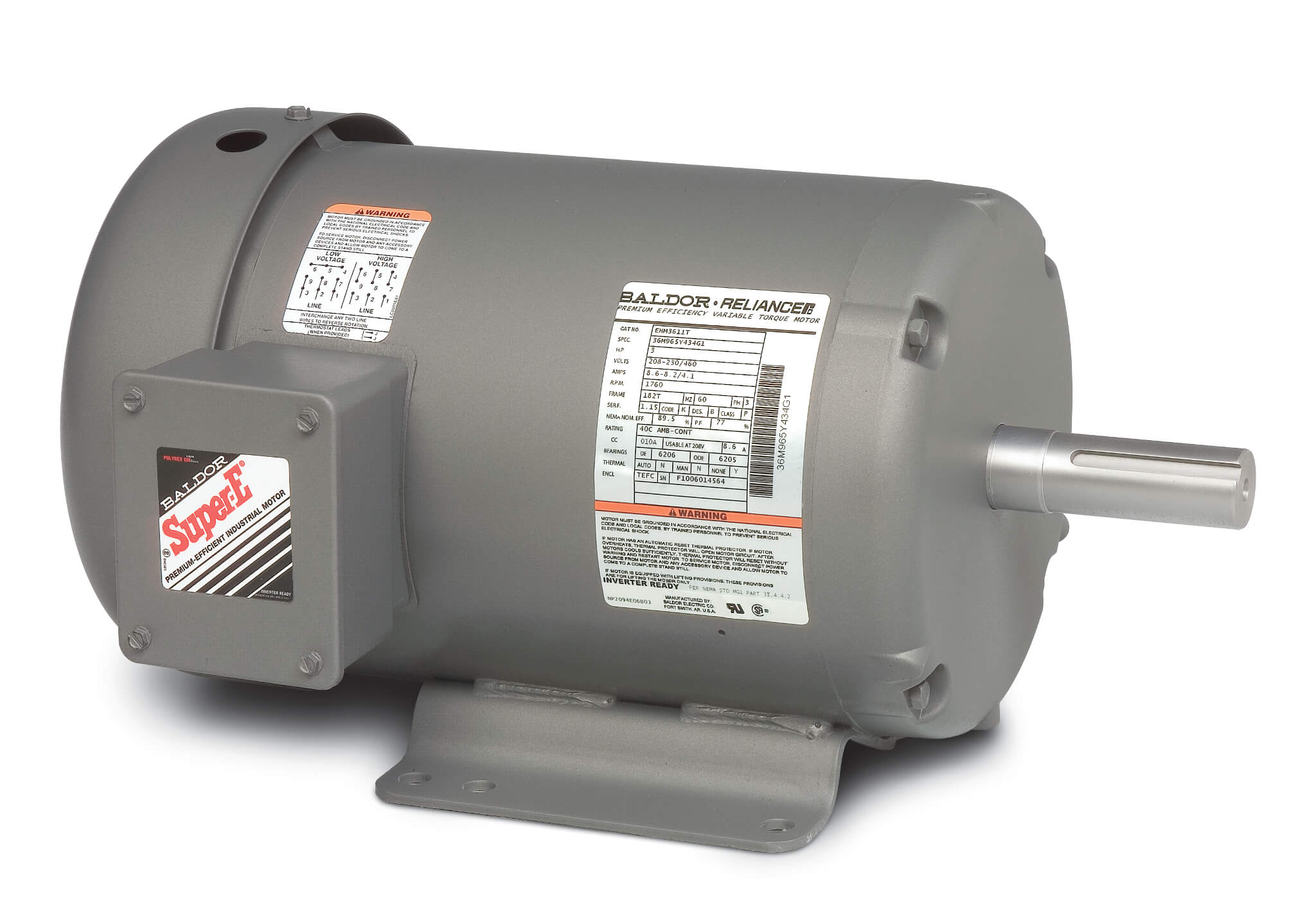

BALDOR MOTOR EHM3710T General Purpose HVAC Motor, 230/460V, 1800 RPM, 7.5 hp, 3 Phase, TEFC, 213T Frame
Get it by Thursday, Dec 18
10.00% off
€2,577.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 21-18.8/9.4A |
| Amps @ 208v | 21A |
| Auto | No |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Break-down Torque | 69.4 lbs.-ft. |
| Cc Number | CC010A |
| Class | Stock |
| Code | J |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | A |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Enclosure Design | TEFC |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 213T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 19/2/9.5A |
| Full Load Torque | 22.25 ft.-lbs. |
| Full Load Torque | 22.25 lbs.-ft. |
| Hp | 7 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Inverter Rated | Yes |
| Lead | 9#14 |
| Length | 19" |
| Length Less Shaft | 15 5/8" |
| Line-line Res. @ 25° C | 1.36 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 42.1 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Sealed |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Standard |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Type | 3736M |
| Mounting Type | Rigid Base |
| Multiplier | LS |
| Nameplate Rpm | 1770 RPM |
| Nema Design | A |
| Nema/iec | NEMA |
| No Load Amps | 4.46A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Overall Length | 19", 19.01" |
| Part Winding Start Capable | No |
| Phase | 3 |
| Power Factor | 80 |
| Product Datasheet | baldor-motor-ehm3710t.pdf |
| Proprietary | No |
| Pull-up Torque | 33.4 lbs.-ft. |
| Pulley Face Code | Standard |
| Removable Base | Regreasable Bearings |
| Revision | F |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 3 3/8" |
| Shaft Rotation | Reversible |
| Shaft Type | Standard |
| Start Configuration | DOL |
| Starting Amps | 71.6A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 65°C |
| Temp. Rise @ Rated Load | 53°C |
| Temp. Rise @ S. F. Load | 65°C |
| Thermal Protection | None |
| Type | 3736M |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 57.6 |
| Ship height (cm) | 44.13 |
| Ship length (cm) | 66.99 |
| Ship width (cm) | 41.91 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 42.1 LB-FT
- Nameplate No.: NP2094E06B03
- Pull-Up Torque: 33.4 LB-FT
- Starting Current: 71.6 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Rpm Range | Nameplate Rpm | Motor Enclosure Design | Motor Application | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EHM2276T | 230/460V | 7 1/2 hp | 254T | 1100-1200 RPM | - | - | - | - | €4,026.00 | |
 |
EHM2332T | 230/460V | 10 hp | 256T | 1100-1200 RPM | - | - | - | - | €4,587.36 | |
 |
EHM2333T | 208-230/460V | 15 hp | 254T | - | - | - | - | - | €3,227.06 | |
|
EHM2334T | 208-230/460V | 20 hp | 256T | - | - | - | - | - | €3,902.95 | |
|
EHM2506T | 230/460V | 7 1/2 hp | 254T | 1100-1200 RPM | - | - | - | - | €2,764.15 | |
|
EHM2511T | 230/460V | 10 hp | 256T | 1100-1200 RPM | - | - | - | - | €3,580.15 | |
|
EHM2515T | 230/460V | 20 hp | 256T | - | - | - | - | - | €3,613.29 |
