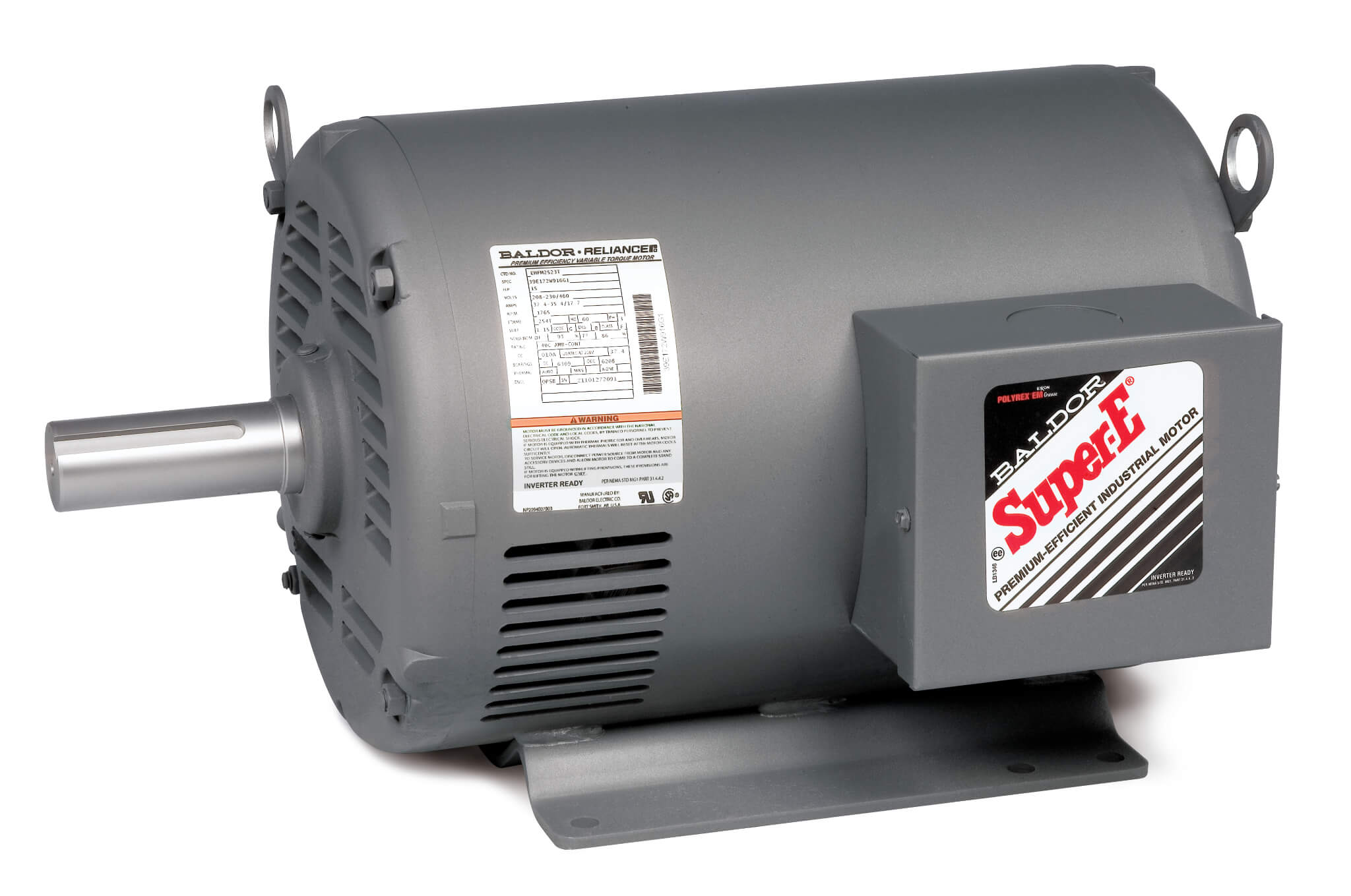

BALDOR MOTOR EHFM3313T General Purpose HVAC Motor, 230/460V, 1800 RPM, 10 hp, 3 Phase, ODP, 215T Frame
Get it by Friday, Dec 19
€2,306.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 26-25/12.5A |
| Amps @ 208v | 26A |
| Auto | No |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Break-down Torque | 86.2 lbs.-ft. |
| Class | Stock |
| Code | H |
| Conduit Box Material | Steel |
| Conduit Box Position | F2 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | OPSB |
| Enclosure Type | Open Slotted Band |
| Frame | 215T |
| Frame Material | Steel |
| Frame Size | 215T |
| Frequency | 60 Hz |
| Full Load Amps | 26-25/12.5A |
| Full Load Torque | 29.7 lbs.-ft. |
| Full Load Torque | 29.7 ft.-lbs. |
| Hp | 10 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Lead | 9#14 |
| Line-line Res. @ 25° C | 1.18 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 51.6 lbs.-ft. |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | 3739M |
| Mounting Type | Foot Mounted |
| Multiplier | LS |
| Nema/iec | NEMA |
| No Load Amps | 5.51A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Overall Length | 17.45" |
| Phase | 3 |
| Power Factor | 82 |
| Product Datasheet | baldor-motor-ehfm3313t.pdf |
| Proprietary | No |
| Pull-up Torque | 46.2 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | J |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 88.3A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 42°C |
| Temp. Rise @ Rated Load | 34°C |
| Temp. Rise @ S. F. Load | 42°C |
| Thermal Protection | None |
| Type | 3739M |
| Voltage | 208-230/460V |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 57.15 |
| Ship height (cm) | 44.13 |
| Ship length (cm) | 66.99 |
| Ship width (cm) | 41.91 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 51.6 LB-FT
- Nameplate No.: NP2094E06B03
- Pull-Up Torque: 46.2 LB-FT
- Starting Current: 88.3 Amps
Documentation:
Product Variants
| Model | Voltage | Hp | Frame | Shaft Dia. | Power Factor | Break-down Torque | Amps | Revision | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EHFM2515T | 230/460V | 20 hp | 256T | 1 5/8" | 85 | 203 lbs.-ft. | 47/23.5A | L | €3,613.29 | |
| EHFM2523T | 208-230/460V | 15 hp | 254T | 1 5/8" | 83 | 171 lbs.-ft. | 37.4-35.4/17.7A | N | €2,888.17 | |
| EHFM2531T | 230/460V | 25 hp | 284T | 1 7/8" | 82 | 216 lbs.-ft. | 60/30A | B | €4,396.13 | |
| EHFM2535T | 230/460V | 30 hp | 286T | 1 7/8" | 80 | 272 lbs.-ft. | 70/35A | M | €4,804.14 | |
| EHFM2539T | 230/460V | 40 hp | 324T | 2 1/8" | 82 | 427 lbs.-ft. | 98/49A | N | €6,252.48 | |
| EHFM2543T | 230/460V | 50 hp | - | 2 1/8" | 87 | 420 lbs.-ft. | 114/57A | N | €7,669.59 | |
| EHFM3157T | 208-230/460V | 2 hp | 145T | 7/8" | 76 | 21 lbs.-ft. | 5.7-5.4/2.7A | E | €1,005.32 |
